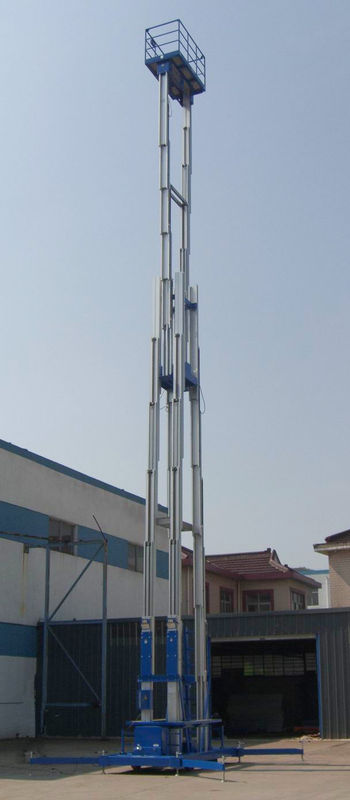

AC / DC Power Electric Mobile Hydraulic Lifting Platform for Station , Airport
Descrition:
This newly designed product is made of the high strength aluminum alloy which minimum the deviation and swing of the lifting platform. As light as it is, it can display its best lifting capability in a limited space to facilitate the single aerial work.
Application: used in factory, hotel, mansion, store, station, airport, stadium, etc.
Main Usages: for aerial work such as the installation and maintenance for electric networks, lighting equipments, overhead pipelines and the single work for aerial cleaning
Power options; AC 220V (standard configuration), AC 380V power supply, DC power supply and manual pump.
-rigid aluminum alloy mast
-light total weight, ease of movement
-only one person needed to operate it
-idler pulley installed between masts, which guarantees a stable raise and lower
-compact lifting mechanism, handy for all narrow corners, within a workplace
-dual protection supporting structure makes it solid and safe while in operation
Specifications:
Product |
Model |
Max height of platform |
Maximum operating altitude platform |
Rated |
Lifting time |
Power |
Power |
Quality |
Dimensions |
Mobile lifting platform aluminum alloy |
GTWY4-100 |
4 |
5.7 |
125 |
0.51*0.55 |
AC220/50HZ |
0.75 |
185 |
1.05*0.88*1.70 |
GTWY6-100 |
6 |
7.7 |
125 |
0.65*0.61 |
AC220/50HZ |
0.75 |
210 |
1.20*0.88*1.70 |
|
GTWY8-100 |
8 |
9.7 |
125 |
0.65*0.61 |
AC220/50HZ |
0.75 |
220 |
1.20*0.88*1.98 |
|
Mobile lifting platform aluminum alloy |
GTWY6-200S |
6 |
7.7 |
200 |
1.36*0.61 |
AC220/50HZ |
1.5 |
320 |
1.48*0.9*2.06 |
GTWY7-200S |
7 |
8.7 |
200 |
1.36*0.60 |
AC220/50HZ |
1.5 |
335 |
1.48*0.9*2.06 |
|
GTWY8-200S |
8 |
9.7 |
200 |
1.36*0.60 |
AC220/50HZ |
1.5 |
385 |
1.48*0.9*2.06 |
|
GTWY9-200S |
9 |
10.7 |
200 |
1.36*0.60 |
AC220/50HZ |
1.5 |
450 |
1.48*0.9*2.06 |
|
GTWY10-200S |
10 |
11.7 |
200 |
1.36*0.60 |
AC220/50HZ |
1.5 |
490 |
1.48*0.9*2.06 |
|
GTWY12-200S |
12 |
13.7 |
200 |
1.46*0.60 |
AC220/50HZ |
1.5 |
560 |
1.58*0.9*2.06 |
|
Mobile lifting platform aluminum alloy |
GTWY13-250S |
13 |
14.7 |
250 |
1.56*0.80 |
AC220/50HZ |
1.5 |
920 |
1.69*1.13*2.48 |
GTWY14-250S |
14 |
15.7 |
250 |
1.56*0.80 |
AC220/50HZ |
1.5 |
980 |
1.69*1.13*2.48 |
|
Mobile lifting platform aluminum alloy |
GTWY16-160 |
16 |
17.7 |
150 |
1.48*0.80 |
AC220/50HZ |
1.5/ 0.75 |
1400 |
2.26*1.2*2.08 |
GTWY18-160 |
18 |
19.7 |
150 |
1.48*0.80 |
AC220/50HZ |
1.5/ 0.75 |
1500 |
2.26*1.2*2.18 |
