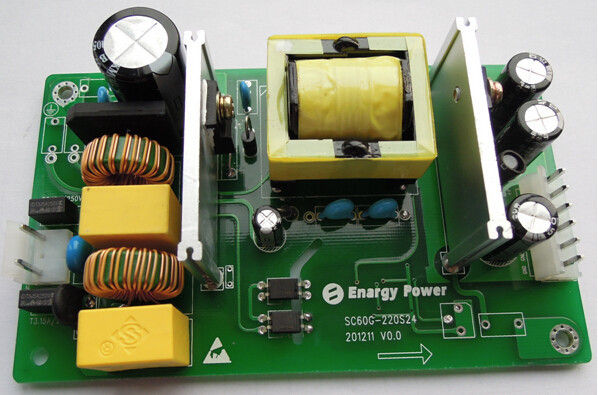

Input 90 ~ 264V ac Medical Power Supply Converter Output 24V DC / 2.5A SC60G-220S24

Input 90 ~ 264V ac Medical Power Supply Converter Output 24V DC / 2.5A SC60G-220S24

Input 90 ~ 264V ac Medical Power Supply Converter Output 24V DC / 2.5A SC60G-220S24

Product Details:

Place of Origin: China
Brand Name: Enargy
Model Number: SC60G-220S24

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiation
Delivery Time: 1-8 Weeks
Payment Terms: Negotiation
Supply Ability: 15000Pcs/week
Contact Now
Detailed Product Description

Medical Power Supply 60W Output 24VDC/2.5A SC60D-220S24A





Key Features

AC input range: 90~264Vac

Single outputs: 24V/2.5

High efficiency: 86%

Line regulation: ≤±1%

Load regulation: ≤±1%

Low ripple&noise:150mV

Isolation voltage: 4000Vac

No minimum load requirement

Frequency dithering function

short circuit protection

Output over current protection

Output over voltage protection

Natural cool

RoHS compliant

UL94V-0 flame-retarded rating



Product Overview

This AC-DC converter use advanced power processing, control and packaging technologies to provide the performance, flexibility, reliability and cost effectiveness of a mature power component. High frequency switching provides high power density with low noise and high efficiency.



Electric Characteristics

Input Characteristics

Parameter

Min

Typ

Max

Units

Notes

Rated input voltage

100

220

240

Vac



AC input voltage range

90

220

264

Vac



AC input frequency range

45



63

Hz



Max. input current





2

A

Min. input voltage, full load

Input inrush current





60

A

Max. input voltage,25℃, first start

Efficiency



86



%

Rated input voltage, rated load

Turn-on delay time





1.5

S

220VAC input,full load

Turn-0ff  hold time

10





ms

110VAC input,full load

Dissipation





0.6

W

No load



Output Characteristics

Parameter

Min

Typ

Max

Units

Notes

Output voltage range

23.52

24

24.48

Vdc



Output current range





2.5

A

220VAC input,6A for 1 second

Line Regulation



±1



%



Load Regulation



±1



%



Ripple & noise





150

mV

Rated input, full load, 20 MHz bandwidth

Dynamic response

Deviation





200

mV

50% to 75% to 50% Iout max,0.1A/us

Settling time





200

uS

To within 1% Vout nom.

Turn-on rise time





50

ms

Full load,10%~90% Vout

Output voltage overshoot





±5

%



Output Capacitance





2200

μF

Load mode:CR



Protection Characteristics

Parameter

Min

Typ

Max

Units

Notes

Output over voltage protection

110

120

130

%

Lock-out,required to restart

Output over load protection

3



5

A

Hiccup

Short – Circuit Protection





10

Hiccup



General Characteristics

Parameter

Min

Typ

Max

Units

Notes

MTBF

50





KHrs

Rated input, full load,25℃

Weight





160

g





Environmental Characteristics

Parameter

Min

Typ

Max

Units

Notes

Operating temperature

0



+70

Figures1

Storage temperature

-40



+85



Relative humidity

10



90

%RH



Altitude





3000

m





Safety Characteristics

Parameter

Min

Typ

Max

Units

Notes

Isolation voltage

Input to output

4000





Vac

5mA/1min, No arcing and breakdown

Isolation resistance

Input to output



100



500Vdc/1min, normal atmospheric pressure, 90% humidity



Environmental Qualification

Parameter

Notes

Vibration

Conforms to MIL-STD-810E,Method 516.5,Pro I,IV,VI;

EN60068-2-6,IEC68-2-6

Mechanical Shock

Conforms to MIL-STD-810E/F, Method514.4,

EN60068-2-27,EN60068-2-47,IEC68-2-47,JIS C0041-1987

Solder ability

IEC60068-2-20



EMC Characteristics

Item

Standards

Conditions

Notes

CE

EN55022

Class A

Pass system test

RE

EN55022

Class A

Pass system test

Voltage fluctuations and flicker

EN61000-3-3

Class A equipments requirements

Criterion B

Notes:

Input 90 ~ 264V ac Medical Power Supply Converter Output 24V DC / 2.5A SC60G-220S24

Figure 1: Output power VS Ambient air temperature



Standards compliance

Standards

Notes

UL60950-1



EN60950-1



EN60601-1



SCA 22.2NO.601.1



UL2601
