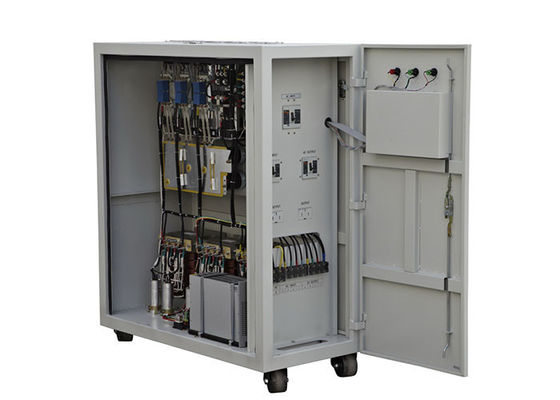

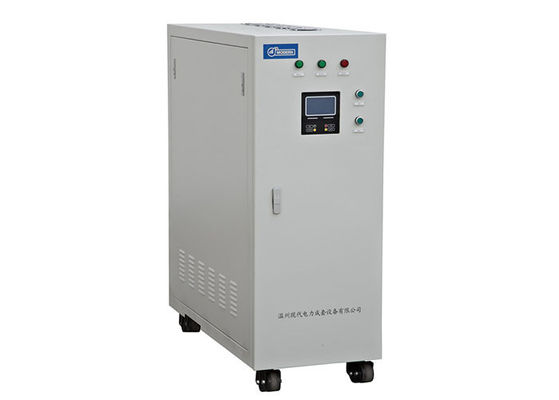

10KVA 220V UPS Online Uninterruptible Power Supply With DSP Digital Control

10KVA 220V UPS Online Uninterruptible Power Supply With DSP Digital Control

  • 10KVA 220V UPS Online Uninterruptible Power Supply With DSP Digital Control
  • 10KVA 220V UPS Online Uninterruptible Power Supply With DSP Digital Control
  • 10KVA 220V UPS Online Uninterruptible Power Supply With DSP Digital Control
  • 10KVA 220V UPS Online Uninterruptible Power Supply With DSP Digital Control
10KVA 220V UPS Online Uninterruptible Power Supply With DSP Digital Control
Product Details:
Place of Origin: China
Brand Name: Modern
Certification: ISO 9001
Model Number: BUD
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: Wooden Packing
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 1000 unit/month
Contact Now
Detailed Product Description
High Light:

industrial uninterruptible power supply

,

uninterruptible power supply ups systems

10KVA 220V Uninterruptible Power Supply (Online type UPS)



Quick Detail:



Online Type UPS-5KVA to 200KVA

Dimension(W×D×H)mm: 550×485×200

Weight: 200kg





Description:



In the event of an AC power failure, the UPS will automatically transfer to battery power and continue to provide power without any interruption for the full amount of time you select. When power returns, the UPS will automatically recharge the batteries for the next unexpected power outage or disturbance.

MODERN BUD Series Industrial UPS are for the bad grid environment and the impact of power system load on the power requirements of high reliability, using the most advanced multi-CPU control technology developed by frequency pure-line intelligent UPS. MODERN UPS advantage lies in ultra-high-power design; single maximum power 750kVA, and in parallel multi-machine power up to 3000kVA, providing critical power protection for a range of applications.









Applications:



  • Computer and data centers
  • Broadcasting and telecommunication
  • Industrial process manufacturing
  • Medical equipment and healthcare facilities
  • Education and research
  • Transport systems
  • Emergency lighting systems
  • Financial systems and services
  • Any areas needing critical power management







Specifications:





Model

BUD220

-3050

BUD220

-3100

BUD220

-3150

BUD220

-3300

BUD220

-3500

BUD220

-31000

BUD220

-32000

DC Input Rated Input Voltage (V) 220
Rated Input Current (A) 25.3 49.4 74 148 247 494 988
Input DC Voltage Range (V) 180 ~ 300
AC Input Rating Input Voltage (V) 220 ( Single-phase ) 380 (3 phase 4 wires)
Voltage Range (V) 220 ± 15% 380 ± 15%
Input Frequency (Hz) 45 ~ 60
Power Factor (PF) 0.9
Bypass Input Input Voltage Range (V) 380 ± 15% (3 phase 4 wires)
Rated Input Current (A) 7.6 15.2 22.8 45.6 76 152 304
AC Output Rated Capacity (KVA) 5 10 15 30 50 100 200
Rated Output Power (KW) 4 8 12 24 40 80 160
Rated Output Voltage 380VAC , 50Hz (3 phase 4 wires)
Rated Output Current (A) 7.6 15.2 22.8 45.6 76 152 304
Output Voltage Accuracy (V) 380 ± 3%
Output Frequency Accuracy (Hz) 50 ± 0.05
Waveform Deviation Factor
(THD) - Liner Load
≤ 5%
Three-Phase load Unbalance Ability ≤ 100%
Dynamic Response
( load 0 ←→ 100%)
5%
Power Factor (PF) 0.8
Load ability 150%,10 seconds
Crest Factor (CF) 3:1
Inverted Efficiency
(80% resistance load )
92%
Switch Time
(ms)
AC ⇋ DC 0



Inverter ⇋ Bypass
4
Working Environment Insulation Strength 2000V AC ,1 minute
Noise (1 meter) ≤ 50dB
Using Condition Temperature -10 ℃ ~+ 50 ℃
Humidity 0~90%, no condensing
Using Altitude (m) ≤ 2000
Machine Dimension Width×Depth×Height(mm) 550×485×1200 800×600×2260
(1 or 2 cabinet)
1000×800 × 2260
(1 or 2 cabinet)
Reference Weight (Kg) 90 200 250 450 620 950 2300
Fault dry contact

Inverter abnormal,AC abnormal,battry abnormal,

load abnormal,UPS abnormal

Protection function

Input reversing protection,input low-voltage protection,

output over-load protection,output short-circuit protection,

over-heat protection









Competitive Advantage:

  • Adopt power standard screen tank design
  • High output power factor diminishes need for UPS over sizing
  • Constant high efficiency at full and partial load
  • Extremely low output distortion
  • Best in class for variable load applications
  • Galvanic isolation which provide additional critical power protection
  • Municipal electric power supply with DC inverter power 0 conversion delay
  • Adopt DSP digital control technology intelligent detection and monitoring function
  • High-speed IGBT drive inverter
  • No fountain contact and RS232/485 monitoring
