Product Details:
Place of Origin: CHINA
Brand Name: EMITTRON
Certification: CE,ROHS
Model Number: SMDA-1018-PF
Payment & Shipping Terms:
Minimum Order Quantity: 200pcs/Carton
Packaging Details: 1250*240*240mm 8kg 25pcs/ctn
Delivery Time: 5-10 days
Payment Terms: T/T,Paypal,Western Union,L/C
Supply Ability: 100000PCS/Month
Contact Now
Detailed Product Description
Features: High PF, High Efficiency, High Voltage Start, Isolated Power Supply Application: LED Lighting
Certification: CE, RoHS Input Frequency: 47Hz - 63Hz
Input Voltage: 85V - 265V AC Maximum Current: 0.8A
Output Power: 10W - 18W Output Voltage: 20V - 40V DC
Power Factor: 0.95 Product Name: Constant Current LED Driver
High Light:

led constant current drivers

,

constant current power supply

LED Power Supply 18 Watt Constant Current LED Driver 85V - 265V AC , CE RoHS

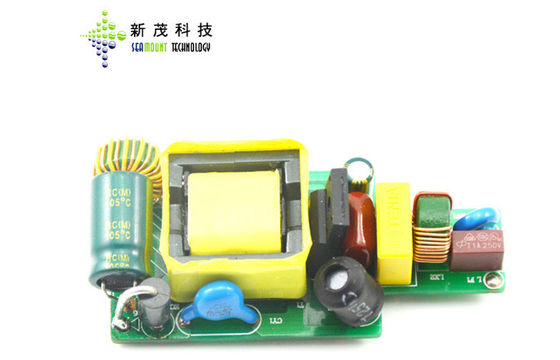

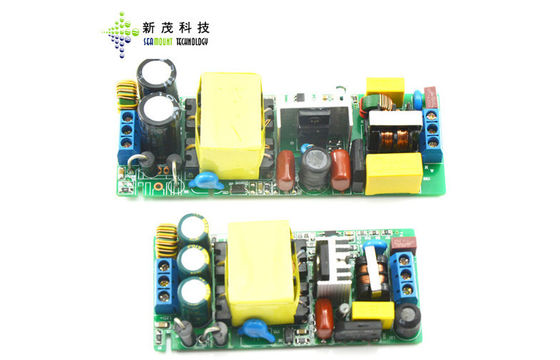

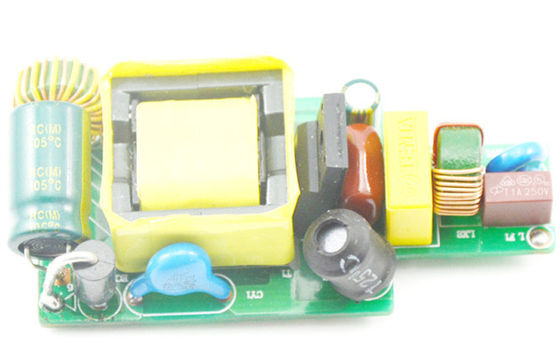

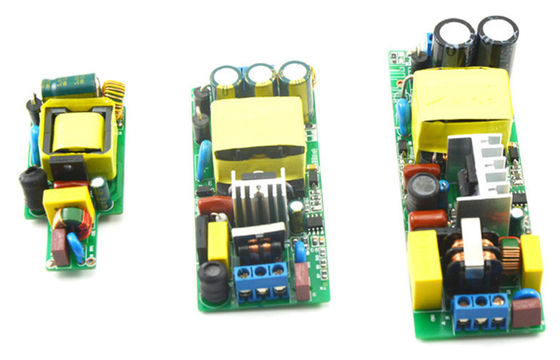

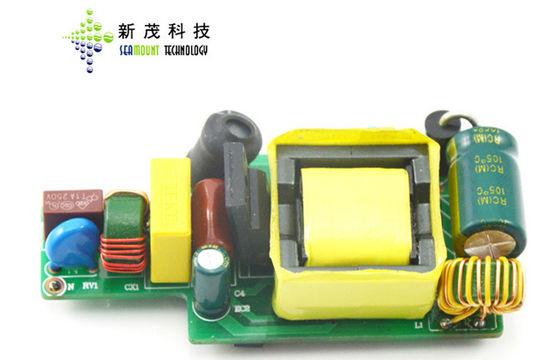

10-18W isolation type constant current LED driver

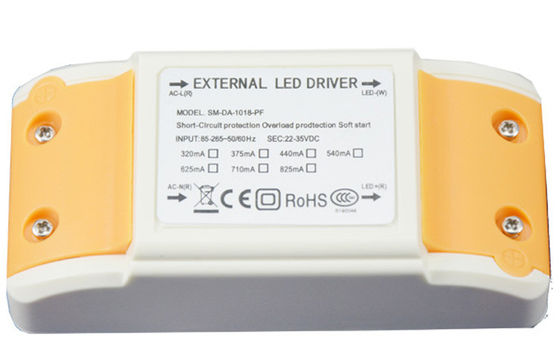

  • Part Number: SMDA-1018-PF
  • Brand Name:SEAMOUNT
  • Product description:10-18W isolation type constant current LED driver power supply
  • Output power: 10-18W
  • Input voltage: 85 ~ 265V AC
  • Input frequency: 47 hz ~ 63 hz
  • Power factor>0.95
  • Output voltage: 20 ~ 40 VDC
  • Maximum current: 0.8 A
  • Maximum output power: 18 w
  • Conversion efficiency> 85%
  • Constant current precision:±3%
  • Ripple and noise (P - P) ≤5%
  • Temperature coefficient: ±0.2%/℃




Product features:



  • High voltage start, no delay, no flicker
  • Low ripple, start quickly, high PF, high efficiency
  • Over temperature protection, over-voltage protection, overload protection, short circuit protection
  • Isolated power supply, safe and reliable, Two years warranty
  • CE, RoHS certification





Electrical properties:



Input voltage:

85 ~ 265V AC

Input frequency:

47 hz ~ 63 hz

Power factor

>0.95

Output voltage:

20 ~ 40 VDC

Maximum current:

0.8 A

Maximum output power:

18 w

Conversion efficiency

> 85%

Constant current precision:

±3%

Ripple and noise (P - P)

≤5%

Temperature coefficient:

±0.2%/℃



Protection features:



  • Output no-load voltage≤60V
  • Short circuit protection
  • Over temperature protection
  • Over voltage protection
  • Overload protection


Electromagnetic interference:



  • Conducted interference degree: EN55015, CLASS B
  • Radiated interference degree: EN55015, CLASS B


Environmental conditions:



  • Working temperature: 10 ℃ ~ + 45 ℃ typical values (25 ℃)
  • Storage temperature: -20℃~+70℃ typical values (25 ℃)
  • Relative humidity: 5~95%
  • Atmospheric pressure: 70-106 KPa


Certification&life:

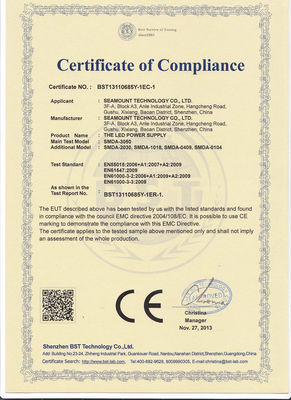

  • EMC:BST13110685Y-1EC-1

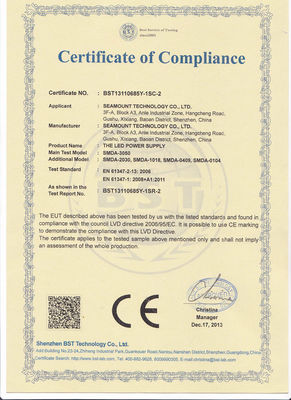

  • LVD:BST13110685Y-1SC-2

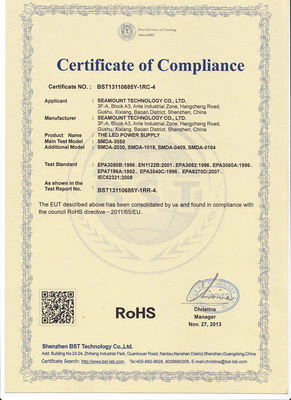

  • RoHS:BST13110685Y-1RC-4
  • Life: 50,000 hours long life design


Product packaging/size /weight/ quantity:

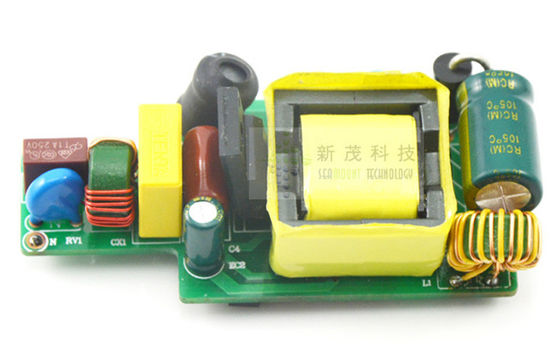

  • Driver size/weight: 30 mm * 63 mm * 23 mm

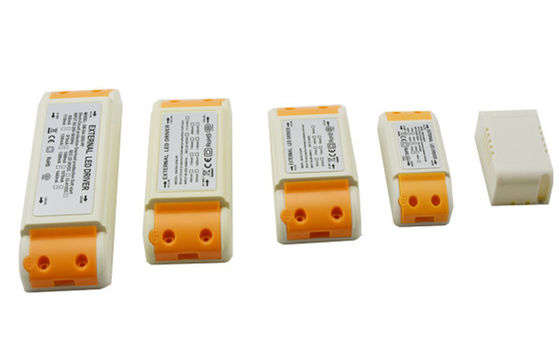

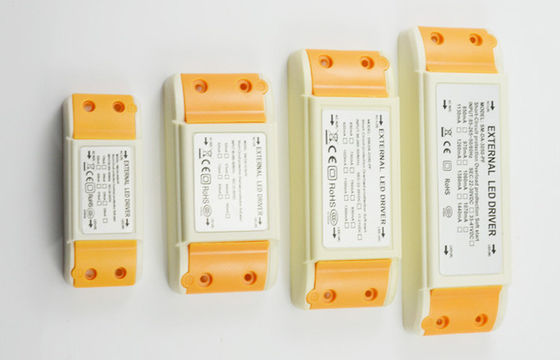

  • External driver size/weight: 45 mm * 94 mm * 28 mm
  • Driver packing size/weight/quantity:
  • External driver packing size/weight/quantity:



Application:



  • Widely used in 10-18W LED Lighting.
