Name: 3 x 10w LED Street Light Module Retrofit Kits With Constant Current Led Driver
Brand: Sunshineopto
SKU: SUN-LD250X74ED
Price: 1.00 USD
Availability: InStock
Rating: 4.9 (197 reviews)

Home Products Constant Current Led Driver

3 x 10w LED Street Light Module Retrofit Kits With Constant Current Led Driver

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	Sunshineopto
Certification:	ROHS
Model Number:	SUN-LD250X74ED

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Negotiation
Packaging Details:	1pc/bag 1kg
Delivery Time:	3-4 working days
Payment Terms:	T/T,PAYPAL,Western Union,Money Gram
Supply Ability:	5000pcs/months

Contact Now

Detailed Product Description

Product Name:	3 X 10w LED Street Light Module Retrofit Kits With Constant Current Led Driver	Material:	PC
Lens Size:	250X74mm	Beam Angle:	65x120degree
Match Led:	Luexon ,Edison K2 ,P4	PCB Size:	228x53mm
PCB Circuit:	10 Series 3 Parallel	Heat Sink Size:	278x74x54mm
High Light:	led lighting module , led street light fixtures

3 x 10w LED Street Light Module Retrofit Kits With Constant Current Led Driver

Quick Detail:

1.Model No:SUN-LD250X74ED

2.Material: PC

3.Beam Angle :65X120 degree

4.Lens size:250X74mm

5.Led chips:Luexon ,Edison K2 ,P4

6.Lense array of 30 LEDs

7.PCB size: 228x53mm

8.Heat sink size:278x74x54mm

9.Thickness for heat sink:8mm

10.Circuit: 10 series 3 parallel

Features :

This SKD 3x10 LED Array lens with PCB Module is best choice to retrofit the old lamps 100W or design power lamps like 30W,60W,90W and so on .
It’s the lowest total cost solution ,they can replace existing Metal Halide or HPS bulbs, the old housings can be re-used. The total cost is significantly reduced compared with using new complete LED fixtures.
Optic lenses are available for projects that need smaller beam angles, like 70x126°, 140x70°,120x60°, 90x126°,60x60° etc.
The LED retrofit kits contain no any mercury or lead.
Industry-leading thermal management utilizing technology
Operating temperature range: from 35 Celsius degree to 70 Celsius degree.
Does not produce UV rays that harm people’s eyes.
Directional light means no light pollution, dark sky compliance

Applications:

It is used in the street light ,high way led lamp,tunnel lamp ,square lamp,road lamp, city lighting, parking spot lamp, track lighting fixtures ,scenery area ,retail lighting and other applications where high luminous flux is desired.

Specifications:

1, Product Name	3x10w LED Street Light Module Retrofit Kits With Constant Current Led Driver
2, Model No	SUN-LD250X74ED
3, Main parts	30W Array lens , silicon gasket , aluminium PCB with LEDs, heat sink ,screws
4, Lens Material	PC
5, Lens size	228X74mm
6, Transmittance	91%
7,LEDS	Edison,P4
8, Sample	3-4 work day
9, Delivery	7-10 work days for 100 sets
10, Angle	65x120 degree
11, Quality guarantee	If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund.
12, Main market	Europe, South America,North America, Asia

Shipping and delivery time:

DHL/UPS/TNT/FEDEX	4-5 working days
EMS	10-15 working days
HK Post Air Mail Register	15-18 working days
Trade Terms	FOB\|EXW\|CIF\|CFR
Sample availability	YES
Delivery time	3-4 working days

Competitive Advantage:

Advantages of SKD 10x3 LED module :

1). Using high quality for Edison,P4

2). CE driver, very easy for repair/replacement
3). Various choice : AC 100-240V Input voltage Waterproof or non-waterproof
4). Higher lumen compared to similar models of others
5). Positive cooling technology
6). Reduce energy costs up to 90% compared to traditional lamps, reduce maintenance costs up to 90%, almost free of maintenance
7). Industry-leading thermal management utilizing technology
8). Top quality with warranty of 2 years warranty
9). LM80 testing reports available
10). All models are simply installed by E26/E39/E40 mounting brackets.

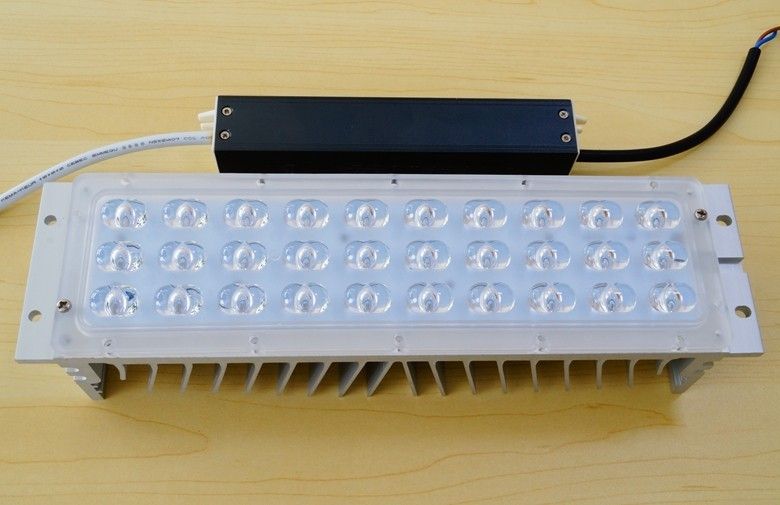

Product Picture:

3 x 10w LED Street Light Module Retrofit Kits With Constant Current Led Driver 0
