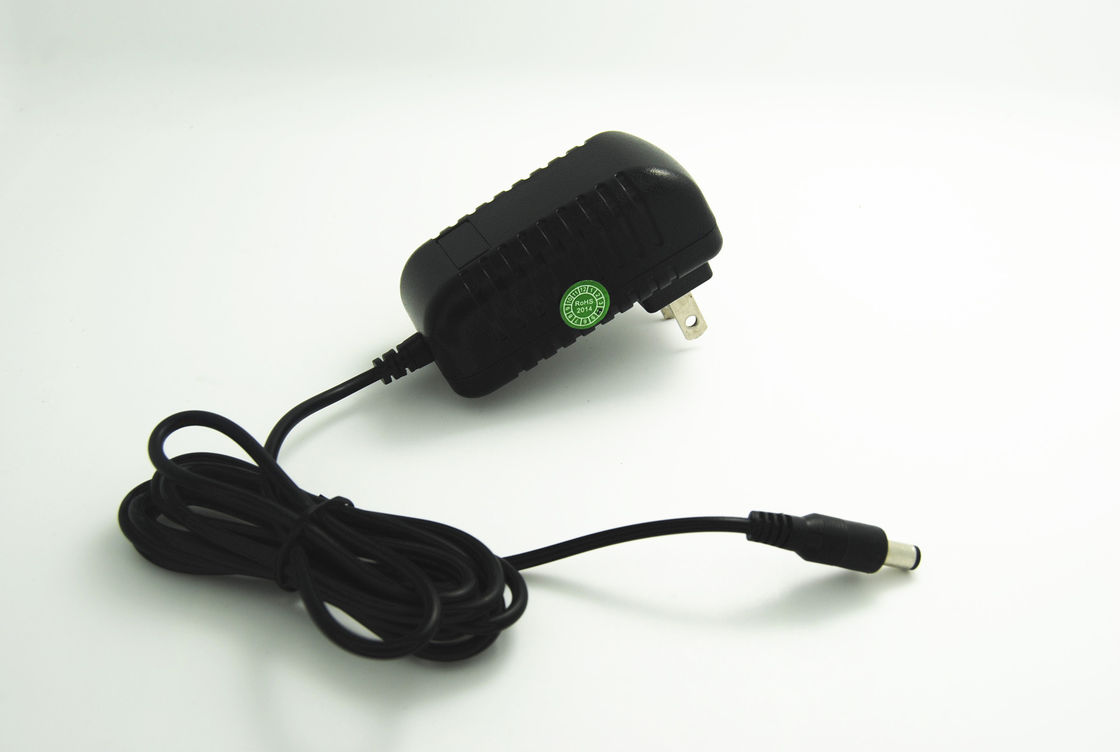

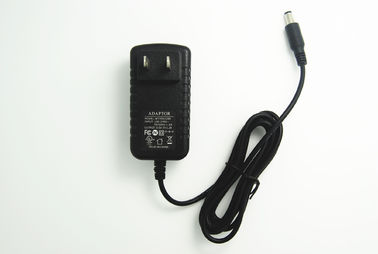

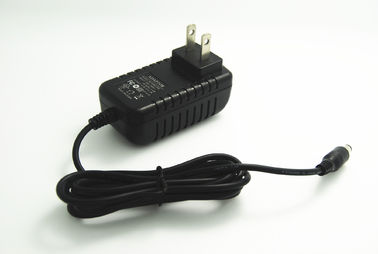

CV USA ADSL Modem Wall Mount Power Adapter , CE / ROHS / GS World Travel Power Adapter

US Plug 10.8W 9V 1.2A DC Output Wall Mount Power Adapter with 5.5 * 2.1mm DC Jack for Picture Frame

Quick Details:

• ​Input voltage: 100 to 240V AC, 50/60Hz
• Output voltage: 9V 1.2A
• Power: 10.8W
• Dimension (L x W x H): 74 x 40 x 30mm
• Socket type: US plug
• DC jack: 5.5*2.5*11mm/ 5.5*2.1*10mm
• Application: Picture Frame, CD-ROMs , ADSL Modem

Description:

1. Surface cosiness, small size and convenient carrying

2. Low cost, high reliability and all cases are covered by ultrasonic

3. Built-in OVP, OCP and SCP

4. Universal input voltage:

a. I/P voltage 100-240VAC; 50/60Hz

b. Turn on delay time≤3s

c. Inrush current≤30A/24V AC

5. O/P:

a. High accuracy and low noice

b. Hold up time ≥20mS

6. Operation model: CV

7. Environment:

a. Operation temperature: 0°C-40°C;5%-90%RH

b. Storage temperature: -20°C-85°C;5%-95%RH

8. Cooling: Natural cooling

9. Energy standard: CEC/ERP

10. Safety standard: IEC/EN60950

11. Insulation: hi-pot, 3,000V AC 60S 10mA

12. Leakage current: 0.25mA (maximum)

13. MTBF: MIL-HDBK-217F, full load, 25, more than 50,000 hours

14. RoHS compliant
