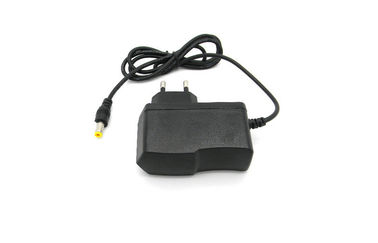

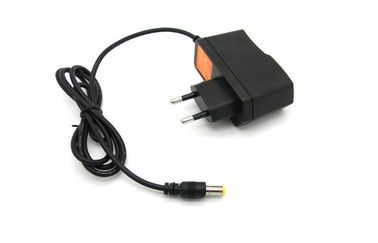

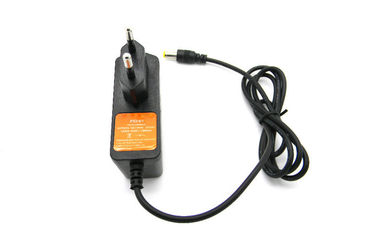

AC To DC Wall Mount Power Adapter 9V 1A Over Voltage For Router , 100-240Vac

AC To DC Wall Mount Power Adapter 9V 1A Over Voltage For Router , 100-240Vac

    • AC To DC Wall Mount Power Adapter 9V 1A Over Voltage For Router , 100-240Vac
    • AC To DC Wall Mount Power Adapter 9V 1A Over Voltage For Router , 100-240Vac
    • AC To DC Wall Mount Power Adapter 9V 1A Over Voltage For Router , 100-240Vac
    • AC To DC Wall Mount Power Adapter 9V 1A Over Voltage For Router , 100-240Vac
  • AC To DC Wall Mount Power Adapter 9V 1A Over Voltage For Router , 100-240Vac

    Product Details:

    Place of Origin: Shenzhen,China
    Brand Name: RAYTOP
    Certification: CE, RoHS, FCC
    Model Number: ET0900100

    Payment & Shipping Terms:

    Minimum Order Quantity: 2K
    Price: Negotiable
    Packaging Details: PE Bag, Master Carton, Customer package available.
    Delivery Time: 15-20 work days.
    Payment Terms: T/T, L/C
    Supply Ability: 200,000 Pcs monthly.
    Contact Now
    Detailed Product Description
    AC Cable: 1.2M Application: Router
    Approval: CE|RoHS|FCC|UL|SAA Cable Material: Copper
    DC Cable: 1.2M EMI Standards: FCC Part 15 Class B
    Frequency: 50Hz / 60Hz Input: 100-240Vac
    Operating Temperature: 0~40℃ Output: 9V 1A
    Output Power: 9W Plug: EU|US|SAA
    Product Name: Wall Mount Power Adapter Protection: Short Circuit|Over Voltage|Over Current



    AC To DC Wall Mount Power Adapter 9V 1A Over Voltage For Router , 100-240Vac





    Quick Detail:



    Switching mode power adapter, DC9V 1000mA, wall mount adapter, EU plug,  in conformity with CE, RoHS, FCC.





    Specs:



    Input: AC100-240V, 1.2A max.

    Frequency: 50/60Hz

    Output: DC9V, 1000mA

    DC Cable: 22AWG, Copper, length: 1.2M

    Plug: EU





    Features:



    -High efficiency:>82%;

    -Protection: Short circuit protection, over voltage protection, over current protection.

    -MTBF: 50,000 hours.





    Approval: CE, RoHS, FCC

    Warranty: 2 years





    Description:



    This is an universal laptop AC Adapter come with single output tip 5.5x2.1x10mm. It has high efficiency as well as steady performance. The tip size and plug type can be changeable.





    Note:



    Use indoor only.





    Applications:



    used for cordless phone, sphygmomanometer,repeater etc.





    Specifications:



    Input

    Rated Input Voltage

    AC100~240V

    Input Voltage Range

    AC 90~264V

    Rated Frequency

    50/60 Hz

    Input Frequency Range

    47~63 Hz

    Input AC Current

    0.2A

    Inrush Current

    30A

    Output

    Rated Output Voltage

    DC9V

    Rated Output Current

    1000mA

    Rated Power

    9W

    Ripple and Noise

    120mV p-p

    Standby Power Consumption

    0.3W

    Turn-on

    5s

    Hold-up

    20s

    Over Voltage Protection

    Yes

    Over Current Protection

    Yes

    Short Circuit Protection

    Yes, automatically recover after short circuit removed.

    Reliability

    Hi-pot

    3000Vac

    Insulation Resistance

    Input to output at 5Vdc

    Leakage Current

    5mA

    EMI Standards

    FCC Part 15B Class B

    RoHS Compliant

    Yes

    MTBF

    50,000 hours

    Burn-in

    40+/-5 ℃, full load, 12 hours

    Drop Test

    6 direction, each one time from height 1.0M

    Environmental

    Operating Temperature

    0~40℃

    Operating Humidity

    10~80%

    Storage Temperature

    -20~65℃

    Storage Humidity

    0~90%

    Safety Approvals

    CE, RoHS, FCC, UL, SAA

    Warranty

    2 Years







    Competitive Advantage:



    -Open private model w/o extra cost for you;

    -0.3% free backup of order quantity;

    -Direct factory price without middle man.

    -High performance-to-price ratio;

    -Perfect after-sale service

    -
