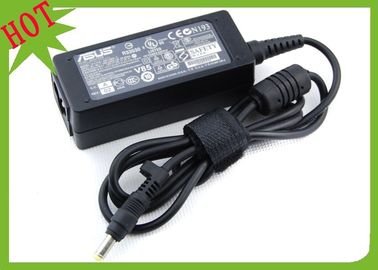

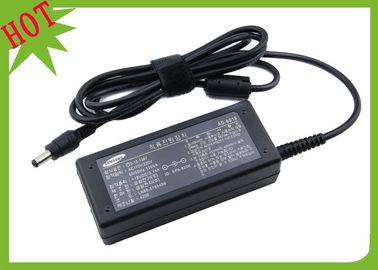

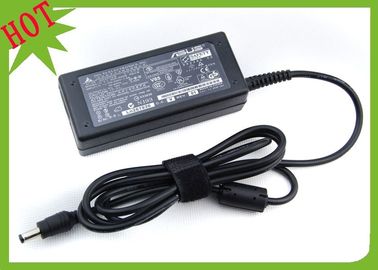

Universal AC Power Adapter 19V , Portable Desktop Type Adapter 3.42A

Universal AC Power Adapter 19V , Portable Desktop Type Adapter 3.42A

    • Universal AC Power Adapter 19V , Portable Desktop Type Adapter 3.42A
    • Universal AC Power Adapter 19V , Portable Desktop Type Adapter 3.42A
    • Universal AC Power Adapter 19V , Portable Desktop Type Adapter 3.42A
  • Product Details:

    Place of Origin: Shenzhen,China
    Brand Name: Xingweiye
    Certification: CE RoHs FCC
    Model Number: ADP-65B
    DC Voltage: 19V
    Rated Current: 3.42A
    Raded Power: 65W
    AC Inrush Current: 50A/230V
    Input Voltage: 100~240 V AC 50~60 Hz
    Contact Now
    Detailed Product Description



    Universal AC Power Adapter 19V , Portable Desktop Type Adapter 3.42A


    Quick Detail:


    ○ Low power consumption, high reliability

    ○ Protections: Short circuit/Over load/Over voltage


    ○ 9 years production experience in power supply.

    ○ 3 senior engineers with over 15 years experience in this field

    ○ 100% full loading burn-in test

    ○ All products have been checked and packaged in good condition before dispatch




    Description:

    Dimension: 108*45.5*29 mm (L'W'H')

    65W 19V3.42A POWER ADAPTER

    Universal AC Input (full range)



    Specifications:


    Input Voltage range

    100~240 V AC  50~60 Hz

    Efficiency

    > 80%

    AC Current (Max)

    0.15A/220V, 0.25A/110V

    AC Inrush Current

    50A/230V

    DC Voltage

    19V

    Rated Current

    3.42A

    Raded Power

    65W

    Ripple & noise(Max)

    mVp-p is less than or equal to 1% Uout

    Load Regulation

    ±1%

    Over load protection

    130%~150%

    Over Volt protection

    115%~135%

    WorkingTemperature

    0~40°C

    Working humidity.

    10%~90% RH

    Storage temperature humidity

    10%~90%RH

    Packing

    White box



    Applications:

    ○ Digital and electronic products, industrail equipment.
    ○ Fiber transceivers, game player, LED, CCTV camera;
    ○ Communications and security products;
    ○ LED Strip Lighting/ LED lamp / LED Light, LED / LCD display.
    ○ Household Electrical Appliance,
    ○ Mini PC / PDA / Laptop / Notebook products, etc.


    Competitive Advantage:

    1. Factory direct sales: Wholesale discounts & good quality
    2. Timely delivery time: 1-7 business days
    3. OEM and ODM: Any your custonized lightings we can help your design put into product
    4. Certification: Our products are mostly certified by CE, LVD, RoHS, EMC, FCC
    5. Good service: Your inquiry related to our products or prices will be replied in 24hours. Well-trained and experienced staffs to answer all your enquires in fluent English
