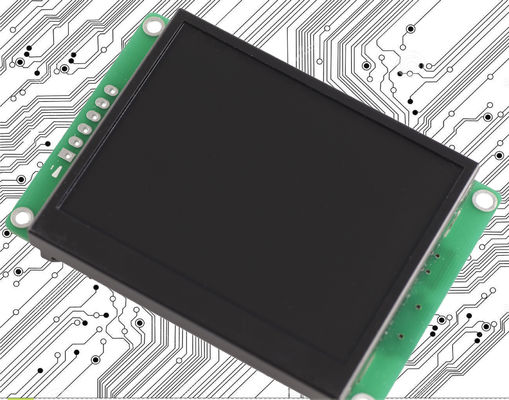

Customized TFT LCD 15.1 Inch With Power Adapter And Pcb Serial Interface

Customized TFT LCD 15.1 Inch With Power Adapter And Pcb Serial Interface

    • Customized TFT LCD 15.1 Inch With Power Adapter And Pcb Serial Interface
  • Customized TFT LCD 15.1 Inch With Power Adapter And Pcb Serial Interface

    Product Details:

    Place of Origin: CN
    Brand Name: stone
    Certification: CE Certificate ,FCC Certificate,RoHS Certificate ,ISO9001:2008
    Model Number: STA151WT-01

    Payment & Shipping Terms:

    Minimum Order Quantity: 2kg
    Packaging Details: box/carton
    Delivery Time: 5-15days
    Payment Terms: T/T, Western Union,Paypal
    Contact Now
    Detailed Product Description
    Display Scale: 4:3 Size (Inch): 15.1 Inch
    Resolution: 1024*768 VOLTAGE: DC5.0V ~ 20V
    Brightness: 500 Cd/m² Interface: RS232/RS485/TTL
    High Light:

    industrial lcd display

    ,

    rs232 lcd display

    Customized TFT LCD 15.1 Inch With Power Adapter And Pcb Serial Interface





    Product Description
    1. Controlled by Any MCU via simple "Command Sets"
    2. Used as Touch-screeen controller & TFT-LCD display system
    3. 3 easy software to help you run our product.

    Working Principle
    The TFT-LCD Module communicates with the main controller via the command, then the main controller would control the machine to work after receiving the commands.


    Please note: The Main controller can be designed by engineer with Any MCU.

    Customized TFT LCD 15.1 Inch With Power Adapter And Pcb Serial Interface 0

     Software Description


    1. Design a group of Beautiful "Graphical User Interface" that you need.

    2. Connect your equipment with our TFT-LCD Module by RS232, RS485 port or TTL Logic directly, plug

    and play.

    3. Write a simple program for the MCU to control the TFT-LCD Module via powerful "Command Sets"

    (HEX Code).

    That's all. Saving much development Time and Cost for Engineer.



    For example: Image Command 0x70.

    Send: “0xAA+0x70+ Pic_ID + 0xCC 0x33 0xC3 0x3C”



    Introduction

    Example

    Note

    AA

    Frame head



    Frame head of one Command

    0x70

    Command Code





    Pic_ID

    Sequence number of

     the current picture

    0x00 0x01

    Show Picture - 01

    CC 33 C3 3C

    Frame end



    Frame end of one Command



    We would offer a simple Toolbox to help you to work with TFT-LCD Module on PC.

    1. Assistant function: show how to send the Command Set to control the TFT display.

    2. Download function: Download the images and configuration files into TFT Module

    3. Touch Control function: Define many buttons on the User Interface, then create a touch configuration

    file.

    4. Font software: Create the font configuration file.


    Product Parameter



    Model: STA151WT-01 (Advanced Type)



    Physical Parameter

     Model

     STA151WT-01

     Size (Inch)

     15.1"

     Resolution

     1024×RGB×768

     Pixel Spacing

     0.1905 mm × 0.0635 mm(H×V)

     Color

     65536 colors (16 bit)

     Viewing Area

     304.1 mm × 228.1 mm

     Overall Dimension

     384.5 mm × 255.9 mm × 26 mm(N)/

     28.3 mm(T)

     Net Weight

     1255 g(N)/ 1635 g(T)

     TFT Panel

     A+ Level Industry Panel

     Touch Screen

     Industry Level 4 wire resistance

     Or without touch screen is optional.

    Backlight Parameter

     Backlight Type

     LED

     Brightness

     500 cd/m2

     (Brightness can be adjustable in 100 levels.)

     Contrast

     500:1

     Backlight life

     50,000 hours

     Viewing Angle

     80°/ 80°/ 80°/ 80° (L/R/U/D)

     Working Temperature

     -20°C ~ +70°C

     Working Humidity

     55°C, 85%

     Storage Temperature

     -30°C ~ +80°C

     Screen Mode

     Digital

    Performance Parameter

     CPU

     CortexM3 STM32F103

     LCD Controller

     CPLD EPM240

     Refresh Rate

     60Hz

     Picture Switching Speed

     80 ms/picture (12 pictures/s)

     Flash Memory

     Standard 256m, Extension 2GB

     Memory Amount for picture

     151 images

     Interface

     RS232/ RS485/ TTL UART Interface

     Pictures downloading

     MiniUSB2.0 (12Mbps) & SD card

     Voltage Range

     DC5.0V ~ 20V (typical value: 12V)

     Power

     12W

    Test Report

     MTBF

     4,250,000H

     Working Temperature

     -20°C ~ +70°C

     Air Humidity

     60°C, 90%

     Continuous Vibration Testing

     10-55Hz, 1.5mm, 10G

     Impact Acceleration Testing

     6ms, 100G

     ESD Testing

     10KV

     Radiation Reliability Testing

     44W



    Advantages

     With CPU & Driving Device

     Controlled by Any MCU

     Display Picture/ Text/ Curve via Commands

     65536 colour TFT display

     Touch Screen

     RS232/ RS485/ TTL UART Interface & USB port

     Wide voltage range

     Widely Used in many various Industrial Field

     Easy to Use! Powerful Function! Saving Cost and Time!

     Used as Touch-controller, TFT-LCD display system, etc.

    Easy!!!   Powerful!!!   Saving!!!

    The Intelligent TFT-LCD Module can be controlled by Any MCU through our Powerful & Easy Command

     Set (HEX Code), So

    many of engineer in more than 50 countries enjoy our Product for new project.



    Main Size of TFT LCD Module

     Size

     Resolution

     3.5"

     320*240

     4.3"

     480*272

     5"

     640*480; 480*272; 800*480

     5.6"

     640*480

     5.7"

     640*480

     7"

     800*480; 800*600; 1024*600

     8"

     800*600; 800*480; 1024*768

     8.4"

     800*600

     10.1"

     1024*600

     10.4"

     800*600

     12.1"

     800*600

     15.1"

     1024*768




    Appliaction



    Widely Used In Many Various Industrial Field in more than 50 Countries.
