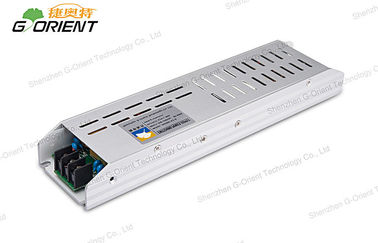

Metal Switching AC to DC Power Supply 200W , Isolated with CE

Metal Switching AC to DC Power Supply 200W , Isolated with CE

    • Metal Switching AC to DC Power Supply 200W , Isolated with CE
  • Metal Switching AC to DC Power Supply 200W , Isolated with CE

    Product Details:

    Place of Origin: China
    Brand Name: G-ORIENT
    Certification: ISO9001 / CE / ROHS / FCC
    Model Number: NHP200-5-A

    Payment & Shipping Terms:

    Minimum Order Quantity: 10pcs
    Price: negotiable
    Packaging Details: 20pcs/16Kgs / CARTONS
    Delivery Time: 10 working days after received your payment
    Payment Terms: T/T, Paypal, L/C, Western Union
    Supply Ability: 50,000pcs per month
    Contact Now
    Detailed Product Description
    Standard: CE / ROHS / FCC Output: 5V DC / 40A
    Input: 100-240Vac Output Power: 200W
    Size: 212*58*29mm Application: LED TV
    Case Material: Metal, Aluminium IP Grade: IP20
    High Light:

    universal power supply

    ,

    ac dc power supply





    Metal Switching AC to DC Power Supply 200W , Isolated with CE





    Applications:

    1. Electrical equipment, Instrumentation;

    2. Digital and electronic products;

    3. Advisement player

    4. LED display,LCD TV, LED TV

    5. Display screen,LED video wall

    6. Communications and security products.





    Features:

    * Synchronous rectification,high power factor>0.95

    * High efficiency up to 90%

    * Low output ripple and noise,high reliability

    * With over-current/over-voltage/short-circuit/over-power protection

    * Ultra-low start up temperature -40℃

    * 2 years warranty





    Specifications:

    Switching power supply

     NHP200-5-A

     OUTPUT

    DC Voltage

     5V

    Current Range

     0~40A

    Rated Current

     40A

    Rated Power

     200W

    Ripple & Noise(max.)

     <200mVp-p

    Regulation

     ≦+/-3%

    Leakage current

     ≦3.5mA

     INPUT

    Voltage Range

     100-240V AC

    Frequency Range

     47-63Hz

    Efficiency(Typ.)

     90%

     Environment

    Storage Temperature

     -40 ~ +85℃

    Operaing Temperature

     -40 ~ +80℃

    Relative Humidity

     10%-95%

    Cooling

     Natural convection

     Safety

    Safety standards

     CE

     Withstand Voltage

    Input-output withstand vol.

     3000Vac/10mA/1min

    Input-FG withstand vol.

     1500Vac/10mA/1min

    Output-FG withstand vol.

     500Vac/10mA/1min

     Others

    Dimension

     212*58*29mm (L*W*H)

    Packing









    Competitive Advantage:

    * Ultra-thin 30mm

    * Ultra-low start up temp.(- 30℃)

    * synchonous rectification

    * High efficiency up to 85%

    * CE / ROHS / FCC approval

    * Small size,ultra-light and easy to install

    * Protections:Short circuit / Overload / Over voltage / Over temperature





    Company Advantage:

    * High quality products

    * Short lead time

    * Professional R&D team

    * Standardized production process
