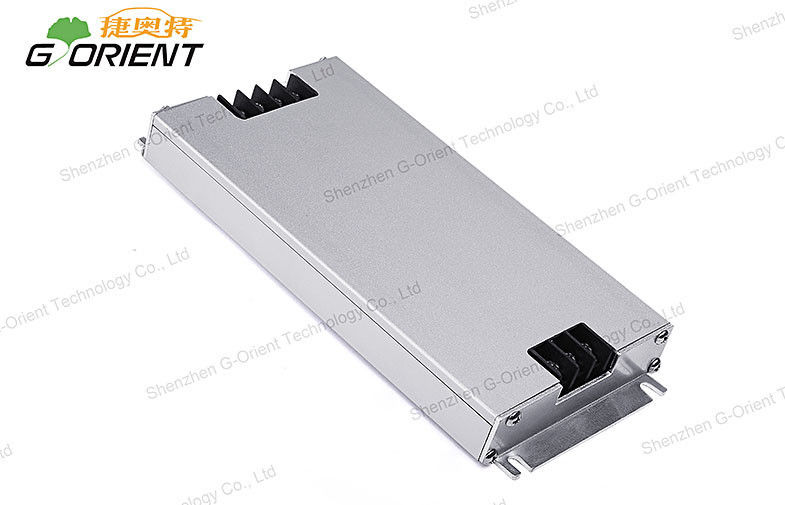

168 Watt Single Output Switching Power Supply natural cooling for Advertising Display

Product Details:

Place of Origin:	China
Brand Name:	G-ORIENT
Certification:	ISO9001 / CE / ROHS / FCC
Model Number:	NHD200-4.2-A

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	negotiable
Packaging Details:	20pcs/16Kgs / CARTONS
Delivery Time:	10 working days after received your payment
Payment Terms:	T/T or Paypal
Supply Ability:	50,000pcs per month

Contact Now

Detailed Product Description

Application:	On-board Screen, Taxi LED Sign	Input:	9-36V DC
Standard:	CE / ROHS / FCC	Size:	16810018mm
Output Power:	168W	Output:	4.2V DC / 40A
High Light:	high power switching power supply , single output switching power supply

168 Watt Single Output Switching Power Supply natural cooling for Advertising Display

Features:

* To prevent car screen flower screen, the splash screen and two horizontal line design

* Input reverse connect protection

* High efficiency 94% & small size

* Low output ripple and noise

* Aluminum metal shell,natural cooling

* Through the EMC certification

* 2 years warranty

Specifications:

Switching power supply		NHD200-4.2-E
OUTPUT	DC Voltage	4.2V
	Current Range	0~40A
	Rated Current	40A
	Rated Power	168W
	Ripple & Noise(max.)	<100mVp-p
	Voltage set point accuracy	+/- 3.0%Vo max
	Over-current protection	>120%io,hiccup
	Line Regulation	0.2%Vo max
	Load Regulation	0.2%Vo max
	Short-circuit protection	Hiccup
	Hold up time	>8mS
	Overshoot and undershoot	< +/- 5.0%
INPUT	Voltage Range	DC9-36V
	Frequency Range	BW=20MHz
	Efficiency(Typ.)	94%
	DC Current	<2.9A
	Inrush Current(Typ.)	100A at DC Cold start
	Leakage Current	Input-Output< 0.2mA ; Input-PG:<0.3mA
Environment	MIBF	>2 million hrs
	Temp.Coefficient	< 0.02%/℃
	Storage Temperature range	-55 ~ +115℃
	Operaing board Temperature range	-30 ~ +75℃
Safety	Safety standards	CE
Safety	Withstand Voltage	DC40V
Others	Dimension	1688018mm (LWH)
Others	Packing	0.6kg; 20pcs/12Kgs

Applications:

This power supply suitable for automobile,ship,electric cars,new energy products,LED electronic signs,car audio,and other energy-saving appliances stable power supply use.

Competitive Advantage:

* To prevent car screen flower screen, the splash screen and two horizontal line design

* Input reverse connect protection

* High efficiency 94%,high reliability

* Small size,ultra-thin 18mm

* Low output ripple and noise

* Aluminum metal shell,natural cooling

* Through the EMC certification

* 2 years warranty

Company Advantage:

* High quality products

* Short lead time

* Professional R&D team

* Standardized production process

* Competitive price
