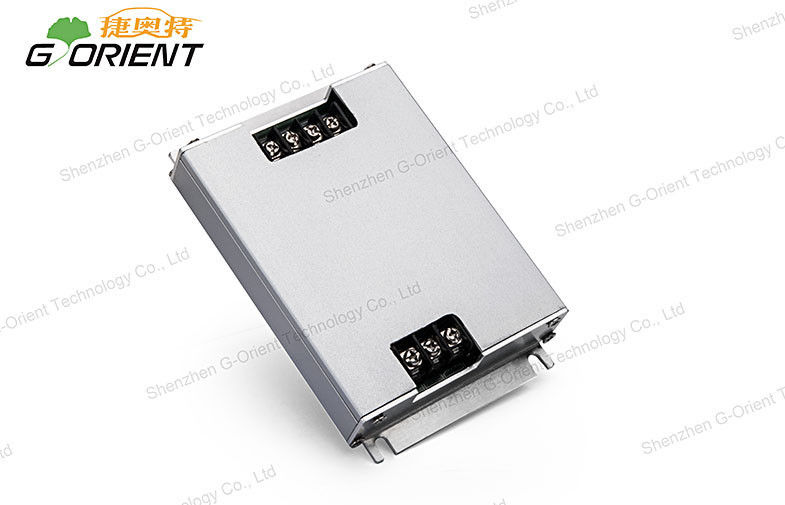

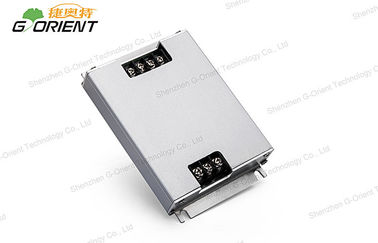

High Efficiency Variable Switching Power Supply Ultra Thin 18mm For Car Audio

High Efficiency Variable Switching Power Supply Ultra Thin 18mm For Car Audio

  • High Efficiency Variable Switching Power Supply Ultra Thin 18mm For Car Audio
High Efficiency Variable Switching Power Supply Ultra Thin 18mm For Car Audio
Product Details:
Place of Origin: China
Brand Name: G-ORIENT
Certification: ISO9001 / CE / ROHS / FCC
Model Number: NHD100-4.2-A
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: negotiable
Packaging Details: 20pcs/16Kgs / CARTONS
Delivery Time: 10 working days after received your payment
Payment Terms: T/T, Paypal, L/C, Western Union
Supply Ability: 50,000pcs per month
Contact Now
Detailed Product Description
Size: 120*80*18mm Input: 9-36V DC
Output Power: 84W Output: 4.2V DC / 40A
Operating Temperature: -30℃ ~ +60℃ Ripple & Noise: ≤100mVp-p
High Efficiency: 94% Application: On-board Screen, Taxi LED Sign
High Light:

high power switching power supply

,

switching power supply



High Efficiency Variable Switching Power Supply Ultra Thin 18mm For Car Audio





Applications:

This power supply suitable for automobile,ship,electric cars,new energy products,LED electronic signs,car audio,and other energy-saving appliances stable power supply use





Features:

* To prevent car screen flower screen, the splash screen and two horizontal line design

* Input reverse connect protection

* High efficiency 94%,high reliability

* Small size,ultra-thin 18mm

* Low output ripple and noise

* Aluminum metal shell,natural cooling

* Through the EMC certification

2 years warranty





Specifications:

Switching power supply

 NHD100-4.2-A

 OUTPUT

DC Voltage

 4.2V

Current Range

 0~20A

Rated Current

 20A

Rated Power

 84W

Ripple & Noise(max.)

 <100mVp-p

Voltage set point accuracy

 +/- 3.0%Vo max

Over-current protection

 >120%io,hiccup

Line Regulation

 0.2%Vo max

Load Regulation

 0.2%Vo max

Short-circuit protection

 Hiccup

Hold up time

 >8mS

Overshoot and undershoot

 < +/- 5.0%

 INPUT

Voltage Range

 DC9-36V

Frequency Range

 BW=20MHz

Efficiency(Typ.)

 94%

DC Current

 <2.9A

Inrush Current(Typ.)

 100A at DC Cold start

Leakage Current

 Input-Output< 0.2mA ; Input-PG:<0.3mA

 Environment

MIBF

 >2 million hrs

Temp.Coefficient

 < 0.02%/℃

Storage Temperature range

 -55 ~ +115℃

Operaing board Temperature range

 -30 ~ +75℃

 Safety

Safety standards

 CE

Withstand Voltage

 DC40V

 Others

Dimension

 168*80*18mm (L*W*H)

Packing

 0.6kg; 20pcs/12Kgs





Competitive Advantage:

* Ultra-thin 18mm

* High efficiency up to 94%

* The two level output over voltage protection

* CE / ROHS / FCC approval





Company Advantage:

* Short lead time

* Professional R&D team

* Standardized production process
