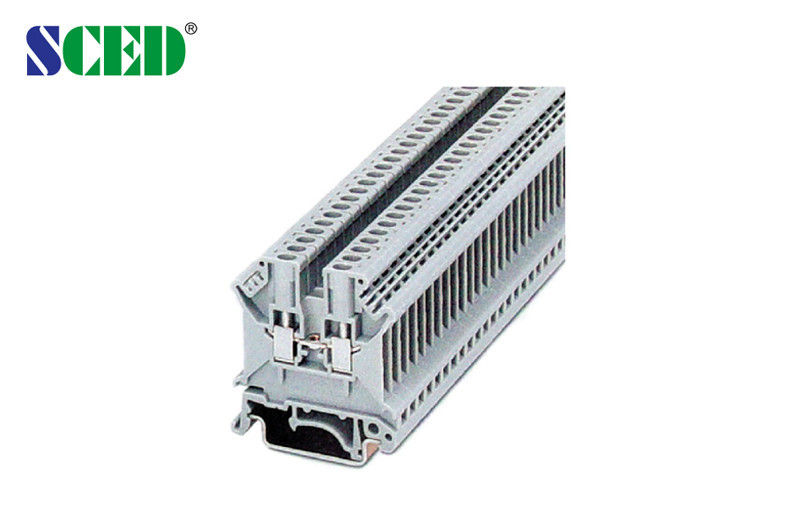

5.2mm Compact Din Rail Mounted Terminal Blocks For Power Supply 600V 20A

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	SCED
Certification:	UL, CE
Model Number:	TR-3N

Payment & Shipping Terms:

Minimum Order Quantity:	500
Price:	Factory Price
Packaging Details:	Standard Export Carton
Delivery Time:	7-20 working days
Payment Terms:	T/T
Supply Ability:	1KK poles each monthly

Contact Now

Detailed Product Description

Applications:	Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elev	Color:	Grey
Deck:	Single Deck	Type:	Din Rail Terminal Blocks,Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks
Width:	5.2mm	Wire Range:	28-12
High Light:	din rail mount terminal blocks , din rail terminals blocks

5.2mm Compact Din Rail Mounted Terminal Blocks For Power Supply 600V 20A

Applications:

Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elevator, etc..

Detailed product Description:

■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet

■Single Deck; □Double decks; □Triple decks

Standard color: Grey. Other colors also available, please refer to below How to Order and select the color you want.

Din rail terminal blocks, rail terminal connectors, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks

How to order:

5.2mm Compact Din Rail Mounted Terminal Blocks For Power Supply 600V 20A 0

Parameter and Drawing Specifications:

Description Color	Type
Terminal Grey	TR-3N
End Cover Grey	D-TR-3/16
Fixed Bridge	FBI 10-5 Imax: 30A
Insertion Bridge	EBL 10-5 Imax: 24A
Separating Plate	TS-K
Partition Plate	ATP-TR
Zack Strip White	ZB5
Screwdriver	SZS0.6×3.5
Rail Material	aluminum
Dimensions mm	5.2/42.5/2
Height (U35: 7.5/U35: 15G 32) mm	47/54.5/52
Screw / Torque Nm	M3 / 0.6-0.8
Stripping Length mm	8
IEC Technical Data
Max. Load Current / Cross Section A / mm²	32 / 4
Rated Surge Voltage / Contamination Class KV / -	8 / 3
Surge Voltage Category	Ⅲ

Competitive Advantage:

1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand
