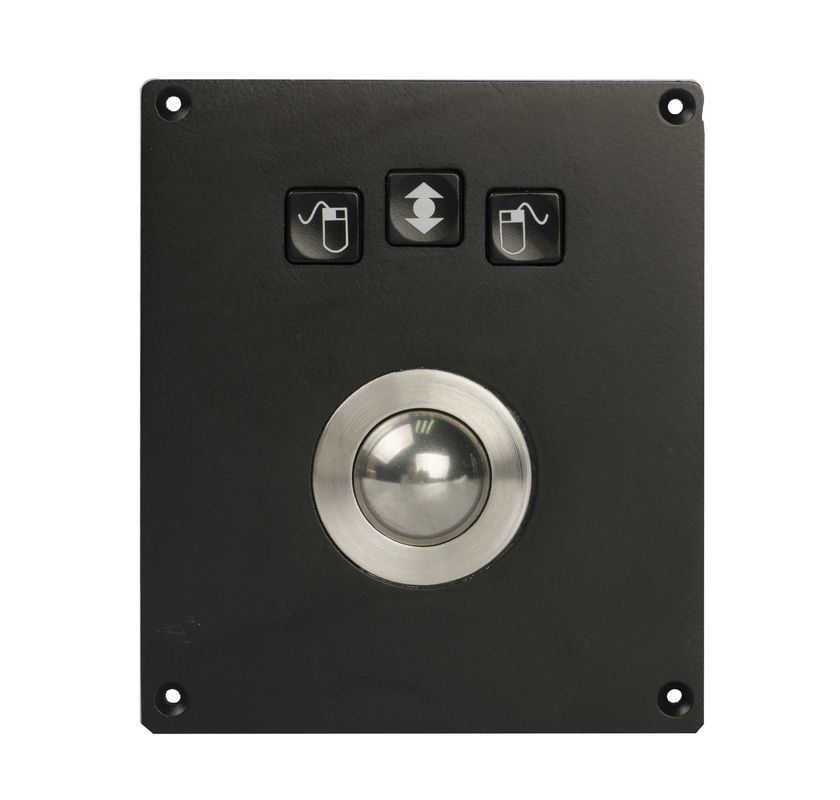

IP65 waterproof military Phenolic Resin mechanical Trackball with 3 mouse buttons

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	IKB-MKB
Certification:	CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
Model Number:	K-TEK-M90-25-MTB

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Packaging Details:	Each keyboard to one box, several boxes to one carton.
Delivery Time:	ASAP Within 2 weeks upon payment confirmed
Payment Terms:	Full payment in advance, Western Union, T/T, Paypal
Supply Ability:	3000psc/month

Contact Now

Detailed Product Description

Material:	Metal Stainless Steel	Colour:	Black
Trackball:	MTB	Mount:	Top Panel Mounting
Interface:	USB Or PS/2	Dimension:	90.00mm X 105.00mm(top Panel)
Operating Temperature:	-20ºC~+ 60º C
High Light:	optical trackball , stainless steel trackball

Black military 25mm Vandal proof Red Phenolic Resin Mechnical Trackbal pointing device

DESCRIPTION: IP65 dynamic Vandal proof Red Phenolic Resin Mechnical Trackball moudle with +400 DPI resolutions, stainless steel housing protects the trackball module, high quality durable Black Electroplate Titanium included.rear stainless steel panel mounted with 3 sealed polymer mouse buttons designed for right & left clicking and scrolling up and down with ball rolling,with rear panel mounting solution.

Main Features:

IP65 explosion proof mini 25mm red phenolic resin trackball with 0.45mm short stroke.
Plug and play PS/2 interface for direct power supply
No metal bearings inside, operation is very smooth, and easy without any noise.
Trackball module protected and shielded by stainless steel housing
All Metal Mechanicals provide for rugged, smooth, long lasting operation.
Rear panel mounting solution.
Professional factory offer ensured quality product and direct after-sale service
Top panel mounting Vandal proof 25mm metal trackball

TECHNICAL SPECIFICATION:

ITEM		SPECIFICATION
Mechanical	Key	3 keys, quality black polymer
	Key top style	Non-protuberant rectangular Keys,
	Front Plate	Quality black stainless steel
	Key Travel	0.45mm
	Ball diameter	25.4mm/1.0' (19mm, 25mm, 36mm 40mm, 50mm also available)
	Key switch lifespan	more than 5 Mio actuations
	Track ball lifespan	> 10 Mio revolutions
	Back Metal Cover	Rear side integrated electronics protected by a metal cover
	Actuation Force	1.0N to 3.0N
	Mounting Rack	Stainless steel
	Dimension	Dimensions with 25mm track ball, Front plate (W x H): 90.0 x 105.0mm, Overall (W x H x D): 90.0 x 105.0 x 23.0mm
Interface	PS2, USB are available, Y type cable with ports of PS2 and USB
Electrical	Power supply	5V DC+ 10%, keyboard interface
	Protection level	IP65 (dynamic), NEMA3
	EMC Standard	EN55022(B)
	Power consuming	≤1.00W(dynamic)
	Power consuming	≤0.2W(static)
	Contact Material	Gold-on-Gold
Environmental	Operating temperature	-20ºC~+ 60º C
	Storage temperature	- 30ºC~+ 70ºC
	Operating RH	30～90%
	Atmospheric pressure	60～106Kpa.
Reliable	Certificates	RoHS compliant, CE and FCC certified. ESD
	MTBF	>50000h
	MTTR	< 30min
OS	All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed)
Packing Details	Each unit to a suitable brown box, suitable brown boxes to a standard export carton.
