Place of Origin: | China |
Brand Name: | LEEHON |
Certification: | RoHS |
Model Number: | 13264K6 |
Minimum Order Quantity: | 200 |
---|---|
Price: | us$5.8-6.0/pc |
Packaging Details: | exporting standard package |
Delivery Time: | 1-2 weeks |
Payment Terms: | T/T, Western Union,paypal |
Supply Ability: | 500k/M |
Dispaly Mode: | Graphic Lcd Display | DOTS: | 132*64 |
---|---|---|---|
Controller IC:: | ST7565 | Drive Method:: | 1/64 Duty; 1/9 Bias |
Active Area:: | 58.04*30.68mm | Interface: | Serial/parallel Port |
Polarizer Type:: | Transflective, Positive | Operating Temperature: | –20ºC TO +70ºC |
Backlight Color: | Yellow | ||
High Light: | alphanumeric lcd display,graphic lcd module |

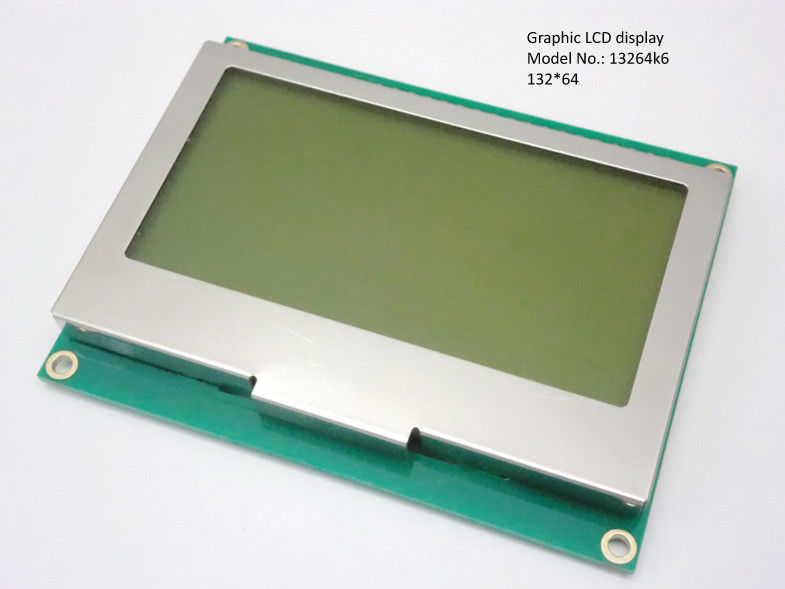

STN transflective Graphic LCD Display 132*64 yellow backlight
Application:
widely used in medical, military, electric power, industrial control, aerospace, electronics, instrumentation, numerical control machine tools, automotive, communications and other fields
Specification:
product name.: | graphic lcd display |
Model NO.: | 13264K6 |
Resolution | 132*64 |
LCD Outline Size: | 78.0*60.0*10.2 mm |
View Area: | 66.5*33.5 mm |
Active Area: | 58.04*30.68 mm |
Display Type: | STN, yellow |
Polarizer Type: | Transflective,positive |
View Direction: | 6:0 O'Clock |
VDD | +3.3V |
Drive Method: | 1/64 Duty; 1/9 Bias |
Controller IC: | ST7565 |
interface: | Serial/parallel port |
Backlight type: | yellow |
Backlight Supply Voltage: | +3.3V |
Operating Temp: | –20ºC TO +70ºC |
Storage Temp: | –30ºC TO +80ºC |
Our factory is founded in Year 2009, located in Nanjin China. Our thousands of products cover LCD / LCM/ COG including 122*32,128*64,128*128,160*160,192*64,240*128,320*240 etc
13264K6 Drawing as below:
