    Product Details:

    Place of Origin: China
    Brand Name: PIONEER
    Certification: CE/ROHS
    Model Number: PESF-H601C1-1.5

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: negotiation
    Packaging Details: 5-layer corrugated packaging for sample;wooden packaging for more order
    Delivery Time: 1-15 days
    Payment Terms: T/T ,L/C,Western Union,PayPal
    Supply Ability: 3000pcs per month
    Contact Now
    Detailed Product Description

    EMC Shielded Enclosure Filter , High Performance Power Line Filters




    Description



    PIONEER EMC LTD specializes in the design and manufacture of EMI filters.



    These series power line EMI filters are specially designed for anechoic chamber, shielded enclosure,

    Electromagnetic shelter, shielded chamber and Shield Facilities.



    PESF-H601C1-1.5



    Rated voltage

    30VDC

    Rated current

    1.5A

    Insertion Loss:

    ≥100dB(10KHz~10GHz)

    Leakage

    low

    Climatic Category

    25/070/21

    Accessories

    Penetration tube: 1 PCS



    Washer: 1 PCS



    Nut: 1 PCS



    RF Gasket: 2 PCS

    Custom design and OEM

    Accepted

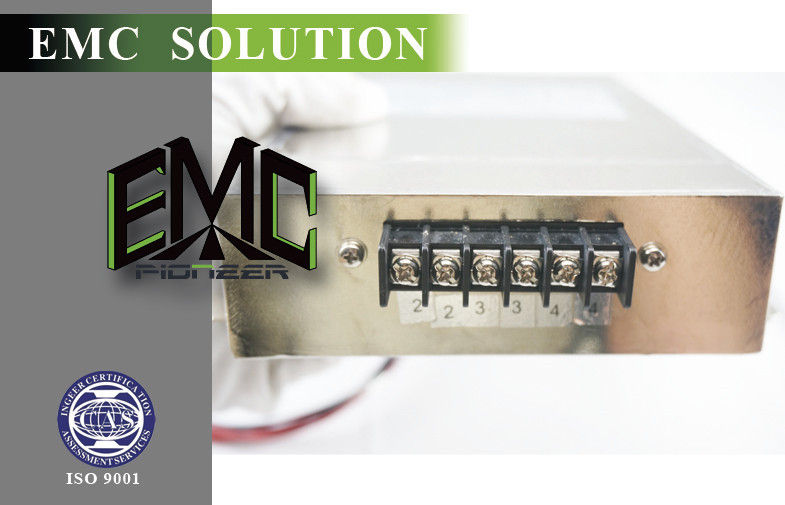

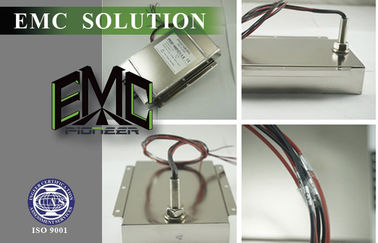

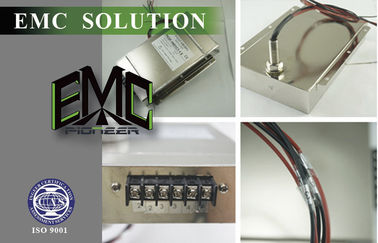

    Power filters picture show

    EMC Shielded Enclosure Filter , High Performance Power Line Filters



    Mechanical Dimension



    EMC Shielded Enclosure Filter , High Performance Power Line Filters



    Installation Drawing

    EMC Shielded Enclosure Filter , High Performance Power Line Filters

    Shielding Performance



    14Hz

    60-90dB

    100 kHz

    98 dB

    1 MHz

    132 dB

    5 MHz

    132 dB

    30 MHz

    133 dB

    80 MHz

    126 dB

    200 MHz

    127 dB

    400 MHz

    120 dB

    600 MHz

    118 dB

    800 MHz

    126 dB

    1 GHz

    124 dB

    10 GHz

    119 dB

    18 GHz

    103 dB



    International standards


    All of products are CE certified and ROHS compliance,also meet the standards of IEC939-1,IEC939-2,

    EN133200,UL1283, VDE0565-3,GB/T15287,GB/T15288 etc. to available for every country.



    Applications



    The general design of these filters corresponds with the attenuation request of shielded sites for EMC

     testing or secure locations with TEMPEST requirements.



    Faraday cages

    Anechoic chambers

    Reverberation chambers

    Shelters

    EMC applications

    TEMPEST applications


    These electrical structure used allows low leakage current. These filters can be used without an isolation

    transformer under certain conditions.
