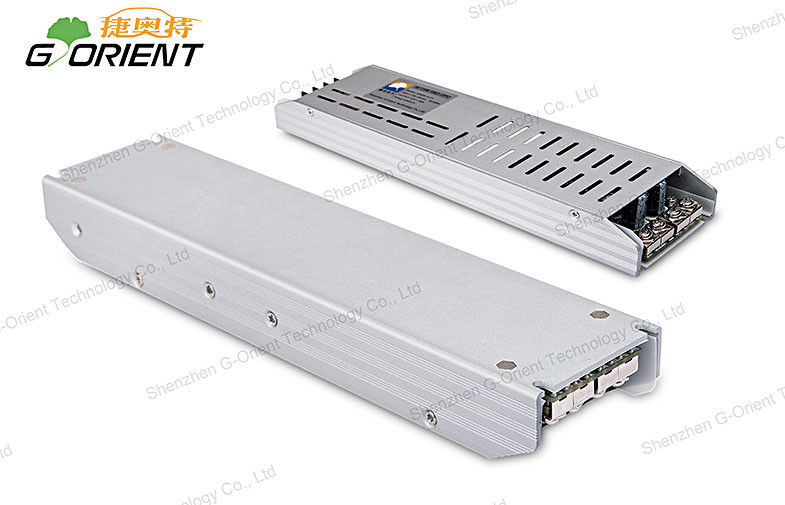

Thickness 29mmAC DC Converter 168W 4.2V 40A , ac dc car converter

Thickness 29mmAC DC Converter 168W 4.2V 40A , ac dc car converter

Thickness 29mmAC DC Converter 168W 4.2V 40A , ac dc car converter

Product Details:

Place of Origin: China
Brand Name: G-ORIENT
Certification: ISO9001 / CE / ROHS / FCC
Model Number: NHP200-4.2-A

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: negotiable
Packaging Details: 20pcs/16Kgs / CARTONS
Delivery Time: 10 working days after received your payment
Payment Terms: T/T, Paypal, L/C, Western Union
Supply Ability: 50,000pcs per month
Contact Now
Detailed Product Description
High Efficiency: 90% Application: Indoor
Output Power: 168W Case Material: Metal, Aluminium
Input: 100-240V AC Output: 4.2V DC / 40A
Power Factor: >0.95 Size: 212*58*29mm





Thickness 29mmAC DC Converter 168W 4.2V 40A , ac dc car converter



Applications:

* Electrical equipment, Instrumentation;

* LED display,LCD TV, LED TV

* Display screen,LED video wall

* Digital and electronic products;

* Advisement player

* Communications and security products.





Features:

* Synchronous rectification,high power factor>0.95

* With over-current/over-voltage/short-circuit/over-power protection

* Ultra-low start up temperature -40℃

* 2 years warranty

* High efficiency up to 90%

* Low output ripple and noise,high reliability





Specifications:

Switching power supply

 NHP200-4.2-A

 OUTPUT

DC Voltage

 4.2V

Current Range

 0~40A

Rated Current

 40A

Rated Power

 168W

Ripple & Noise(max.)

 <200mVp-p

Regulation

 ≦+/-3%

Leakage current

 ≦3.5mA

 INPUT

Voltage Range

 100-240V AC

Frequency Range

 47-63Hz

Efficiency(Typ.)

 90%

 Environment

Storage Temperature

 -40 ~ +85℃

Operaing Temperature

 -40 ~ +80℃

Relative Humidity

 10%-95%

Cooling

 Natural convection

 Safety

Safety standards

 CE

 Withstand Voltage

Input-output withstand vol.

 3000Vac/10mA/1min

Input-FG withstand vol.

 1500Vac/10mA/1min

Output-FG withstand vol.

 500Vac/10mA/1min

 Others

Dimension

 212*58*29mm (L*W*H)

Packing



 Note











Competitive Advantage:

* Protections:Short circuit / Overload / Over voltage / Over temperature

* Small size,ultra-light and easy to install

* Ultra-low start up temp.(- 30℃)

* synchonous rectification

* CE / ROHS / FCC approval

* Ultra-thin 30mm

* High efficiency up to 85%
