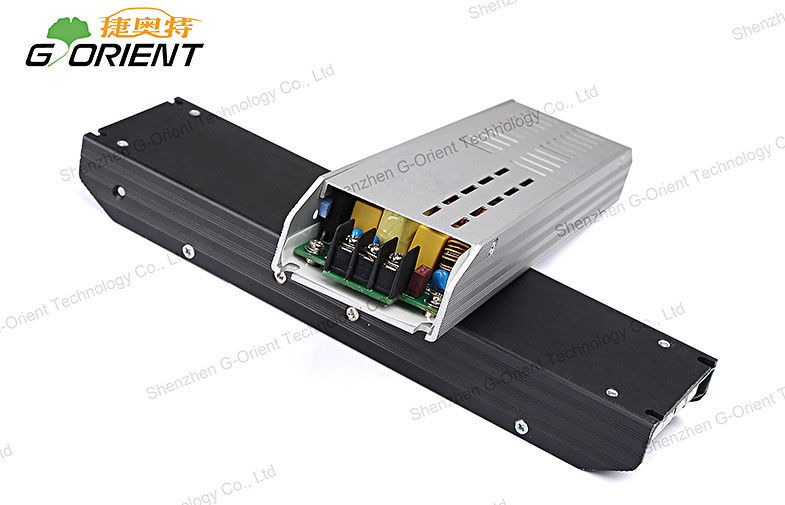

Universal AC DC Converter for car LED video wall Synchronous rectification

Universal AC DC Converter for car LED video wall Synchronous rectification

Universal AC DC Converter for car  LED video wall Synchronous rectification

Product Details:

Place of Origin: China
Brand Name: G-ORIENT
Certification: ISO9001 / CE / ROHS / FCC
Model Number: NHP200-5-A

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: negotiable
Packaging Details: 20pcs/16Kgs / CARTONS
Delivery Time: 10 working days after received your payment
Payment Terms: T/T, Paypal, L/C, Western Union
Supply Ability: 50,000pcs per month
Contact Now
Detailed Product Description
Standard: CE / ROHS / FCC Output: 5V DC / 40A
Product Name: LED TV Power Supply Input: 100-240V AC
Output Power: 200W Size: 212*58*29mm
High Efficiency: 90% Power Factor: >0.95

Universal AC DC Converter for car  LED video wall Synchronous rectification





Features:

* Synchronous rectification,high power factor>0.95

* High efficiency up to 90%

* Low output ripple and noise,high reliability

* With over-current/over-voltage/short-circuit/over-power protection

* Ultra-low start up temperature -40℃

* 2 years warranty





Company Advantage:

* Professional R&D team

* Standardized production process

* Best after sale service

* High quality products

* Short lead time

* Cheap wholesale price





Specifications:

Switching power supply

 NHP200-5-A

 OUTPUT

DC Voltage

 5V

Current Range

 0~40A

Rated Current

 40A

Rated Power

 200W

Ripple & Noise(max.)

 <200mVp-p

Regulation

 ≦+/-3%

Leakage current

 ≦3.5mA

 INPUT

Voltage Range

 100-240V AC

Frequency Range

 47-63Hz

Efficiency(Typ.)

 90%

 Environment

Storage Temperature

 -40 ~ +85℃

Operaing Temperature

 -40 ~ +80℃

Relative Humidity

 10%-95%

Cooling

 Natural convection

 Safety

Safety standards

 CE

 Withstand Voltage

Input-output withstand vol.

 3000Vac/10mA/1min

Input-FG withstand vol.

 1500Vac/10mA/1min

Output-FG withstand vol.

 500Vac/10mA/1min

 Others

Dimension

 212*58*29mm (L*W*H)

Packing







Applications:

* Digital and electronic products;

* Advisement player

* Electrical equipment, Instrumentation;

* Communications and security products.

* LED display,LCD TV, LED TV

* Display screen,LED video wall





Competitive Advantage:

* Ultra-thin 29mm

* High efficiency up to 90%

* Low output ripple and noise

* Output over-current,short-circuit,over-load,over-voltage protection

* Synchronous rectification+PFC

* Ultra-low start up temperature-40℃

* CE / ROHS / FCC approval
