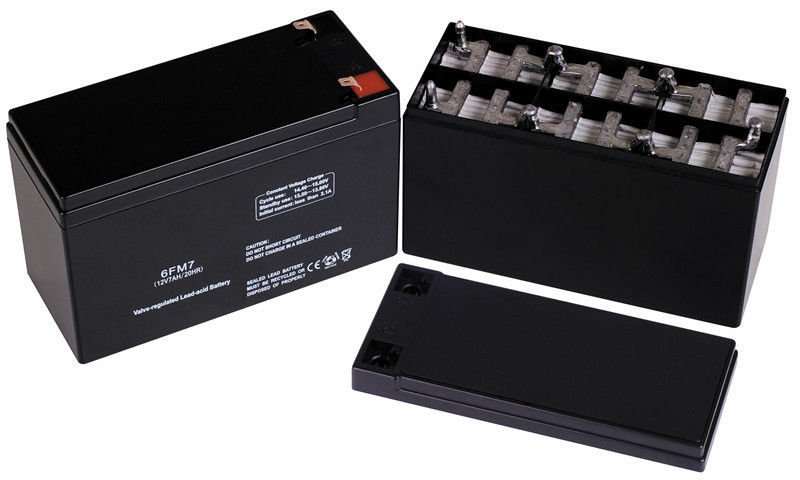

High Performance 7AH / 7.2ah / 7.5ah F250 12V Lead Acid Battery For Power Tools

High Performance 7AH / 7.2ah / 7.5ah F250 12V Lead Acid Battery For Power Tools

High Performance 7AH / 7.2ah / 7.5ah F250 12V Lead Acid Battery For Power Tools

Product Details:

Place of Origin: China
Brand Name: Champion
Certification: CE ; UL
Model Number: 6FM7; 6FM7.2; 6FM7.5

Payment & Shipping Terms:

Minimum Order Quantity: 100 pcs
Price: negotiation
Packaging Details: Carton box
Delivery Time: 25 days
Payment Terms: 30% in advance, T/T
Supply Ability: 1,000,000 pieces per month
Contact Now
Detailed Product Description
Model Name: 6FM7; 6FM7.2; 6FM7.5 Size: 151*65*94 Mm
Voltage: 12V Terminal: F250
Capacity: 7AH;7.2ah;7.5ah Color: Black
Weight: 2.1 Kg; 2.2 Kg; 2.3 Kg Application: UPS,Inverter,Solar Power

Sealed Lead Acid long life Battery 12V 7AH/ 7.2ah/ 7.5ah High Rate Battery for UPS



Description:



  • 5~8 years design life @ 20 °C(68 °F) ambient temperature,80% remaining capacity;
  • UL Recognized component;
  • Rechargeable VRLA batteries with an electrolyte retained in a glass mat with a very fine glass fibre structure.
  • High-Compression Absorbed Glass Mat technology (AGM) for over 99% recombination efficiency.
  • Proprietary Fixed Orifice Plate Pasting technology applying active materials on both sides of the grid for consistent cell-to-cell performance, higher capacity and uniform grid protection.
  • Perfect combination between energy storage performance and reliability;
  • Operates at a low internal pressure;
  • Low self-discharge rate (less than 3% / month @ 20 °C (68 °F);
  • Grid plate construction consisting of a Lead Calcium Tin alloy;
  • High impact resistant ABS resin cases and covers;
  • Available in V-0 Flame Retardant Material;
  • In compliance with IEC 896-2;
  • Wide operating temperature range;
  • Sealed construction for operation in any position.



Applications:



  • Uninterruptible power supplies
  • Solar system and wind system
  • Power tools
  • Security & fire alarm systems
  • Medical equipment
  • Monitoring equipment
  • Telecom equipment
  • Emergy lighting
  • Consumer electronics
  • Portable equipments
  • Marine instruments







Specifications:





High Performance 7AH / 7.2ah / 7.5ah F250 12V Lead Acid Battery For Power Tools

  • Nominal voltage: 4,6 & 12 volts
  • Grid alloy Lead: Calcium Tin alloy
  • Plates: Flat pasted
  • Container/cover: ABS resin (flame retardant V-0 on request)
  • Terminal: Faston Tab No.187 & 250, Copper insert
  • Electrolyte: Diluted sulfuric acid
  • Charge voltage: Float 2.25-2.30 VPC,
  • Cycling: 2.40VPC @20°C
  • Vent: Self sealing (2 PSI operation)





Competitive Advantage:



Cast welding technology

First class ABS container

Top lead of purity 99.994%

Low self-discharge

Long service life

Manufacture with more than 15 years history

Capable of high discharge rate

Best cost performance

High Rate Discharge special alloy battery plates
