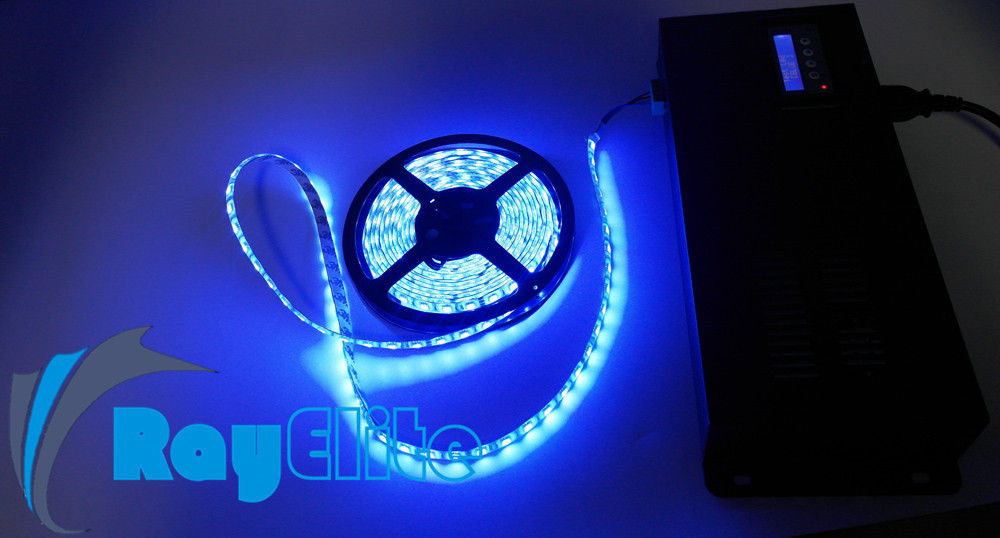

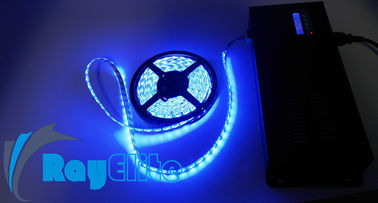

LED power supply with meanwell PSU DMX modes 8 channel led controller

LED power supply with meanwell PSU DMX modes 8 channel led controller

LED power supply with meanwell PSU DMX modes 8 channel led controller

Product Details:

Place of Origin: china
Brand Name: RayElite
Certification: CE, ROHS
Model Number: RT-DL144-B1

Payment & Shipping Terms:

Minimum Order Quantity: 10
Price: negotiation
Packaging Details: Carton box
Delivery Time: 14 days
Payment Terms: T/T
Supply Ability: 1000pcs/month
Contact Now
Detailed Product Description

LED power supply with meanwell PSU DMX modes 8 channel led controller



high power LED power supply, with meanwell PSU, compliant with Anolis Martin Abstract AVR



Quick Detail
Model Number: RT-DL144-A1
Brand Name: RayElite
Type: led constant current controller
Lamp Power (W): 144W
Input Voltage (V): 90-250V
Place of Origin: Guangdong China
Gross Weight: 1.6kg
Package Size: 194*135*70mm



Description
LED fixture offers unlimited colors to enhance your enviroment. The versativity natures and reliable performance of this product makes it ideal for all sectors of entertainment.



Specifications :

Model No.:: RT-DL144-B1
Power supply: 90-250V
DMX: 4ch,5ch,6ch,7ch,8ch DMX modes
Power output R,G,B,W 500MA 4CH output, total 144 watts
Upgrade software can be updated via dmx port
Control: DMX/AUTO/SLAVE/SOUND
display 2×16 blue LCD display
refresh rate refresh rate 1000HZ,suitable for TV studio
Dimension: 194*135*70mm
N.W.: 1.6KG
G.W 2KG
BOX SIZE 20*14*8CM




DMX MODE

In DMX mode, you have 5 modes to select according to programming requirement for your environment: 4ch, 5ch, 6ch, 7ch and 8ch mode.


TEST MODE

Test Mode is designed to test LEDs and fans if they are all working. 1. Press MENU botton to scroll top menu until Test Mode displays, press Enter button to enter Test Mode. 2. Use Up/Down button to select Test LED or Test Fan, then press Enter button to go to Test LED or Test Fan. 3. Press Up/Down to test Red, Green, Blue, All LEDs or test fan ON/OFF



SLAVE MODE
In Master/Slave operating mode, all Slave units are to be set to Slave Mode and Slave ID is required for each Slave unit. 1. Press MENU button go to System Mode, then use Up/Down button to select System Mode [Slave] and press Enter button to enter. 2. Use Up/Down button to set up a Slave ID number for that unit. The first Slave connected with the Master unnit is Slave ID [1], the next Slave units are Slave ID [2], Slave ID [3], and son on.


AUTO MODE
In this mode, you can combine 3 editable, 21 built-in programs and running time of each program without external DMX controller


Applications:

Disco and Club

Live performance

Stage show

architectural

Home decorate



Competitive advantages:
wall mount, high quality high efficency PFC power supply with CE RoSH SAA C-tick approval from meanwell, refresh rate 1000HZ for TV studio or stage venue,free flickering,RGBW 4CH 700MA output,high efficency high reliability, silent fan for cooling, new firmware updatable via DMX port.
