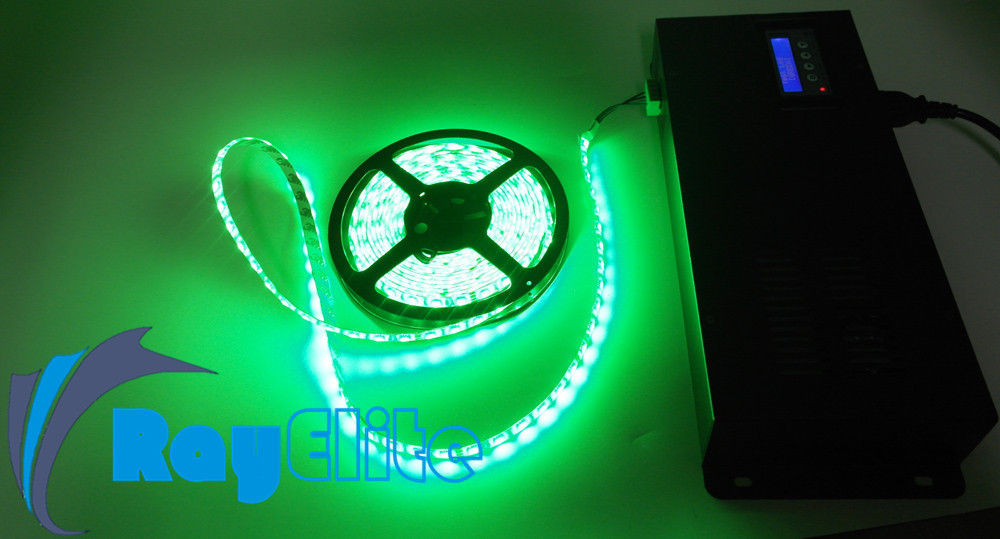

16 ways rack mount RGB Constant Current Led Driver 500mA for Disco and Club pixel LED modular

16 ways rack mount RGB Constant Current Led Driver 500mA for Disco and Club pixel LED modular

  • 16 ways rack mount RGB Constant Current Led Driver 500mA for Disco and Club pixel LED modular
16 ways rack mount RGB Constant Current Led Driver 500mA for Disco and Club pixel LED modular
Product Details:
Place of Origin: china
Brand Name: RayElite
Certification: CE, ROHS
Model Number: DL576-B
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: negotiation
Packaging Details: Carton box
Delivery Time: 14 days
Payment Terms: T/T
Supply Ability: 1000pcs/month
Contact Now
Detailed Product Description
High Light:

led current controller

,

high power led driver

16 ways rack mount RGB Constant Current Led Driver 500mA for Disco and Club pixel LED modular





500mA 16 ways rack mount RGB CC driver, for pixel LED modular solution, CE approved




Quick Detail
Model Number: RT-DL576-B
Brand Name: RayElite
Type: led constant current controller
output: 16 ports, RGB 3CH, 48V/500MA per port
Input Voltage (V): 90-250V
Place of Origin: Guangdong China

Gross Weight: 6kg

Package Size: 482*252*88mm





Applications:

Disco and Club
Live performance
Stage show
architectural
Home decorate




Specifications :


Model No.:: DL576-B
Power supply: 90-250V
Power consumption: 576w
Power output 16 ports, RGB 3CH, 48V/500MA per port
Upgrade software can be update via USB
Control: DMX/AUTO/SLAVE/SOUND
dmx 96ch DMX channels control
Water proof IP 20
Dimension: 482*252*88mm
N.W.: 6KG
G.W 7KG
BOX SIZE 50*26*90CM



Competitive advantages:
rack mount, high quality high efficency PFC power supply with CE RoSH SAA C-tick approval from meanwell, refresh rate 1000HZ for TV studio or stage venue,free flickering,individual DMX address for each port, it's perfect pixel LED modular solution, new firmware updatable via USB port.
