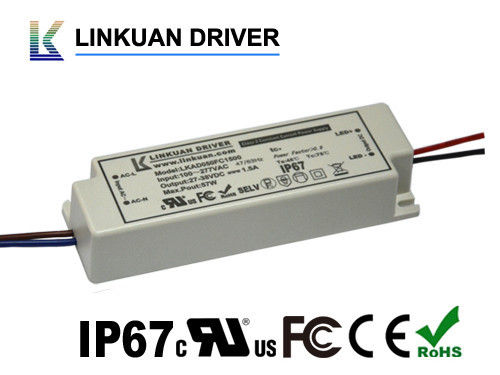

FCC UL Listed Constant Current LED Driver 1500mA 30-57W
LKAD050FC1500
1.Input:100-240/277VAC(50/60 Hz) THD <10% PF>0.95;
2. Output: 20-42VDC 1200-1500mA;
3.UL,FCC and RoHS certification;
4.Size(mm):L1382×W44×H26
■ 100-240/277AC(50/60Hz) input;
■ Isolated topology;
■ Hight efficiency and PF,Hipot 4KV,Surge test >6KV (can be up to 10KV),good stability;
■ The copper wire of transformer is Grade F,resist high-temperature 155℃(usually 120℃);
■ THD:<10%,Current accuracy:+/-3%;
■ short circuit,over voltage,over current and over temperature protection;
■ 100% full load burn-in test;
■ independent, ClassⅡconstant current type;
■ degree of protection IP20, IP65 or IP67;
■ UL and FCC and RoHS certification;
■ used for indoor or outdoor LED lighting and so on;
■ 3 years warranty.
-- Electronic Specification --
Model | Size | Input | Output | |||||
Voltage(VAC) | Efficiency | PF | THD | Voltage(VDC) | Current(mA) | Power(W) | ||
LKAD050FC1200 | L138×W44×H26 | 100-240/277 | 88% | 0.99 | <12% | 20-38 | 1200 | 24-46 |
LKAD050FC1500 | 88% | 0.99 | <12% | 18-42 | 1500 | 30-57 |
