Product Details:

Place of Origin: CHINA
Brand Name: WLINK
Certification: CE, ROHS
Model Number: WL-R210LH-d

Payment & Shipping Terms:

Minimum Order Quantity: For WLINK brand, MOQ 1 unit, For OEM MOQ 50 units
Price: negotiation
Packaging Details: One set to one box, 20 units boxes to one carton
Delivery Time: Stock for small quantity, 5-7 working days for bulk order
Payment Terms: TT, L/C, Paypal, Western Union or Cash in advance
Supply Ability: 5000 sets / Per month
Contact Now
Detailed Product Description
Products Name: LTE 4G Router Type: Industrial Class
Wireless Standard: IEEE 802.11n 4G Module: Embeded Huawei 4G Module
Mount Type: Wall Mount Or DIN Rail Mount Interface: 2 * LAN (1 * LAN, 1 * WAN Optional)
Frequency Band: 3G 900/200MHz

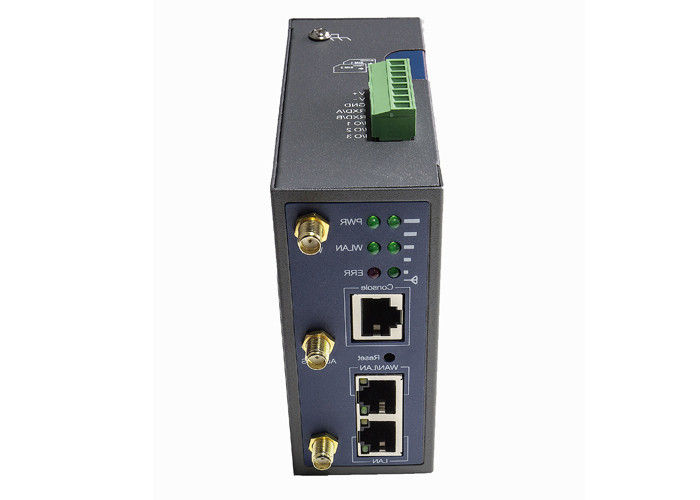

Wall Mount / DIN Rail Mount OpenVPN wireless router , 4G Dual SIM Router



With multiple connectivity options, the WL-R210LH-d under R210 series router is a rugged and versatile router suitable for a diverse range of industrial M2M applications. It can provide solutions for industrial applications including video streaming, monitoring, broadcast and vehicle telemetry. the R210 router is an adaptable, multi-purpose device for all your data needs.



The WL-R210LH-d features dual-SIM capabilities which provides advanced redundancy functionality.

It aslo optional  features GPS capability, enable it ideal for fleet tracking or access management.



As a special highlight WLINK R210 router offers two Ethernet ports that are highly configurable. Used as LAN ports they form a two port switch or have separated, routed IP networks. Configured as WAN port, an external modem or land line can be attached in order to add redundancy.



The RS-232 serial interface can act as serial device server or system console. Legacy equipment that does not have any Ethernet or USB port can be hooked up this way. Furthermore, the serial line can be assigned to the SDK and be controlled from there.



The router firmware supports common VPN technologies such as IPsec and OpenVPN. Simple handling of a Public key infrastructure makes is easy to connect two router trough a VPN tunnel.



Further services include DHCP server, DNS proxy server, DDNS agent, SNMP agent, telnet server, SSH server, web server, e-mail client and SMS client. The device is administrated via an easy to use web GUI or the command line interface. Over the air software update is both easy and fail-safe.


Basic Feature

  • Industrial robust design and compact metal housing
  • High data speed via 4G and 3G network, 2.5G backward compatible
  • Dual SIM for redundancy between two network
  • Strong electromagnetic interference Resistance
  • Heat endurance and radiation ability
  • Built-in watch dog, Multi-link detection
  • Ultra security, VPN: OpenVPN, PPTP, L2TP, GPE, IPSec VPN
  • 802.11b/g/n Wi-Fi support, 150Mbps data rate
  • High Reliability: Hardware l ink self-recovery
  • WAN port support PPPoE, static IP, DHCP client.
  • Failover or Backup between WAN and Cellular
  • Always online, reboot automatically if disconnected to ensure continual connection
  • Support APN and VPDN wireless private network access in
  • LCP/ICMP/flow/heartbeat check, ensure network usability
  • Web/CLI/SSH/Management platform support, easy configure
  • SNMP network management, NTP support
  • Local & remote management (configuration, status, upgrade firmware)
  • Supports DHCP Server
  • Supports DNS proxy and Dynamic DNS (DDNS)
  • Supports timing operation
  • Supports LED status indication
  • Shock and vibration resistant


   Advance Optional Feature

  • Optional Network Type includes FDD-LTE / TDD-LTE / HSPA+ / HSPA /UMTS / WCDMA 3G and EVDO 3G.
  • GPS capability optional for fleet management or other tracking application
  • Dual SIM Dual Module optional available for fast switch and backup between two network
  • DTU serial communication function optional
  • M2M Management platform software option al available
  • OpenVPN Optional
  • OpenWRT Optional
  • PPTP Sever optional
  • Schedule reboot optional
  • Customized acceptable


Specification


Specification

OptionalSupport

Mobile Network

◎ LTE-FDD 800/850/900/1800/2100/2100MHz

HSPA+ 3G 900/2100MHz or 850/1900MHz
◎ EDGE/GPRS 850/900/1900/2100MHz

Ethernet Standard

◎ IEEE 802.3
◎ IEEE 802.3u

Interface

◎ 2×10/100Mb LAN interface
◎ 1xLAN, 1xWAN optional
◎ 1× RS-232 console port(optional)

◎ 3× digital Input / Output
◎ 3× SMA-K antenna interface
◎ 2× Standard SIM/R-UIM interface
◎ 1× Standard DC power interface

LED instruction

◎ PWR

◎ Signal

◎ WLAN

◎ ERR

◎ LAN (LAN, LAN/WAN)

Route protocol

◎ Static route

◎ RIPv2/OSPF dynamic route

Power Supply

◎ 7.5~32VDC

Device
management

◎ Local or remote web browser (IE v8 or above)
◎ CLI/Telnet command
◎ M2M management platform (optional)
◎ SSH configure (optional)

WiFi

◎ Standard: IEEE 802.11b/g/n
◎ WEP, WPA and WPA2 encryption
◎ Standard 150Mbps, 300Mbps optional
◎ AP, Client, station, bridge mode support

Firewall & Filter

◎ IP packet/Domain/MAC filter
◎ NAT
◎ DMZ

VPN

◎ OpenVPN

◎ IPSec
◎ PPTP/L2TP client
◎ GRE/IPIP

Power
Consumption

◎ Idle: 80mA@+12VDC
◎ Single Module Communications: 320mA@+12VDC

Other

◎ Dimension: 102mm x 100mm x 42mm (not including antenna)
◎ Weight: 350g
◎ Operation temperature: -30~+70℃
◎ Store temperature: -40~+85℃
◎ Related humidity: <95% (non-condensing)
◎ Guarantee: one year

Standard

EN 300 328 v 1.7.1 (2006-10)
EN 301 489-17
EN 301 489-1

EN 301 511
EN 301 908-1

EN 301 908-13

EN 60950-1,
EN 55024:2010              EN 61000-3-2
EN 61000-3-3:2008

EN 62311:2008
EN55022:2010/

AC:2011

Approval

CE
RoHS
CCC





Applications:


Application

Energy

 Digital Oil Field, Coal Mine, Solar, Smart Grid,

Utilities

 Smart City, Traffic, Street lighting, Public Safety, 4G Public hotspot, Environment monitoring, Video Surveillance

Industrial

 Remote Telemetry, Tanking Monitoring, Automation, Remote PLC, Remote AMR, Remote Monitoring and control

Retail

 ATM, POS(Point-of-Sale), Vending Machine, Lottery Machine, Branch network, Digital Signage, Video Surveillance, failover between WAN&4G/3G

Transportation

 Bus WiFi, WiFi on Board, Vehicle video surveillance, Fleet tracking and management, Bus Advertising



Competitive Advantage:

  • WLINK Router are Industrial grade design which can endure high and low temperature and other extreme application environment
  • WLINK has ability to produce a quality product at a economic cost to meet the market and project requirement.
  • Strong R&D Team who have 10+ year experience in M2M cellular field
  • WLINK always provide the best pre-sale and after sale service to customer

Package:

                             Wall Mount / DIN Rail Mount OpenVPN wireless router ,  LTE 4G Dual SIM Wireless Router
