Gaoxin Industrial Park,Guangming New Zone,Shenzhen City, Guangdong Province, China | Angelwang66@126.com |
Place of Origin: | Shenzhen China |
Brand Name: | AXNEW |
Certification: | CE/FCC/ROHS |
Model Number: | AXD-15OPIPN1P1(VGA/DVI-D) |
Minimum Order Quantity: | 10 pcs |
---|---|
Price: | US$100~300/pcs |
Packaging Details: | 5 Pcs /Carton with firm foam |
Delivery Time: | 10 working days |
Payment Terms: | T/T, Paypal, Western Union |
Supply Ability: | 2000 pieces/month |
Brightness: | 400cd/m^2 | Contrast Ratio: | 700:1 |
---|---|---|---|
Screen Size: | 15 Inch | Feature: | High Definition|slim|thin |
Input Signal: | VGA;DVI; USB For Touch Use Only | Installation: | Panel Mount |
Monitor Type: | Square Screen| IR Touch Screen | Panel Type: | TFT LED Based LCD |
Product Name: | Industrial Touch LCD Monitor | ||
High Light: | high definition LCD monitor,Wall Mounting LCD monitor,Wide screen LCD monitor |

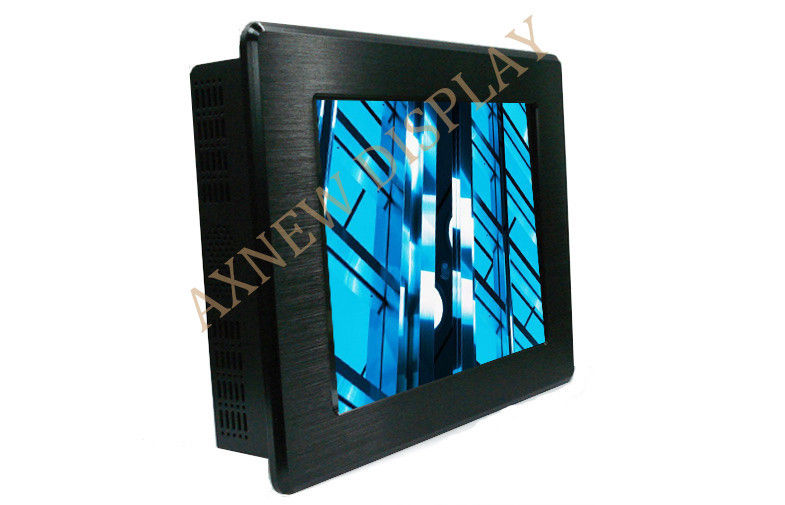

High Definition Wall Mounting 15" IR Touch LCD Monitor IP65 Front Bezel
Display Specifications |
|
Display |
15" Color TFT Industrial Monitor |
Model Name |
AXD-15OPIPN1P1 |
Active Display Area (mm) |
304.1(H)x228.1(V) |
Pixel Pitch (mm) |
0.297(H)x0.297(V) |
Resolution (Pixel) |
VGA (1024x768)6 bit + FRC |
Brightness (CD/m^2) |
400cd/m^2 |
Contrast Ratio |
700:1 |
Viewing Angle (CR >=10) |
160/140 |
Power consumption |
18 W typical, normal operation |
Touch Screen | |
Touch Type | IR anti-vandal Touch |
Surface Hardness | 6H |
Durability | 50 Million Touches |
Transparency | 92% |
OSD Control | On the back side |
I/O Connectors | 1x12v,1XVGA,DVI-D |
Power Input | DC 12V,4A 48W |
Mechanical Specifications | |
Construction | Aluminum front bezel &Black Color |
Dimensions | 378.4x 295.4x 56.0(mm) |
Mounting | Embedded ,vesa75x75;100x100 Wall Mounting Optional |
Power source | AC 100~240V/ 12V DC |
Environment Specifications | |
Operating Temperature | -20~80℃ |
Storage Temperature | -30~80℃ |
Ordering Information | 15” IP Monitor with VGA input and power adapter |
Packaging & Delivery
Packing details |
5x 15 Inch Industrial lcd Touch screen Monitor; Packed in 5 pieces/carton with protection foam Optional accessories: 1xVGA, 1x Power supply cable, 1x power adapter |
Delivery terms | 10 working days for stock products after receiving payments; 15working days for order production |
Features and Advantages
1.New and Industrial A grade perfect panels with stable supply
2. industrial control board supports the displays working 24 hours
3. Professional and industrial hardware and parts to guarantee its working normally in rough environment, Aluminum Front Bezel with rugged housing
4. Industrial design to protect the LCD screen, mounting on the outdoor application
5. VGA DVI interfaces ;IR anti-vandal IP65 treatment.
Contact Person: Miss. Angel
Tel: 1598940345
Fax: 86-755-3697544
