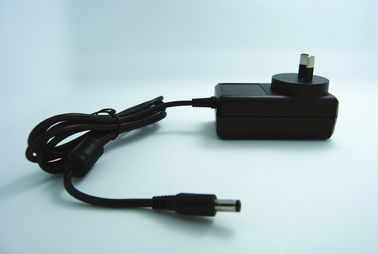

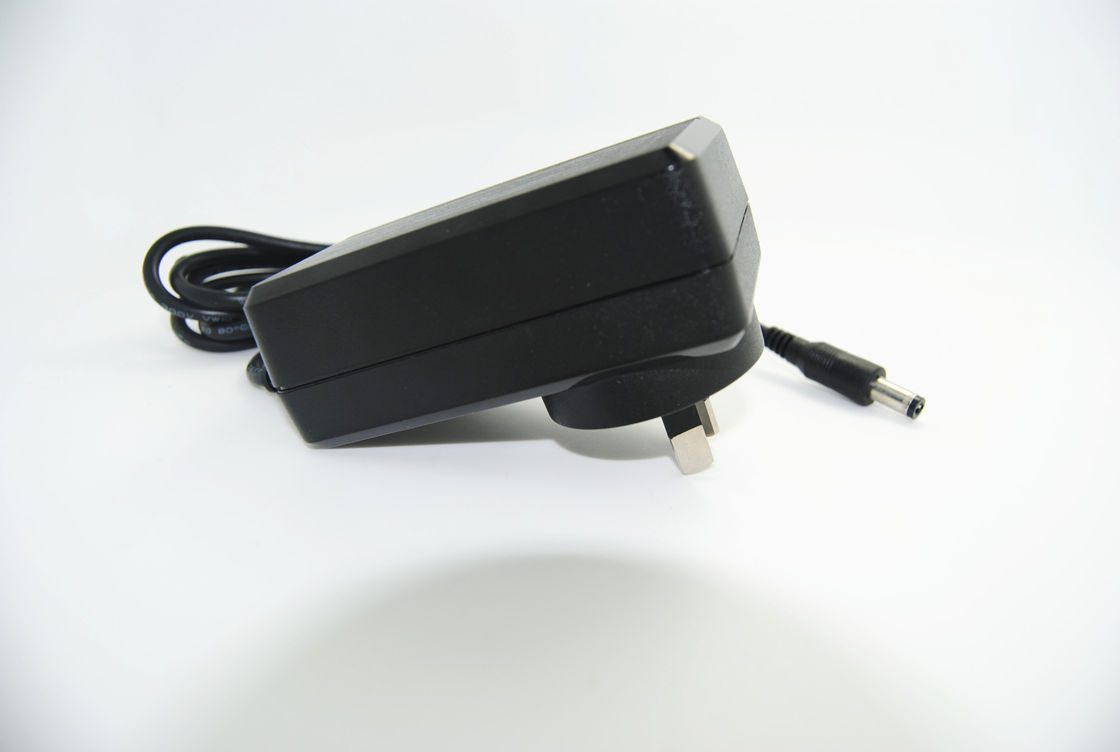

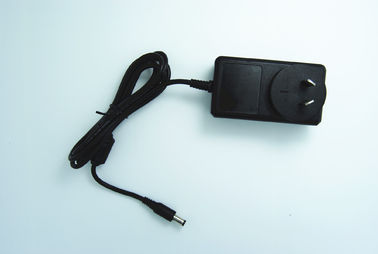

230V AC Input with 18V 2A 36W DC Output Wall Mount Power Adapters for AU Socket

230V AC Input with 18V 2A 36W DC Output Wall Mount Power Adapters for AU Socket

    • 230V AC Input with 18V 2A 36W DC Output Wall Mount Power Adapters for AU Socket
    • 230V AC Input with 18V 2A 36W DC Output Wall Mount Power Adapters for AU Socket
    • 230V AC Input with 18V 2A 36W DC Output Wall Mount Power Adapters for AU Socket
  • 230V AC Input with 18V 2A 36W DC Output Wall Mount Power Adapters for AU Socket

    Product Details:

    Place of Origin: China
    Brand Name: WT
    Certification: UL/CUL, PSE, TUV/GS, CE, CCC, SAA and ROHS
    Model Number: WT1802000
    Contact Now
    Detailed Product Description



    230V AC Input with 18V 2A 36W DC Output Wall Mount Power Adapters for AU Socket



    Quick Details:

    • Input voltage: 100 to 240V AC, 50/60Hz
    • Output voltage: 18V 2A
    • Power: 36W
    • Dimension (L x W x H): 96.2*44.4*34.2mm
    • Socket type: AU plug, 2 pins
    • Application: Digital Picture Frame, Video Telephone, LED Lights, LCD Monitors, etc



    Description:



    1. Surface cosiness, small size and convenient carrying

    2. Low cost, high reliability and all cases are covered by ultrasonic

    3. Built-in OVP, OCP and SCP

    4. Universal input voltage:

    a. I/P voltage 100-240VAC; 50/60Hz

    b. Turn on delay time≤3s

    c. Inrush current≤30A/24V AC

    5. O/P:

    a. High accuracy and low noice

    b. Hold up time ≥20mS

    6. Operation model: CV

    7. Environment:

    a. Operation temperature: 0°C-40°C;5%-90%RH

    b. Storage temperature: -20°C-85°C;5%-95%RH

    8. Cooling: Natural cooling

    9. Energy standard: CEC/ERP

    10. Safety standard: IEC/EN60950

    11. Insulation: hi-pot, 3,000V AC 60S 10mA

    12. Leakage current: 0.25mA (maximum)

    13. MTBF: MIL-HDBK-217F, full load, 25, more than 50,000 hours

    14. RoHS compliant



    Warranty:

    1 year

    Certification:

     UL/CUL, PSE, TUV/GS, CE, CCC, SAA and ROHS

    Usage:

    Digital Picture Frame, Video Telephone, LED Lights, LCD Monitors, etc

    Packaging:



    a. PE bag+ white box  84pcs/carton

    b. PE bag without white box  100pcs/carton

    Place of Origin:

    China(Mainland)

    Brand Name:

    WT

    Model Numeber:

    WT1802000

    MOQ:

    500 pcs

    Delivery Time:

    15 Days

    Payment Terms:

    T/T(30% in advance, 70% the balance must be paid before the delivery)

    Supply Ability:

    8000 PCS/Day





    Our Advantages:

    • Professional&experienced engineers
    • Good quality
    • Competitive price
    • Intime service
    • Free samples available
    • About 10 years experiences
    • OEM/ODM services are highly welcome
    • Flexible to meet dynamic requirements
    • High technology
    • Short Lead time
    • AC input power suitable for the world
    • Soft-start current can reduce the AC input impact efficiency
    • With short-circuit and overload protection
    • Compact size ,light weight
    • 100%full-load burning test
    • Installed with EMI filter ,minimum wave
    • Fashionable design
    • Small size
    • Low-ripple and noise
    • High-efficiency



    Some Using Details:

    • Do not install power supply in locations with high humidity, dust or strong direct sunlight.
    • Connect power supply to the supplied unit.
    • Power supply must be connected to a working electrical AC line with a voltage of 100-240V.
    • Power supply can only be installed indoors.
    • The power supply should be installed in a location with good airflow.
