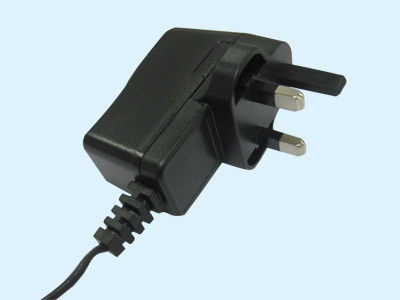

BS Plug Wall Mount Power Adapter For Digital Audio Products , 6V 1.5A Class II power

BS Plug Wall Mount Power Adapter For Digital Audio Products , 6V 1.5A Class II power

BS Plug Wall Mount Power Adapter For Digital Audio Products , 6V 1.5A Class II power

Product Details:

Place of Origin: China
Brand Name: Panfore
Certification: CE,ROHS, FCC,CB,C-TICK
Model Number: P060W1500B
Contact Now
Detailed Product Description

BS Plug Wall Mount Power Adapter For Digital Audio Products , 6V 1.5A Class II power


Feature:

. Universal AC Input / Full Range
. BS plug
. Class II power
. No load consumption < 0.3W

. Protections : Overload , Short Circuit , Over Voltage
. Warranty : 2 years


Description :



6V1.5A BS Plug Wall Mount Power Adapter For Digital Audio Products

Electronics Specification :

Input Voltage Range:

90~264Vac

AC current:

0.3A

Frequency:

50/60Hz

Inrush Current:

30A/230Vac

Leakage Current:

0.25mA/240Vac

Output Voltage:

6.0Vdc

Output Voltage Range :

5.7 ~ 6.3 Vdc

Output Current :

1.5A

Efficiency :

> 75%

Ripple and Noise :

< 60mVp-p

Line regulation:

±1%

Load regulation:

±5%

Efficiency:

Meet energy star level V

Over current protection:

Hiccup mode, Auto recovery

Over voltage protection:

Power shutdown, Auto recover

Environment :

Working Temp.:

0~40℃

Working Humidity:

20%~90% RH non-condensing

Storage Temp. & Humidity:

-20℃~85℃, 10%~95% RH

Reliability :

Hi-Pot Testing Voltage :

I/P to O/P : 3.0 (60Sec.) KVac

Safety Standard :

EN60950

EMI Standard :

EN55022B

Safety Approval :

Certificate

CE, FCC, C-TICK

Mechanical Characteristics :

Size:

74.5mm * 30mm * 40mm (L*W*H)

AC connector

BS plug

DC Cable:

1.8M

DC connector:

5.5*2.1*12mm, other type connector avaible



Applications :

widely used in household appliances, IT digital products,  medical equipments, communication equipments, instrumentations, bank data equipment, computer peripheral products, security monitoring system, industrial and light field equipment and other products.
