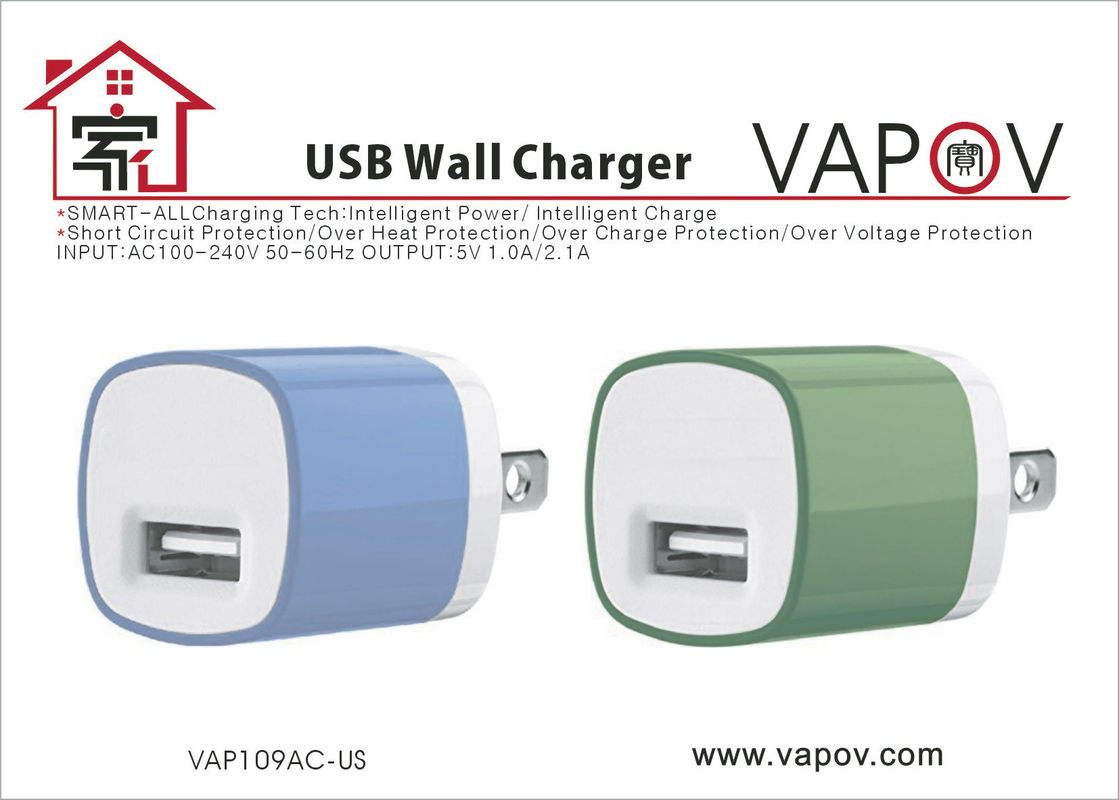

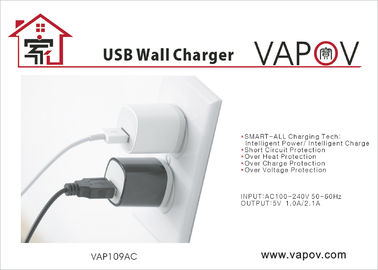

FCC PSE approved 1.0A single usb travel charger adapter , intelligent mobile phone usb charger

FCC PSE approved 1.0A single usb travel charger adapter , intelligent mobile phone usb charger

  • FCC PSE approved 1.0A single usb travel charger adapter , intelligent mobile phone usb charger
  • FCC PSE approved 1.0A single usb travel charger adapter , intelligent mobile phone usb charger
FCC PSE approved 1.0A single usb travel charger adapter , intelligent mobile phone usb charger
Product Details:
Place of Origin: China
Brand Name: VAPOV
Certification: CE FCC
Model Number: VAP109AC
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: negotiation
Packaging Details: Color Box/Card Outside+Blister Inside Or Customized
Delivery Time: 25 working days
Payment Terms: 30% deposit, T/T, L/C, Western Union,Paypal
Supply Ability: 300000 pcs per month
Contact Now
Detailed Product Description
Output: 5V 1.0A/2.1A Type: Single Usb
Size: 42*29*29 Shell: PC+ABS
Protection: Short Circuit Over Charge Over Heat Over Voltage Application: IPhone, IPad, Android Mobile Phone, Tablet,GPS, Game Player
Standard: CE
High Light:

2.1A USB Wall Charger

,

micro usb wall charger



FCC PSE approved 1.0A single usb travel charger adapter , intelligent mobile phone usb charger





1. Product Features

   SMART-ALL Tech:Intelligent Power/Intelligent charging

         Automatically identify devices( Apple, Android, Samsung etc mobile phone and  tablet) and charge            devices at the most optimized output

2. Input Features:



       1) Rated input voltage: AC100-240V 50-60Hz



       2) Input voltage range: DC90-260V



       3) Efficiency: 80-91%



3. Output characteristics:



   Rated output

5V 1A/1.2A/ 2.1A

Specification limits

Remark

Min value

Max value

Unload output voltage

+4.9VDC

+5.3VDC



Full load output voltage

+4.75VDC

+5.25VDC



Output current

0

1.0A/2.1A



Cc mode rate load cold ripple



mV



Over current protection



A

Adjustable

Turn-on delay time



≤3S



Hold-up time

8mS



Full load





4. Protective properties:



 1) Over current protection



    When output current is greater than the setted one under any input conditions,the protection mode will be on;However,if output current become lower than the setted one, the charger will automatically restart its work.



 2) Short circuit protection



When short circuit occurs under any conditions, the protection mode will play its role. But after its disappearring, the charger will automatically restart work again.



 3) Over temperature protection



After the charger have been worked for a long time, if the temperature is higher than that of IC set , the protection mode will be on; However, if the temperature drops to IC set temperature again, the charger will automatically restart work as well.mode is on, if the temperature drops to IC set temperature again, the charger will automatically restart work.



 4) Over voltage protection



When output voltage is greater than the setted one, the protection mode will be on. But if the output voltage drops to the setted one again, the charger will automatically restart its work.
