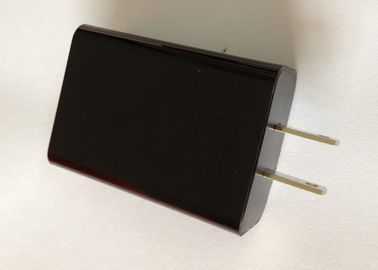

Cell Phone Power Adapter For Travel , US 2 Pins USB Travel Power Adapters 50Hz / 60Hz

Cell Phone Power Adapter For Travel , US 2 Pins USB Travel Power Adapters 50Hz / 60Hz

    • Cell Phone Power Adapter For Travel , US 2 Pins USB Travel Power Adapters 50Hz / 60Hz
    • Cell Phone Power Adapter For Travel , US 2 Pins USB Travel Power Adapters 50Hz / 60Hz
    • Cell Phone Power Adapter For Travel , US 2 Pins USB Travel Power Adapters 50Hz / 60Hz
  • Cell Phone Power Adapter For Travel , US 2 Pins USB Travel Power Adapters 50Hz / 60Hz

    Product Details:

    Place of Origin: China
    Brand Name: Panfore
    Certification: CE,ROHS,REACH
    Model Number: A050W2000U
    Contact Now
    Detailed Product Description

    Cell Phone Power Adapter For Travel , US 2 Pins USB Travel Power Adapters 50Hz / 60Hz

    Feature:

    . Full Range Input Voltage
    . 2 US Pins
    . Class II power (Without Earth Pin)
    . No Load Consumption < 0.3W
    . Protections: Overload, Short Circuit
    . 2 Years Warranty


    Description :
    US 2 PinS  5V2A USB Travel Power Adapter For All Cell Phone

    Electronics Specification :

    Input Voltage Range:

    90~264Vac

    AC current:

    0.2A

    Frequency:

    50/60Hz

    Inrush Current:

    30A/230Vac

    Leakage Current:

    0.25mA/240Vac

    Output Voltage:

    5.0Vdc

    Output Voltage Range:

    4.75Vdc ~ 5.25 Vdc

    Output Current :

    2000mA

    Line regulation:

    ±1%

    Load regulation:

    ±5%

    Efficiency:

    Meet energy star level V(Erp)

    Over current protection:

    Hiccup mode, Auto recovery

    Over voltage protection:

    Power shutdown, Auto recover

    Environment :

    Working Temp.:

    0~40℃

    Working Humidity:

    20%~90% RH non-condensing

    Storage Temp. & Humidity:

    -20℃~85℃, 10%~95% RH

    Reliability :

    Hi-Pot Testing Voltage :

    I/P to O/P : 3.0 (60Sec.) KVac

    Safety Standard :

    EN60950

    EMI Standard :

    EN55022B

    Safety Approval :

    Certificate

     CE

    Mechanical Characteristics :

    Size:

    65mm*40mm*32mm (L*W*H)

    AC connector

    2 US Pins

    DC connector:

    USB



     Applications:

    Widely Charge For IPAD , IPHONE , Samsung, Sony Ericsson , HTC Wildfire , Blackberry , etc. All Smartphone Models , And Digital Products.
