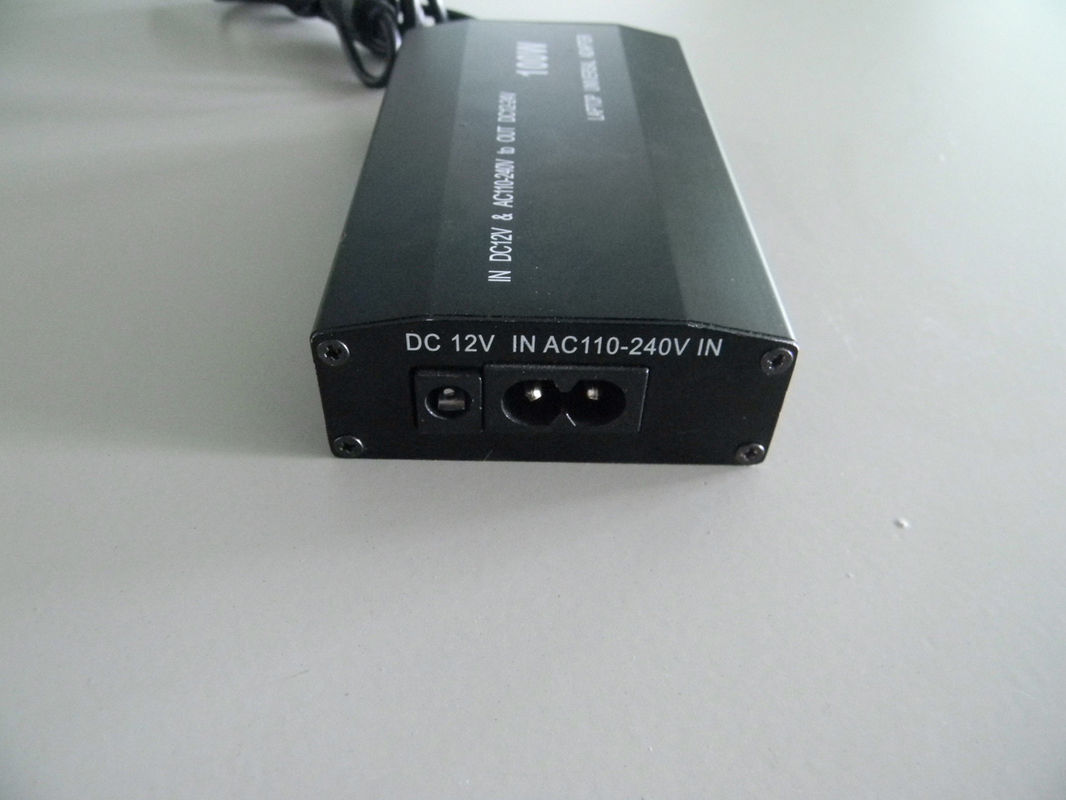

DC 12V Metal Case Universal Laptop Power Adapter 100W for Acer / Toshiba

DC 12V Metal Case Universal Laptop Power Adapter 100W for Acer / Toshiba

    • DC 12V Metal Case Universal Laptop Power Adapter 100W for Acer / Toshiba
    • DC 12V Metal Case Universal Laptop Power Adapter 100W for Acer / Toshiba
  • DC 12V Metal Case Universal Laptop Power Adapter 100W for Acer / Toshiba

    Product Details:

    Place of Origin: Shenzhen,China
    Brand Name: RAYTOP
    Certification: CE, RoHS, FCC, UL
    Model Number: RT-ULA-100W2-03S

    Payment & Shipping Terms:

    Minimum Order Quantity: 100 PCS
    Price: Negotiable
    Packaging Details: Gift box or blister package,20 pcs per carton, customer package available.
    Delivery Time: 15-20 work days.
    Payment Terms: T/T, L/C
    Supply Ability: 30000 Pcs monthly.
    Contact Now
    Detailed Product Description
    Product Name: 100W Universal Laptop Combo Charger DC Input: 11-14V
    AC Input: AC100-240V, 50/60Hz, 1.8A Output: 12/15/16/18/19/20/22/24VDC
    USB Output: 5V 800mA AC Plug: EU, UK, US, SAA, CCC
    Enclosure: Metal Power: 100W
    Application: Acer,Asus, Toshiba,Sony, Lenovo,Delta, HP, IBM, Gateway, Liteon Protections: SCP, OVP, OCP, OTP

    DC12-24V Output Metal Case 100W Universal Laptop Car/ Home Charger for Acer/ Toshiba





    Description:



    This is an universal laptop AC Adapter come with aluminum enclosure. 10 Tips ensure great compatibility with most top brand notebooks, such as Acer, Asus, Toshiba, Sony, Delta, HP/Compaq, Lenovo, IBM,Gateway, Liteon etc. The users can adjust the slider on the side of the adapter to get different output voltage 12/15/16/18/19/20/22/24VDC



    Notice: Please select correct output voltage before connecting the adapter with your laptops.



    Input:DC11-14V;

            AC100-240V, 1.8A max.

    Output: DC12/15/16/18/19/20/22/24V

    USB Output: 500V 800mA

    AC Cable: 2x0.75mm2, or 3x0.75mm2 length: 1.2M

    DC Cable: 18AWG, Copper, length: 1.2M

    AC Plug: EU, UK, US, SAA, CCC

    Approval: CE, RoHS, FCC

    Warranty: 1 years

    Contents: 1Adapter + 1AC Cable+1DC Cable +10 Connectors



    DC 12V Metal Case Universal Laptop Power Adapter 100W for Acer / Toshiba





    Features:



    - Worldwide input voltage 100~240Vac;

    - Car charger for vehicle using;

    - High efficiency, up to 82%;

    - Protection: Short circuit protection, over voltage protection, over current protection.

    - 10 different output connectors for top brands laptops.

    - 100% burn-in test.



    Specifications:



    Input

    Rated Input Voltage

    AC100~240V

    Input Voltage Range

    AC 90~264V

    Rated Frequency

    50/60 Hz

    Input Frequency Range

    47~63 Hz

    Input AC Current

    1.8A

    Inrush Current

    30A

    Output

    Rated Output Voltage

    DC 12~24V

    Output Voltage

    DC12/15/16/18/19/20/22/24V

    USB Output 5V 800mA

    Rated Output Current

    4.5A

    Rated Power

    100W

    Ripple and Noise

    120mV p-p

    Standby Power Consumption

    0.5W

    Turn-on

    5s

    Hold-up

    20s

    Over Voltage Protection

    Yes

    Over Current Protection

    Yes

    Short Circuit Protection

    Yes, automatically recover after short circuit removed.

    Reliability

    Hi-pot

    3000Vac

    Insulation Resistance

    Input to output at 500Vdc

    Leakage Current

    5mA

    EMI Standards

    FCC Part 15B Class B

    RoHS Compliant

    Yes

    MTBF

    50,000 hours

    Burn-in

    40+/-5 ℃, full load, 4 hours

    Drop Test

    6 direction, each one time from height 1.0M

    Environmental

    Operating Temperature

    0~40℃

    Operating Humidity

    10~80%

    Storage Temperature

    -20~65℃

    Storage Humidity

    0~90%

    Safety Approvals

    CE, RoHS, FCC, UL, SAA

    Warranty

    1 Years



    Applications:



    External power supply, used to charge most top brand laptops/notebooks, such as Acer, Asus, Toshiba, Sony, Delta, HP/Compaq, Lenovo, IBM,Gateway, Liteon etc. It can also charge personal devices like smart phones, portable DVD, PDA, MP3,MP4 and so on simultaneously when using your laptops.





    Competitive Advantage:



    - Open private model w/o extra cost for you;

    - 0.3% free backup of order quantity;

    - Direct factory price without middle man.

    - High performance-to-price ratio;

    - Perfect after-sales service
