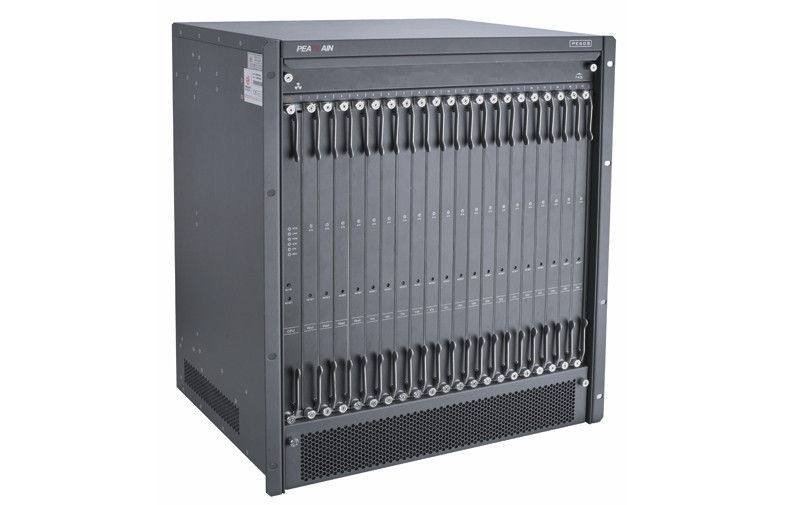

512x64 CE UL Approved CCTV Analog Video Matrix Switcher for Video Matrix System

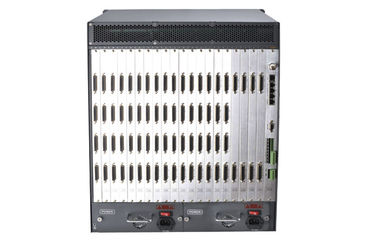

512x64 CE UL Approved CCTV Analog Video Matrix Switcher for Video Matrix System

    • 512x64 CE UL Approved CCTV Analog Video Matrix Switcher for Video Matrix System
    • 512x64 CE UL Approved CCTV Analog Video Matrix Switcher for Video Matrix System
  • 512x64 CE UL Approved CCTV Analog Video Matrix Switcher for Video Matrix System

    Product Details:

    Place of Origin: China
    Brand Name: pearmain
    Certification: CE, UL
    Model Number: PE60S

    Payment & Shipping Terms:

    Minimum Order Quantity: 1unit
    Price: negotiation
    Packaging Details: special shipping carton, 67x61x58cm, 30kgs
    Delivery Time: 7 working days
    Payment Terms: T/T, L/C, Western Union
    Supply Ability: 100units per week
    Contact Now
    Detailed Product Description
    Input: 512ch Output: 64
    Communication: Software To Set All Parameter Of Matrix Dual CPU: External Dual CPU
    Dual Power: Dual Power Supply Unit

    PE60S Full cross-point analog Video Matrix switcher , Pearmain modular matrix system ,  UL certified



    Quick Detail:



    ● Microprocessor-Based, Full Cross-Point Video Matrix.

    ● Modularization Design Supports Up To 512 Cameras And 64 Monitors In Each Matrix Bay

    ● Control Up To 50,000 Cameras And 512 Monitors On Base Of System Extension.

    ● System Diagnostic Leds Displayed On Front  Panel.

    ● Logical Camera Selection And Priority Level Operation & Configuration In Matrix Software

    ● Built-In Video Loss Detection

    ● Windows-Based System Management Software, Includes Multilingual Menus And On-Screen Help

    ● Factory Tested Prepackaged System Configuration And Quick-Guide Manual.

    ● Including ASCII Data, DVR, PTZ, Network, Etc. Protocol

    ● Powerful Macro Programming

    ● CE, FCC, ROHS,UL compliant



    Description:



    PE60S is Network Modular Matrix, one matrix bay can have up to 512ch video input & 64ch video output, can extend to 65535ch input, Dual CPU & Dual Power supply for Plug & play and seamless switching.

    Redundant Dual CPU & Dual power supply unit for double guarantee.

    Configuration software to set all parameter of matrix.



    Specifications:



    Communication

    Communication

    RS-422, RS-485, RS-232, TCP/IP

    Baud rate

    19200 bits/s, 9600 bits/s, 4800 bits/s, 2400 bits/s etc.

    Interface

    RS-422  RJ45 connector ( full duplex )

    RS-232  RJ45 connector

    RS-485 3-pin 3.81 connector(semi-duplex)

    System configuration

    System User

    255

    System capacity

    Main matrix bay:  512ch inputs/ 64ch outputs

    Maximum input:  608ch inputs / 8ch outputs

    Maximum after extension: 50000ch outputs / 512ch outputs

    Logic encoding value: 999999 inputs / 2048outputs

    Alarm capacity

    50000

    On-screen display

    Camera title: 32 english character

    Full screen: 16 lines, 42 row english character

    Character

    Chinese/ English / Latin / Cyrillic

    Power-off memory time

    10 year

    Video

    Video input

    1Vp-p/75Ω Composite signal

    Video output

    1Vp-p/75Ω Composite signal

    Signal to noise ratio

    >60dB ( unweighted )

    >70dB ( weighted )

    Channel bandwidth

    5Hz~8MHz(1Vp-p with filter)

    20MHz(1Vp-p,-3dB without filter)

    65MHz(20mVp-p,-3dB without filter)

    Insertion gain

    <0.2dB

    Differential gain

    <1.0%

    Differential phase

    <1.1°

    Frequency characteristics

    <1.0dB(5.8MHz)

    Adjacent Channel Crosstalk

    <-55dB(PAL: 4.43MHz/NTSC: 3.58MHz)

    Adjacent channel isolation

    >50dB(PAL: 4.43MHz/NTSC: 3.58MHz)

    Line Time Waveform Distortion

    <1.0%

    Typical switching time

    20ms(Typical)

    Electrical Characteristics

    Power Supply

    100~240VAC 50/60Hz Adaptive

    Power consumption

    160W

    Mechanical Specifications

    Weight

    35KG(Full capacity)

    Installation dimension

    484mm(Width)×366.0mm(Depth)×532.6mm(12U) height

    Rack

    19’’ EIA standard chassis

    Environmental specifications

    Operating temperature

    -10~+55℃

    Operating Humidity

    0~90%RH(No condensation)





    Applications:



    For the surveillance system where there are all analog cameras, the application focus on real time surveillance.

    The application including Transportation control center, casino, city surveillance, anti-terrorist, harbor,etc. large scale surveillance system.
