Industry CCTV LCD HD Monitor 22 inch AV / TV 50Hz , lcd computer monitor

Industry CCTV LCD HD Monitor 22 inch AV / TV 50Hz , lcd computer monitor

    • Industry CCTV LCD HD Monitor 22 inch AV / TV 50Hz , lcd computer monitor
    • Industry CCTV LCD HD Monitor 22 inch AV / TV 50Hz , lcd computer monitor
    • Industry CCTV LCD HD Monitor 22 inch AV / TV 50Hz , lcd computer monitor
  • Industry CCTV LCD HD Monitor 22 inch AV / TV 50Hz , lcd computer monitor

    Product Details:

    Place of Origin: China
    Brand Name: Sumward
    Certification: CE,ROHS, FCC,C-tick,BV,GMC
    Model Number: LCD HD Monitor S1

    Payment & Shipping Terms:

    Minimum Order Quantity: 2pcs
    Price: negotiation
    Packaging Details: Inner 4CM PE foam,Middle export carton box,Outer export wooden box
    Delivery Time: 7-25 days
    Supply Ability: 3000PCS/month
    Contact Now
    Detailed Product Description

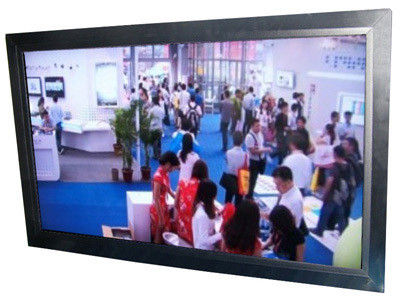

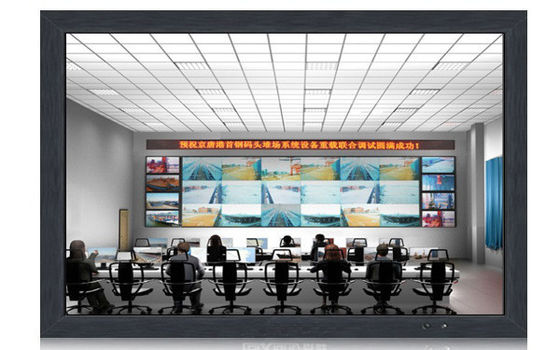

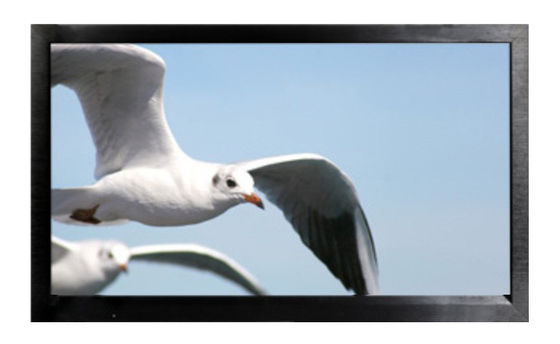

    Industry CCTV LCD HD Monitor 22 inch AV / TV 50Hz , lcd computer monitor



    Features



    Dual infrared touch screen frame

    USB or VGA interface available

    Spill proof and Anti  Dust

    True Flat designed to suit harsh environment

    Best choice for space limited retail/hospitality settings

    Easy for installation - One USB cable needed

    Durable Die-casting Aluminum base design  for touch version



    LCD Specification



    LCD Size-21.6" , 16:9 LCD-Full New LCD screen from Samsung/LG/AU/CHIMEI

    Screen Resolution:1920*1080

    Colour-16.7m

    Brightness-450cd

    Contrast-300.1

    Response Time-16-25ms

    Interface-VGA (optional AV/TV/HDMI)

    Power Supply built-in-AC 100V-240V



    Screen Parameter



    Transmittance

    ≥92%, 100% max (without Glass)

    Outline Dimension

    524(W±2.0)X343(D± 2.0)X8mm(H± 0.5)

    Detection Form

    Infrared rays interception detection form

    Active Area

    473mm(W)x296mm(D)

    Resolution

    1920(W)x1020(D)

    Output Format

    Coordinate Output

    Optical Element Pace

    5.97mm

    Minimum Touch body Diameter

    >5mm

    Response Speed

    16ms—25ms

    Touch Accuracy

    ±1.5mm

    Touch Limitation

    No Limitation



    Electricity



    Scan Frequency

    50Hz

    USB1.1

    Connector type

    A type

    Transmission speed

    12Mbps

    Signal

    +5V, D-, D+, GND

    Connector

    USB A Port connector for cable

    Temperature Range

    Operating -40°C~70°C

    Storage -40°C ~80°C

    Humidity

    Operating 0%-85%, non condensing

    Storage 0%-95%, non condensing

    Power Supply

    DC 5V ± 5%, 270mA~290mA

    Communication Interface

    USB Port or RS232 (Plug & Play, No Drive)

    Communication Distance

    25Meter
