    Product Details:

    Place of Origin: China
    Brand Name: E-Lins
    Certification: CE/ROHS/FCC/SGS
    Model Number: H850w-1

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pc
    Price: negotiation
    Packaging Details: Packed in carton firstly, and then reinforced with boxes
    Delivery Time: Sample in 3 days (for usual version), Bulk order in 2-30 working days depends on material stock
    Payment Terms: T/T or western Union
    Supply Ability: 20,000pcs per month
    Contact Now
    Detailed Product Description
    Product Name: OpenWRT M2M HSDPA Router OS: OpenWRT
    Antenna: External Replaceable Supported Networks: HSDPA, UMTS, EDGE, GPRS
    Case Material: Metal WLAN: IEEE 802.11b/g/n
    Type: Industrial Class SIM Card Slot: Yes
    Wireless Type: Cellular Mobile RJ45: 1 WAN, 1 LAN



    OpenWRT M2M HSDPA Router For CCTV ATM POS PLC AMR Monitoring



    E-Lins 3G hsdpa routers provide fast and reliable 3G hsdpa mobile broadband connectivity and the E-Lins H850 HSDPA industrial grade, embedded 3G router is ideal for a variety of wireless M2M remote monitoring and management applications including CCTV, Digital Signage and wind and solar energy management and monitoring.



    Description Of H850w OpenWRT M2M HSDPA Router



    1. Supported networks,

    3G UMTS WCDMA (HSDPA);

    2G GSM EDGE/GPRS;



    2. Similar to H860 router, the H850 series Cellular Router is also an OpenWRT version router with smaller smart size, which is designed for establish a 2G/3G/4G cellular and Wi-Fi wireless network and share a cellular broad band Internet connection.



    3. Hot Spot of H850 M2M HSDPA Router

    1) OpenWRT version. Support firmware development by users;

    2) One line WAN and one Cellular WAN. Built-in 3G HSDPA industrial cellular modules, insert SIM/UIM card to work directly;

    3) Built-in SIM/UIM card slot;
    4) HSDPA / 3G / 2G, fixed line broadband connections and WiFi Client failover;
    5) Easy to management with GUI Web, Telnet SSH CLI
    6) 1 LAN RJ45 port, 1 WAN RJ45 port, WiFi option;
    7) VPN supported, DDNS, Dynamic Route, Firewall, NAT/NAPT, DMZ, Digital IO ports, GPS support (option)

    8) Built-in watch dog, keep alive, etc.







    Specifications for H850 3G M2M HSDPA Router



    Wireless Cellular

    Compatible Mobile Networks

    3G UMTS WCDMA (HSDPA);

    2G GSM EDGE/GPRS

    Cellular Frequency

    UMTS/HSDPA (WCDMA/FDD): 850/1900/2100 MHz, option for 850/900/1900/2100Mhz/1700Mhz/AWS;



    Quad-band GSM/GPRS/EDGE 850/900/1800/1900Mhz;

    Bandwidth

    HSDPA: Downlink 7.2 Mbps, Uplink 384k bps;

    WCDMA/UMTS: Downlink/Uplink 384 kbps;



    EDGE: Downlink 384 kbps, Uplink 118 kbps;

    GPRS: Downlink 108 kbps, Uplink 42.8 kbps;



    Notes: the bandwidth is peak value. Real value depends on carrier network support.

    Network and Band Lock Feature (Option)

    Default is unlocked, can use this feature to lock

    Main Features and Performance

    USB Host

    No

    GPS (Option)

    GPS feature option

    VPN

    IPSec, OpenVPN

    OpenWRT

    Yes

    Route

    Static Route;

    Wi-Fi

    802.11b/g, 802.11n, 802.11ac;

    Can choose 54Mbps/150Mbps/300Mbps/450Mhz.



    Frequency 2.4Ghz or 5.8Ghz or 2.4Ghz+5.8Ghz. Support Access Points, Routers and Gateway Server Applications, wireless up to 254 PC users

    Firmware update

    Support flash new firmware image

    Syslog

    System log, Kernel log

    NTP

    Yes

    Scheduled Tasks

    Yes

    Protocol



    Protocol support

    TCP, UDP, SMTP, POP, ICMP, FTP, PPP, PPPoE, DHCP, DDNS, DNS, WPS, DMZ, NAT, xDSL, NTP, QoS, SNMP, RIP

    Security



    Firewall

    support 64/128 bits WEP, 802.1x, WPA, and WPA2

    support WDS

    support WPA1/2 – PSK

    support WPA1/2 – 802.1x

    support EAP – TLS, TTLS, LEAP, PEAP

    TKIP, AES encryption

    support access with user name & password.

    support access control base WAN/LAN interface

    support access control base source IP address

    defense DOS attack, support SYN flooding, IP surfing, ping of Death, fragile, teardrop, land etc.

    support PAP & CHAP

    support IP filtering

    support content filtering

    support NAT/NAPT/Port forwarding/DMZ

    Advanced Firewall Features

    Network Address Translation (NAT)

    Stateful Packet Inspection (SPI)

    VPN Pass-through

    Media Access Control

    CSMA/CA with ACK

    Certifications

    REDIUS Client

    Interface



    LAN/WAN

    1X 10/100M LAN port (RJ45 interface)

    1X 10/100M WAN port (RJ45 interface)

    Antenna

    1 or 2 antenna for Wi-Fi (detachable, SMA interface);

    1 or 2 antenna for Cellular (detachable, SMA interface);

    1 antenna for GPS (detachable, SMA interface)

    Led

    PWR*1

    SYS*1

    Cell*1

    WAN*1

    LAN (10/100M)*1

    WiFi*1

    Button

    Reset

    Console

    1 console port, Terminal block

    Serial port

    No

    IO Port (option)

    3

    Management

    Web/Telnet/CLI/SSH, support remote management

    At command

    Supported

    UIM/SIM Card Slot

    Support 1.8V/3V UIM/SIM cards, one sim card slot

    DC Jack

    2.1mm DC jack * 1

    Power



    Power supply

    DC5V-50V , typical DC 9V1A or 12V1A, 12v CAR USE;

    DC5V~40V is the default, DC5V~50V is the option

    Current

    Idle: about 120mA@12VDC

    Communication: about 270mA@12VDC

    Software



    Device Management

    WEB interface (Internet Explorer v6 or Later; Mozilla Firefox v1.5 or Later, or other Java-enabled Browsers, Chome, Opera, Sarafi, etc.)

    Minimum System Requirements

    Windows, Linux, Mac OS, IOS, Symbian, Android, other OS support web browser;

    Network Interface Card

    Physical



    Operating Temperature

    Storage Temperature: -40 ~ 85°C

    Working Temperature: -30 ~ 75°C

    Humidity

    95% Maximum (Non-condensing)

    Dimensions

    PCBA: 90mm x 70mm x 23mm

    With case: 100mm x 78mm x 26mm

    Weight

    375g (not including the antenna)
    475g (including the antenna)
    775g (including all accessories, without package)

    Color

    Metal Gray-Black, OEM is available

    Others



    Warranty

    1 Year default. Option extends to 5 years maximum.

    Package Contents

    H850 Series Wireless 3G M2M HSDPA Router

    Ethernet Cable

    Power Adapter

    Antenna

    Others depends on option features







    Applications

    • Vending machine
    • Telemetry, SCADA
    • Vehicle logistics and diagnostics controlling
    • Parking meter and Taxi Monitor
    • Telecom equipment supervision (Mobile base station, microwave or optical relay station)
    • Remote Data Monitor and Control
    • CCTV, security surveillance
    • Water, gas and oil flow metering and schedule
    • AMR (automatic meter reading)
    • Power station monitoring and control
    • Remote POS (point of sale) terminals, ATM,
    • Traffic signals monitor and control, Traffic info guidance
    • Oil field, weather forecast, environmental protection, street lamp monitoring and control
    • Early Warning of Mountain Torrent
    • Fleet management
    • Power distribution network supervision
    • Central heating system supervision
    • Weather station data transmission
    • Hydrologic data acquisition



    Typical Application Diagram for H850 Industrial 3G Router



    OpenWRT M2M VPN Firewall Router For CCTV Security / ATM / PLC

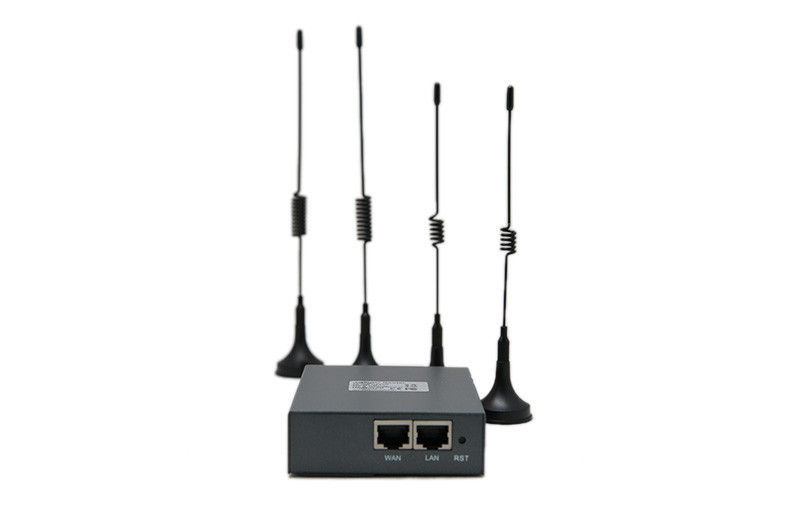

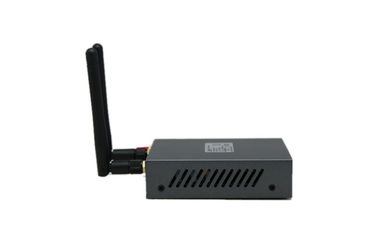

    More Pictures for H850p Industrial M2M 3G HSDPA Router


    OpenWRT M2M VPN Firewall Router For CCTV Security / ATM / PLC

    OpenWRT M2M VPN Firewall Router For CCTV Security / ATM / PLC
