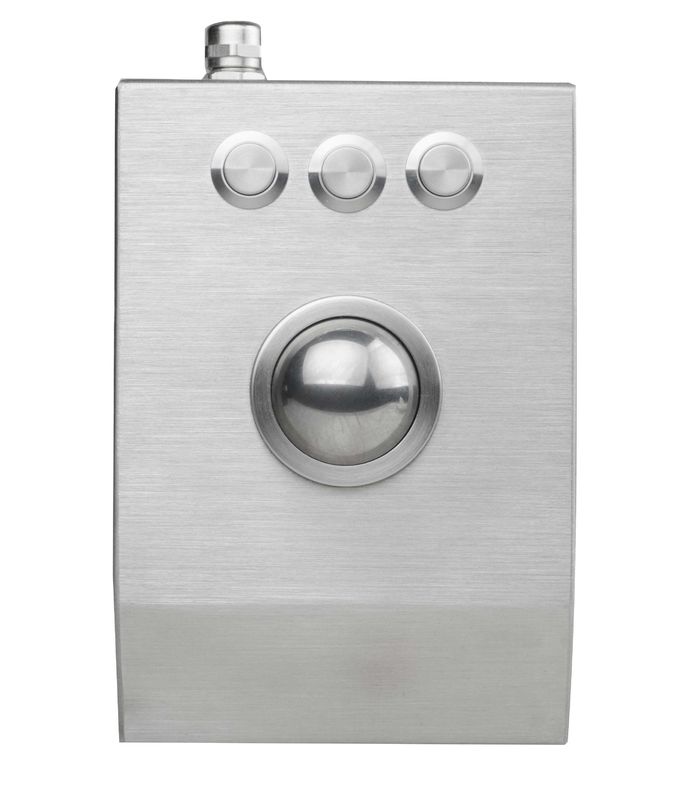

Rugged metal Stainless steel desktop 38mm laser trackball with 1200 DPI resolution

Rugged metal Stainless steel desktop 38mm laser trackball with 1200 DPI resolution

    • Rugged metal Stainless steel desktop 38mm laser trackball with 1200 DPI resolution
    • Rugged metal Stainless steel desktop 38mm laser trackball with 1200 DPI resolution
    • Rugged metal Stainless steel desktop 38mm laser trackball with 1200 DPI resolution
  • Rugged metal Stainless steel desktop 38mm laser trackball with 1200 DPI resolution

    Product Details:

    Place of Origin: China
    Brand Name: IKB-MKB
    Certification: CE,FCC,ROHS,IP65,IP68,ESD
    Model Number: K-TEK-B107-38-TB-IDT

    Payment & Shipping Terms:

    Minimum Order Quantity: + 1 pc
    Packaging Details: Each keyboard to one box,several boxes to one carton
    Delivery Time: ASAP Within 2 weeks upon payment confirmed
    Payment Terms: T/T, Western Union, paypal
    Supply Ability: 3000pcs/month
    Contact Now
    Detailed Product Description
    Dimension: 107.0mm X155.0mm(front Panel) Colour: Brushed Stainless Steel
    Trackball: MTB,OTB,LTB Trackball Resolution: 400DPI, 800DPI, 1200DPI Resolution Optional
    GW: 1.8 KGS Trackball Diameter: 19mm, 25mm, 38mm 50mm Also Available
    Material: Metal Stainless Steel Key Travel: 2 Mm Long Stroke





    Rugdized metal Stainless steel desktop 38mm laser trackball with 1200 DPI resolution





    Main Features:



    1. Industrial movable stand alone trackball for very harsh environment

    2. with 3 sealed stainless steel mouse buttons designed for right & left clicking and scrolling up and down with ball rolling, stainless steel top plate with threaded bolts for top panel mounting solution.

    3.  IP65 dynamic sealed & ruggedized stainless metal trackball mouse

    4. Rear stainless steel plate with mounting holes for rear panel mounting.

    5.Windows95/98/NT/ME/2000/2003/XP/Vista/Win7, Linux, Unix, Mac OSX COMMUNICATION





    Trackball Version

    Mechnical trackball, optical trackball, laser trackbal optional



    Trackball Resolution

    400DPI, 800DPI, Resolution optional



    Trackball Diameter

    19mm, 25mm, 38mm 50mm also available



    Key Travel

    0.45mm short stroke or 2mm long stroke optional



    Colour

    Brushed stainless steel or black titanium electroplated



    Interface

    USB or PS/2 interface optional



    Performance

    Waterproof, dustproof, explosion proof, vandal proof etc.



    Mounting version

    Stand alone movable mount









    Specifications:



    MECHANICAL DATA Switching material: Carbon-on-Gold
    Actuation Force: 0.6 N+/-0.1N for key 14.0mm x 14.0mm (pressure point), 1.2 N+/-0.1N for key 14.0mm x 28.0mm (pressure point)
    Key Travel: 2.0mm
    Lettering: laser engraving, or raised letters.
    Front panel: brushed stainless steel
    Actuator/keys materials: brushed stainless steel
    Dimensions: 110.0mm x 80.0mm (top panel)
    G.W. 0.8KGs

    ELECTRICAL DATA
    Power supply voltage: 5V DC.
    Power Consumption: Under 30mA for operation
    Electrical lifetime: > 5 years
    EMC:EN55022(B)
    Communication interface: PS2, USB or RS232 are all available.

    ENVIRONMENTAL ADAPTABILITY

    Operating temperature:-20°C to +60°C
    Storage temperature: -30°C to +70°C
    Operating RH: 30-90%
    Atmospheric pressure: 60-106Kpa.


    RELIABILITY
    RoHS Compliant, CE and FCC, ESD
    Protection Level: IP65(front panel)
    Vandal resistant IK09
    Key Lifespan >10 million actuations .
    MTBF >50000H.
    MTTR <30min.



    Rugged metal Stainless steel desktop 38mm laser trackball with 1200 DPI resolution
