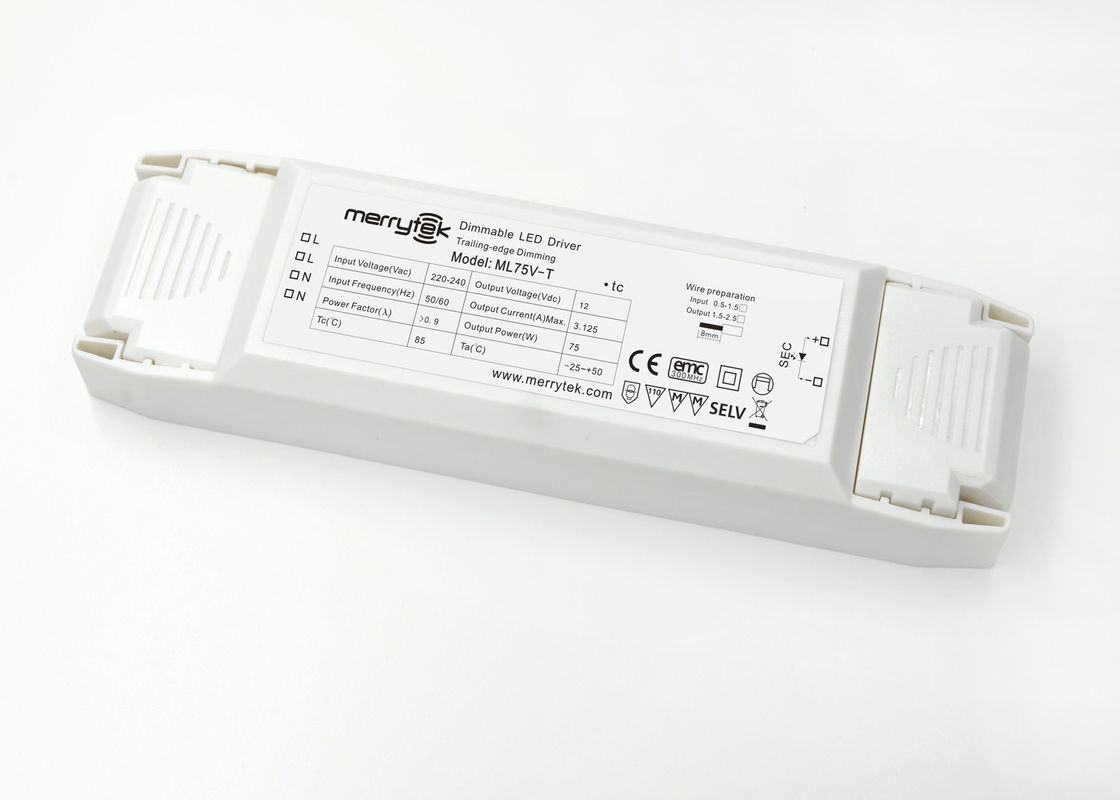

High Power 12V Constant Voltage Dimmable LED Driver 75W Without Flickering

High Power 12V Constant Voltage Dimmable LED Driver 75W Without Flickering

High Power 12V Constant Voltage Dimmable LED Driver 75W Without Flickering

Product Details:

Place of Origin: China
Brand Name: Merrytek
Certification: CE
Model Number: ML75V-T

Payment & Shipping Terms:

Minimum Order Quantity: 100pcs
Price: Negotiation
Packaging Details: Packed in bubble bag firstly, and then reinforced with carton for outer packing
Delivery Time: 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.
Supply Ability: 10,000pcs per month
Contact Now
Detailed Product Description
Output Current: 6.25A Max Product Name: 75W/12Vdc Traic Dimmable Led Driver
Input Voltage: 220-240Vac Output Voltage: 12Vdc
Dimming Mode: RC Traic Output Load: 75W Max
Working Temperature: -25℃-50℃ Isolation Class: Class II, SELV
Approvals: CE Protection Class: IP20

High Power 12V Constant Voltage Dimmable LED Driver Non Flickering





Description:

1, Constant voltage 12Vdc

2.The output load is 75W max

3. The triac dimmable led driber mainly works for led strip

4. The trailing -edge dimming , cpmpatible with popular dimmer in Euro.

5. Compatible with dimmer: Scandinavia market- Schneider SBD615RC; Deutsch market- JUNG 225 T; DEBERKE 2874; BUSCH 6513 U-102; GIRA 0307 00

6. Protection: Short circuit / Over voltage / Over temperature.

7. Dimming range: 10%-100%

8. without flickering





Specifications

Input

Input voltage

220-240Vac, 50/60Hz

Power factor (PF)

≥0.9(@ 240Vac input, full load and without dimmer)

Efficiency

≥82%(@ 240Vac input, full load and without dimmer)

No-load power

≤1.5W

Output

Output Voltage

12V DC

Output Current

6.25A max.

Voltage accuracy

±5%

Rated power

75W Max.

Dimming

Dimming mode

Trailing edge dimming

Dimming range

10%-100%

Environment

Working temperature

-25℃~50℃

Storage temperature

-40℃~80℃

Safety and EMC

Insulation class

Class II, SELV

Withstand voltage

Input-Output: 3.7kVac/5mA/1min

EMC

Compliance to EN55015, EN61000-3-2 Class C, EN61000-3-3, EN61547

Safety

Compliance to EN61347-1, EN61347-2-13

Protection

Short circuit

Protection mode: Auto recovery

Over temperature

Protection mode: Auto recovery

Others

Dimension

220x58x40mm

Enclosure

Plastic, white

IP rating

IP20

Connection

Input: 4-hole press-in type terminal(L, L, N, N)

Output: Screw terminal block (LED +, LED -)

Life time

30,000h

Certification

CE
