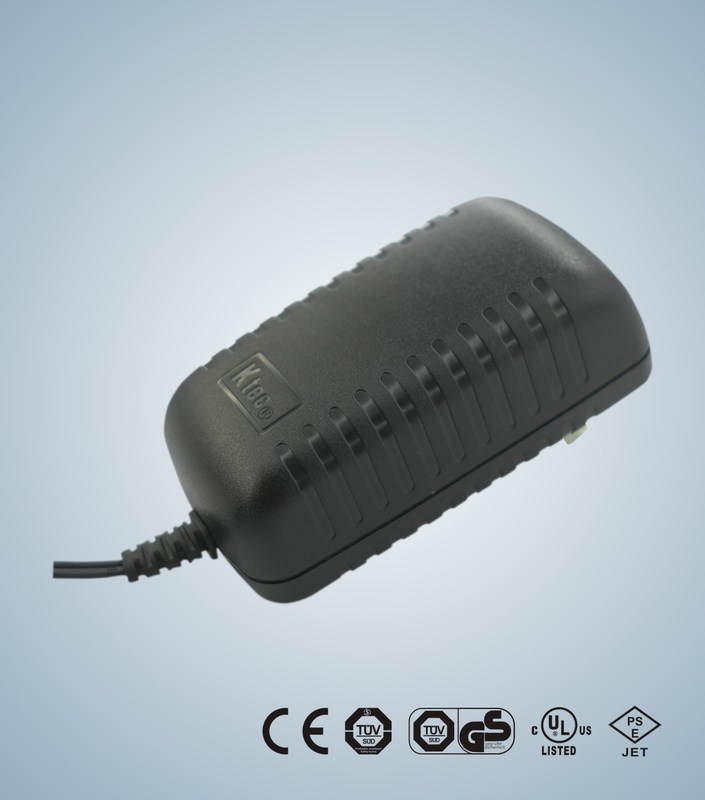

36W KSAP036 universal AC power adapter with CE GS BS SAA UL CUL PSE KC support for OEM ODM

36W KSAP036 universal AC power adapter with CE GS BS SAA UL CUL PSE KC support for OEM ODM

36W KSAP036 universal AC power adapter with CE GS BS SAA UL CUL PSE KC support for OEM ODM

Product Details:

Place of Origin: China Mainland
Brand Name: KTEC
Certification: CE GS BS SAA UL CUL PSE KC
Model Number: 36W KSAP036

Payment & Shipping Terms:

Minimum Order Quantity: 1000pcs
Price: Negotiable
Packaging Details: white box
Delivery Time: 40 days
Payment Terms: T/T,Negotiable for OEM ODM
Supply Ability: 100million/month
Detailed Product Description

Input

●Input Voltage :  90 to 264 VAC

●Frequency      :  47-50/60-63hz

●Input   current :  0.8A (Max) 120 /240VAC

●Inrush current : 50A Max. 240VAC

●Leakage current : 0.25 mA Max

Output

●Over voltage protection

●Over current protection

at 110-200% of lo and Auto-recovery

●Electronic short circuit protection

●Ripple&noise 20 MHZ band width:200mV

●Efficiency 84.26% Measured at 25℃

●Operating temperature 0~40℃ Free convection

●Sea level Non-operating temperature -20~ 80℃

●Operating humidity 10-90% RH Non Condensing

●No load power less than 0.3w

Safety standards

●GB4943-2001 ,GB9254-1998 ,GB17625.1-2003

●UL60950-1,1stEdition,AS/NIZS60950-1:2003,IEC/EN60950

●EN60950-1/A11:2004

Certificates and approvals

●CE.GS,CB,UL,FCC,C-TICK,TUV,PSE,CCC

EMI Emission

●Radiation Test&Conduction Test:EN 55022

EMS immunity

●ESD   Test:EN 61000-4-2

●RS     Test:EN 61000-4-3

●EFT    Test:EN 61000-4-4

●Surge Test:EN 61000-4-5

●CS     Test:EN 61000-4-6

●DIP     Test:EN 61000-4-11

external power supplies

Key Features  of  KSAP036

 Products highlights

●High Power Density

●Peak load 4.8A for normal input

●MTBF 50K hours @25℃( MIL-HDBK-217F)

●ESD:air discharging ±15KV,contact discharging ±8KV

●Operating Temp Range(-5℃ to 40℃)



Key Applications of KSAP036

It's suitable for an extremely wide Range of applications,including:

●General power supply

●Output required by mobile hard disk, multimedia player and other electronic product

●Hard disk drive

●Audio&Video product
