Place of Origin: | China |
Brand Name: | seestar |
Model Number: | SSD-20W12v |
input voltage: | 85-265vac |
---|---|
output voltage: | 12vdc |
output current: | 1600mA |
output power: | 20W |
pf: | 0.9 |
size: | 182*29*20.4mm |
Minimum Order Quantity: | 10 |
---|---|
Price: | $3.8 |
Packaging Details: | driver is packed in cartons with full protection |
Delivery Time: | 3-4 days |
Payment Terms: | TT,PAYPAL,WESTERN UNION |
Supply Ability: | 100000 per day |
High Light: | 12v led driver 1.6a,12v 20w led driver,led driver 12v 20w |
---|

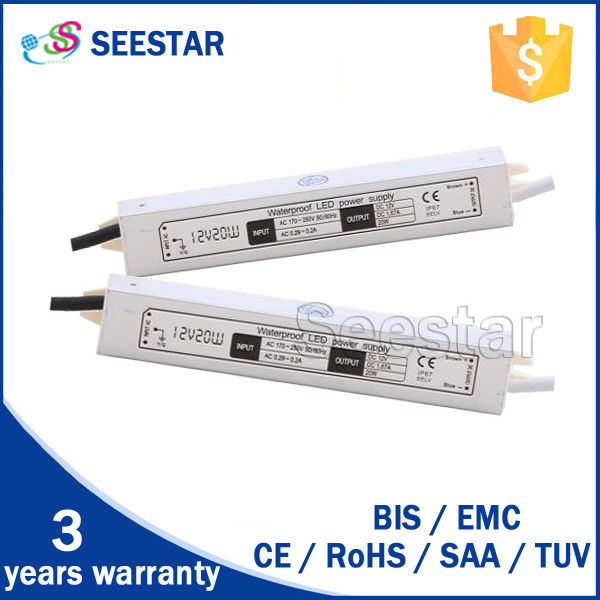

Waterproof 12V 1.6A 20W Constant Voltage led driver IP67
Features of driver
Items | Features Description |
Input | wide input voltage range:AC85-265V,max input voltage range:AC85-305v. |
Performance | ♦Isolated,high efficiency , flicker-free, high PF≥ 0.9 @230VAC,Low THD<20%@230VAC ♦ Driver IC: Products of SEESTAR company apply the world-famousbrands IC(NXP/PI/OB/CL),High-efficient transformer,isolated design,Current is more stable. ♦ Capacitor :Capxon factory/ Ruby /beryl capacitor,Yageo resistor,Fairchild diode and audion,effectively prolonging the service life of the product. ♦ Transformer: All of our coils are usepure copper wire. |
Protection | Short Circuit protection /Over Load protection /Over Voltage protection /Over current protection. |
Certification | Pass Certificate testing: EMC,EMI,CE,SAA,TUV, BIS is pending. |
Structure | 1.Aluminum housing 2.double fixed function for the AC and DC terminal wiers |
Product Name: Waterproof 12V 1.6A 20W Constant Voltage led driver
Model | SSD-FSB12 | SSD-FSC24 |
DC output voltage | 12V | 24V |
Output voltage error | ±1% | ±1% |
Rated output current | 1.6A | 0.83A |
Output current range | 0-3A | 0-1.5A |
Wave and noise | 100mVp-p | 100mVp-p |
Inlet stability | ±0.5% | ±0.5% |
Load stability | ±0.5% | ±0.5% |
DC output power | 20W | 20W |
Efficiency | 86% | 87% |
AC input voltage range | 170-265VAC | |
Input current | 0.5A/115V 0.25A/230V | |
AC impulse current | Cold-start current 13A/115V 26A/230V | |
Leakage current | <0.5mA/240VAC | |
Over load protection | 105%~150% rated output power | |
Protection:Hiccup mode | ||
Over voltage protection | 13~16V | 28~32V |
Protection:Shut down output voltage | ||
short circuit protection | Protection:Hiccup mode | |
Temperature coefficient | ±0.03%(050) | |
Setup rise hold up time | 200ms,100ms,30ms | |
Vibration | 10~500Hz,2G 10min./1cycle,Period for 60min,Each axes | |
Withstand voltage | I/P-O/P:2.5KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |
Isolation resistance | I/P-O/P:100M Ohms / 500VDC / 25 / 65% RH | |
Working temperature and humidity | -10~+60°C, 20~90%RH | |
Store temperature and humidity | -20~+85°C, 10~95%RH | |
Overall dimension | 220×20×30mm | |
Weight | 0.25Kg | |
Safety standards | Desgin refer to UL1012,EN60950-1,EN61347-1,EN-61347-2 approved | |
EMC | EN55015,EN55022,EN55024,EN61000-2,EN61000-3,EN61547 approved |
• All parameters can be customized according to your requirements.
Quality is our culture!
We trust that our products will give you an edge over your competitiors!
Application:
waterproof IP6712V 20W led driveris applicable to Led flood light,street light,strip light,underground lamp,underwater lamp,Wall lights and other LED applications.Instructions:
1. First connect the LED drive power supply output according to the polarity, LED (LED + / -)
2. Connect drive power supply to the input power, namely, it is powered, the LED light lit up at this time.
3. Please use according to the power of a given parameter range.
Related model list
Model | Power | Input Voltage | Output Voltage | Ouput Current | Net Weight | IP Grade | Size (L*W*H) | Warranty |
THD-12V20W | 20W | AC170 ~265V | 12V | 1.6A | 0.22kg | IP67 | 182*29*20.4mm | 3 years |
THD-12V30W | 30W | AC170 ~265V | 12V | 2.5A | 0.25kg | IP67 | 217*29.2*20.5mm | 3 years |
THD-12V40W | 40W | AC170 ~265V | 12V | 3.3A | 0.25kg | IP67 | 200*30*22mm | 3 years |
THD-12V50W | 50W | AC170 ~265V | 12V | 8.16A | 0.28kg | IP67 | 200*35*25mm | 3 years |
THD-12V60W | 60W | AC170 ~265V | 12V | 5A | 0.51kg | IP67 | 169*52*34mm | 3 years |
THD-12V80W | 80W | AC170 ~265V | 12V | 6.6A | 0.51kg | IP67 | 169*52*34mm | 3 years |
THD- 12V100W | 100W | AC170 ~265V | 12V | 8.3A | 1kg | IP67 | 210*68.5*44mm | 3 years |
1) CE Certification
2)CE EMC report
3) EMC TEST REPORT
Packaging and Shipping:
led driver is packed in cartons with full protection or as per your request.
Packages:
1-3W : 27*16*15(2000pcs/ctn,15kg/ctn)
4-7W : 30*17*158(2000pcs/ctn,19kg/ctn)
18-24W : 85*27*18(720pcs/ctn,30kg/ctn)
MOQ:100pcs
Delivery time:1-2 days for samples,5-10 days for bulk order.
Payment:T/Tin advance,Paypal,Western Union,we also acceptTrade Assurance order.
Shenzhen Seestar technology co.,ltd.
We are a worldwide supplier of LED power supply. Adhering to the "innovative,win-win,cooperation" business style, company provide customers with the most perfect LED lighting technology solutions, the most cost-effective products, the most fast and considerate service process.
Our factories have amonthly output of 250,000 power suppliesforled tube, led bulb , led strip light, led down light, led ceiling light, led flood light ,Spot light, candle light, panel lamp, led street light and other led lamps.Our factory offerled power supplyto the world market for several years.Customers gives us good feedback after testing.
We have 15 R&D staff with 10 years of experience in LED driver. Products areCE,ROHS,SAA,TUV, EMCapproved. In addition, our QC can offer3-5 years warranty and maintenance .
With10 years experience,we will provide you with professional service and the best quality products, and sincerely hope to become your faithful partner.
