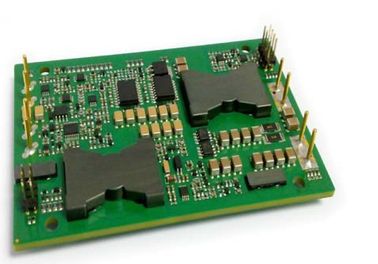

Military Power Supply 800W Output 45V ZG800-250S45-POC
Key Features
Output power: 800W
Wide input range: 180-340Vdc
High conversion efficiency: Up to 93%
Line regulation to ±0.5%
Load regulation to ±0.5%
Fixed operating frequency
Isolation voltage :1500V
Load sharing to 20 units
Enable (ON/OFF) control
Output over-load protection
Hiccup mode short circuit protection
Over-temperature protection
Input under-voltage lock-out
Output voltage trim: ±2%
Product Overview
These DC-DC converter modules use advanced power processing, control and packaging technologies to provide the performance, flexibility, reliability and cost effectiveness of a mature power component. High frequency Active Clamp switching provides high power density with low noise and high efficiency.
Product’s Introduction
The ZG series is an independently regulated single output converter that uses the industry nonstandard brick package size. The very high efficiency is a result of ENARGY CORP patented topology that uses synchronous rectification and an innovative construction design to minimize heat dissipation and allow extremely high power densities. The power dissipated by the converter is so low that a heat sink is not required, which saves cost, weight, height, and application effort. All of the power and control components are mounted to the multi-layer PCB substrate with highyield surface mount technology, resulting in a more reliable product.
1. Electric Characteristics
Electrical characteristics apply over the full operating range of input voltage, output load and base plate temperature, unless otherwise specified. All temperatures refer to the operating temperature at the center of the base plate. All data testing at Ta=25oC except especial definition.
1.1 Absolute Maximum Ratings
|
Parameter |
Min |
Typ |
Max |
Units |
Notes |
|
Input Voltage |
|
|
360 |
Vdc |
Continuous, non-operating |
|
|
|
340 |
Vdc |
Continuous, operating |
|
|
|
|
360 |
Vdc |
Operating transient protection,<100mS |
|
|
Isolation Voltage |
|
|
2000 |
Vdc |
Input to Output |
|
Operating Temperature |
-55 |
|
100 |
℃ |
|
|
Storage Temperature |
-65 |
|
115 |
℃ |
|
|
Enable to Vin- Voltage |
-2.0 |
|
10 |
Vdc |
|
1.2 Input Characteristics
|
Parameter |
Min |
Typ |
Max |
Units |
Notes |
|
Input Voltage Range |
180 |
250 |
340 |
Vdc |
Continuous |
|
Under-Voltage Lockout |
|
177 |
179 |
Vdc |
Turn-on Threshold; min. load |
|
125 |
150 |
|
Vdc |
Turn-off Threshold; half load |
|
|
Maximum Input Current |
|
|
5.5 |
A |
Full Load;180Vdc Input |
|
Efficiency |
|
93 |
|
% |
Full Load; Rating Input voltage; Figures 1-2 |
|
Disabled Input Current |
|
20 |
|
mA |
Enable pin low |
|
Recommend External Input Capacitance |
|
100 |
|
μF |
Typical ESR 0.1-0.2Ω |
1.3 Output Characteristics
|
Parameter |
Min |
Typ |
Max |
Units |
Notes |
|
Output Voltage Set point |
44.55 |
45.00 |
45.45 |
Vdc |
Nominal input; Min load |
|
Output Voltage Range |
44.1 |
45.00 |
45.9 |
Vdc |
|
|
Output Current Range |
1 |
|
17.8 |
A |
Subject to thermal derating. Figure 3-4 |
|
Line Regulation |
|
±0.02 |
±0.5 |
% |
Low line to high line; full load |
|
Load Regulation |
|
±0.02 |
±0.5 |
% |
Min. load to full load; nominal input |
|
Temperature Regulation |
|
±0.01 |
±0.02 |
% / °C |
Over operating temperature range |
|
Current Limit |
18.69 |
21 |
23.2 |
A |
Output voltage 95% of nominal |
|
Short Circuit Current |
1 |
21 |
23.2 |
A |
Output voltage <250 mV |
|
Ripple (RMS) |
|
80 |
|
mV |
Nominal input; full load; 20 MHz bandwidth, Figure 9 |
|
Noise(Peak-to-Peak) |
|
450 |
|
mV |
|
|
Maximum Output Cap. |
|
1200 |
|
μF |
Nominal input; full load |
|
Output Voltage Trim |
+2 |
|
-2 |
% |
Nominal input; full load |
1.4 Dynamic Response Characteristics
|
Parameter |
Min |
Typ |
Max |
Units |
Notes |
|
Change In Output Current (di/dt= 0.1A/μs) |
|
1300 |
|
mV |
Nominal input,50% to 75% to 50% Iout max; Figure 7 |
|
Change In Output Current (di/dt= 2.5A/μs) |
|
1800 |
|
mV |
Nominal input ,50% to 75% to 50% Iout max; Figure 8 |
|
Settling Time |
|
400 |
|
μS |
To within 1% Vout nom. |
|
Turn-on Time |
|
20 |
|
mS |
Full load; Vout=90% nom. Figure 5 |
|
Shut-down Fall Time |
|
300 |
|
μS |
Full load; Vout=10% nom. Figure 6 |
|
Output Voltage Overshoot |
|
5 |
|
% |
|
1.5 Functional Characteristics
|
Parameter |
Min |
Typ |
Max |
Units |
Notes |
|
Switching Frequency |
180 |
200 |
220 |
KHz |
Regulation stage and Isolation stage |
|
Trim(Pin21) |
See part 7.4 Voltage Trim(Pin21) |
||||
|
Output Voltage Trim |
|
|
2 |
% |
Trim Up, Trim Pin toVout(-) |
|
2 |
|
|
% |
Trim Down, Trim Pin to Vout (+) |
|
|
Enable(ON/OFF)Control(Pin11) |
See part 7.1 |
||||
|
Enable Voltage Enable Source Current |
|
2 |
|
Vdc |
Enable pin floating |
|
|
1 |
|
mA |
|
|
|
Enable (ON/OFF) control Positive Logic |
2.5 |
|
10 |
Vdc |
ON-Control, Logic high or floating |
|
-0.5 |
|
0.2 |
Vdc |
OFF-Control, Logic low |
|
|
Vaux voltage(pin13) |
See part 7.8 |
||||
|
Vaux Voltage Vaux Source Current |
|
8.5 |
|
Vdc |
Auxiliary output voltage |
|
|
20 |
|
mA |
|
|
|
Over-Load Protection |
105 |
120 |
130 |
% |
Current-Mode, Pulse by Pulse Current Limit Threshold,(%Rated load) |
|
Short -Circuit Protection |
|
|
80 |
mΩ |
Type: Hiccup Mode, Non-Latching, Auto-Recovery,Threshold,Short-Circuit Resistance |
|
Over-Temperature Protection |
|
105 |
|
℃ |
Type: Non-Latching, Auto-Recovery； Threshold, PCB Temperature |
|
|
15 |
|
℃ |
Hysteresis |
|
1.6 Isolation Characteristics
|
Parameter |
Min |
Typ |
Max |
Units |
Notes |
|
Isolation Voltage |
1500 |
|
|
Vdc |
Input to Output |
|
1500 |
|
|
Vdc |
Input to Base |
|
|
500 |
|
|
Vdc |
Output to Base |
|
|
Isolation Resistance |
100 |
|
|
MΩ |
At 500Vdc to test it when atmospheric pressure and R.H. is 90% |
|
Isolation Capacitance |
|
1000 |
|
pF |
|
2. General Characteristics
|
Parameter |
Min |
Typ |
Max |
Units |
Notes |
|
Weight |
|
6.1(170) |
|
Oz (g) |
Encapsulated |
|
MTBF ( calculated ) |
1 |
|
|
MHrs |
TR-NWT-000332;80% load,300LFM, 40℃ Ta |
3. Environmental Characteristics
|
Parameter |
Min |
Typ |
Max |
Units |
Notes |
|
Operating Temperature |
-55 |
|
+100 |
℃ |
Extended, base PCB temperature |
|
Storage Temperature |
-65 |
|
+115 |
℃ |
Ambient |
|
Temperature Coefficient |
|
|
±0.02 |
%/℃ |
|
|
Humidity |
20 |
|
95 |
%R.H. |
Relative Humidity, Non - Condensing |
4. Standards Compliance
|
Parameter |
Notes |
|
UL/cUL60950 |
|
|
EN60950 |
|
|
GB4943 |
|
|
Needle Flame Test (IEC 695-2-2) |
Test on entire assembly; board & plastic components UL94V-0 compliant |
|
IEC 61000-4-2 |
|
5. Qualification Specification
|
Parameter |
Notes |
|
Vibration |
10-55Hz sweep, 1 min./sweep, 120 sweeps for 3 axis |
|
Mechanical Shock |
100g min, 2 drops in x and y axis, 1 drop in z axis |
|
Cold(in operation) |
IEC60068-2-1 Ad |
|
Damp Heat |
IEC60068-2-67 Cy |
|
Temperature Cycling |
-40°C to 100°C, ramp 15°C/min., 500 cycles |
|
Power/Thermal Cycling |
Vin = min to max, full load, 100 cycles |
|
Design Marginality |
Tmin-10°C to Tmax+10°C, 5°C steps, Vin = min to max, 0-105% load |
|
Life Test |
95% rated Vin and load, units at derating point, 1000 hours |
|
Solderability |
IEC60068-2-20 |
6. Typical Wave And Curves
Figure 1: Efficiency at nominal output voltage vs. load current for minimum, nominal, and maximum input voltage at 25°C.
Figure 2: Power dissipation at nominal output voltage vs. load current for minimum, nominal, and maximum input voltage at 25°C.
Figure 3: Maximum output power derating curves vs. ambient air temperature for airflow rates of 0 LFM through 800 LFM with air flowing from pin 1 to pin 4 (nominal input voltage).
Figure 4: Thermal plot of converter at full load current (800W) with 25°C air flowing at the rate of 800 LFM. Air is flowing across the converter from pin 1 to pin 4 (nominal input voltage).
Figure 5: Turn-on transient at full load (resistive load) (20 ms/div).Input voltage pre-applied. Ch 1: Vout (20V/div).Ch 2: ON/OFF input(2V/div)
Figure 6: Shut-down fall time at full load (1 ms/div). Ch 1: Vout (20V/div).Ch 2: ON/OFF input (2V/div).
Figure 7: Output voltage response to step-change in load current (50%-75%-50% of Iout(max); dI/dt = 0.1A/μs).. Load cap: 10μF, 100 mW ESR tantalum capacitor and 1μF ceramic capacitor. Ch 1: Vout (1V/div).
Figure 8: Output voltage response to step-change in load current (50%-75%-50% of Iout(max): dI/dt = 2.5A/μs).. Load cap: 10μF, 100 mW ESR tantalum capacitor and 1μF ceramic capacitor. Ch 1: Vout (1V/div).
Figure 9: Output voltage ripple at nominal input voltage and rated load current (200mV/div). Load capacitance: 1μF ceramic capacitor and 10μF tantalum capacitor Bandwidth: 20 MHz.
7. Physical Information
7.1 Mechanical Outline
Notes:
1. Pins 1-8 are 0.6” (1.52mm) dia. without shoulders.
2. Pins 9-22 are 0.025”(0.64mm) Square.
3. Pin 9 to 14 referenced to Vin(-). Pin 15 to 22 referenced to Sense(-).
4. Tolerances: x.xx ±0.02 in. (x.x ±0.5mm), x.xxx ±0.010 in. (x.xx ±0.25mm).
7.2 Pin Designations
|
Pin No. |
Name |
Function |
|
1 |
Vin(+) |
Positive input voltage |
|
2 |
Vin(+) |
Positive input voltage |
|
3 |
Vin(-) |
Negative input voltage |
|
4 |
Vin(-) |
Negative input voltage |
|
5 |
Vout(-) |
Negative output voltage |
|
6 |
Vout(-) |
Negative output voltage |
|
7 |
Vout(+) |
Positive output voltage |
|
8 |
Vout(+) |
Positive output voltage |
|
9 |
Phase Shift |
To reduce the input reflected ripple current and to reduce the load transient response time |
|
10 |
TSB |
Thermal Shut-Down Bus |
|
11 |
Enable |
TTL input to turn converter ON and OFF, referenced to Vin(-), with internal pull up. |
|
12 |
Sync-In |
The operating frequency is set to 200KHz and can be synchronized by an external clock connected between the Sync-In pin and ground (-)Vin. |
|
13 |
Vaux |
Auxiliary output voltage |
|
14 |
Temp. Monitor |
No use |
|
15 |
Sync-Out |
This pin contains a clock signal referenced to the Sense(-) pin. |
|
16 |
ORing FET Drive |
The FET Drive pin provides a DC voltage of about 10V above the main output |
|
17 |
Load Sharing |
Two or more modules can be operated in parallel for either redundant operation or additional power requirements. |
|
18 |
Power Good |
The Power Good pin indicates the operating state of the module |
|
19 |
Current Monitor |
Output current can be measured from this pin. |
|
20 |
Sense(-) |
Negative remote sense. SENSE(-) may be connected to Vout(-) or left open. |
|
21 |
Trim |
Output voltage trim. Leave TRIM pin open for nominal output voltage. |
|
22 |
Sense(+) |
Positive remote sense. SENSE(+) may be connected to Vout(+) or left open. |
