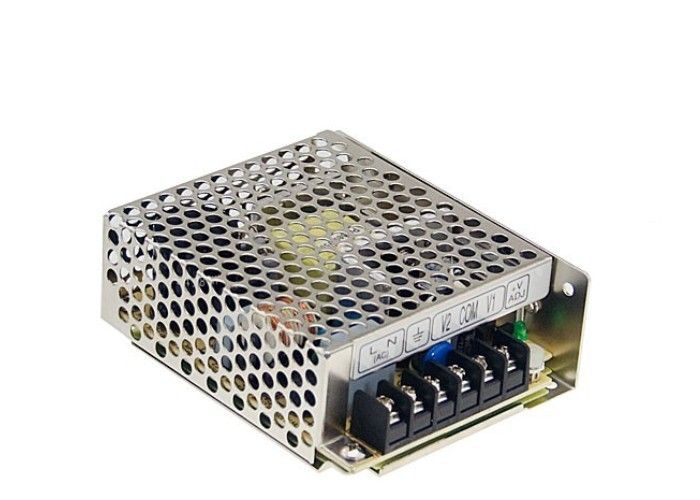

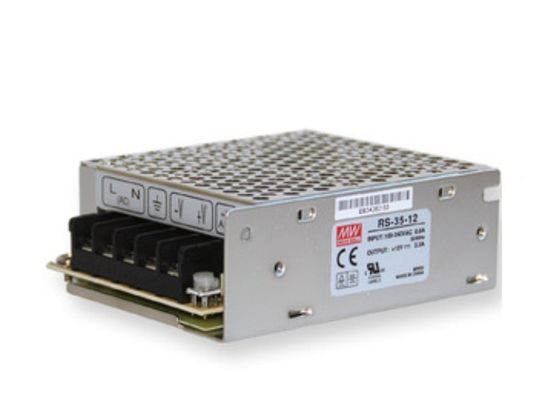

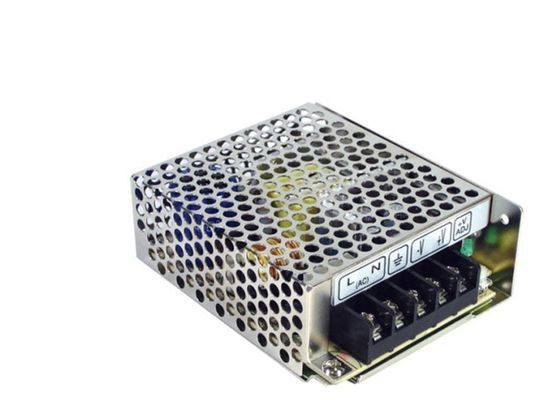

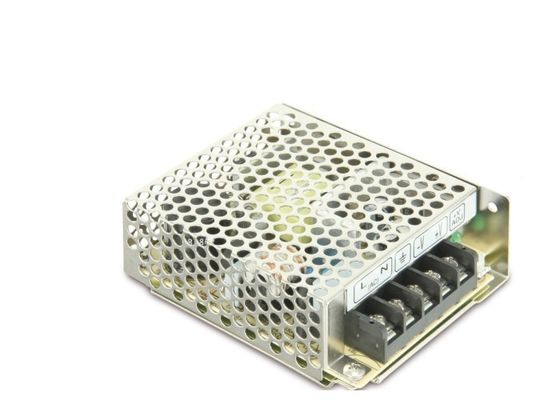

35w AC DC LED Power Supply LED Driver 12V RS-35 Constant Voltage

35w AC DC LED Power Supply LED Driver 12V RS-35 Constant Voltage

  • 35w AC DC LED Power Supply LED Driver 12V RS-35 Constant Voltage
  • 35w AC DC LED Power Supply LED Driver 12V RS-35 Constant Voltage
  • 35w AC DC LED Power Supply LED Driver 12V RS-35 Constant Voltage
  • 35w AC DC LED Power Supply LED Driver 12V RS-35 Constant Voltage
35w AC DC LED Power Supply LED Driver 12V RS-35 Constant Voltage
Product Details:
Place of Origin: China
Brand Name: Meanwell
Certification: CE,ROHS, TUV, UL
Model Number: RS-35 Single Output Switching Power Supply
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Export Standard Packaging
Delivery Time: 5-7 work days after receiving deposit
Payment Terms: Ex works
Supply Ability: 30000pcs/month
Contact Now
Detailed Product Description
DIMENSION: 99*82*36mm (L*W*H) PACKING: 0.3Kg; 45pcs/14Kg/0.83CUFT
Product Type: Meanwell RS-35 Series Switching Power Adapter DC Voltage: 3.3V, 5V, 12V, 15V, 24V, 48V
Overload Protection: 110%~150% Hiccup Mode, Auto-recovery (150% ~190% For RID-125-1205/2405) WORKING HUMIDITY: 20 ~ 90% RH Non-condensing
SAFETY STANDARDS: UL60950-1, TUV EN60950-1 Approved WORKING TEMP.: -25 ~ +70 (Refer To "Derating Curve")
High Light:

high power led power supply

,

LED Light Power Supply

35w AC DC LED Power Supply LED Driver 12V RS-35 Constant Voltage





G3 Series RS-35 Enclosed Switching Power Supply Features:

1. Universal AC input / Full range
2. Protections: Short circuit / Over load / Over voltage
3. Cooling by free air convection
4. LED indicator for power on
5. 100% full load burn-in test

6. No load power consumption <0.5W
7. All using 105 celsius long life electrolytic capacitors
8. Withstand 300VAC surge input for 5 second
9. High operating temperature up to 70
10. Withstand 5G vibration test
11. High efficiency, long life and high reliability
12. 3 years warranty



Meanwell G3 Series AC Switching Power Adapter:

RS-15 / RS-25 / RS-35 / RS-50 / RS-75 / RS-100 / RS-150

RD-35 / RD-50 / RD-65 / RD-85 / RD-125

RID-50 / RID-65 / RID-85 / RID-125, RT-50 / RT-65 / RT-85 / RT-125

RQ-50 / RQ-65 / RQ-85 / RQ-125





Quick Details:

35W - Single Output
Model No. Output Tol. R&N Effi.
RS-35-3.3 3.3V, 0~7.0A ±3% 80mV 76.5%
RS-35-5 5V, 0~7.0A ±2% 80mV 80.5%
RS-35-12 12V, 0~3.0A ±1% 120mV 84.5%
RS-35-15 15V, 0~2.4A ±1% 120mV 86.0%
RS-35-24 24V, 0~1.5A ±1% 200mV 88.0%
RS-35-48 48V, 0~0.8A ±1% 200mV 88.5%



General Specifications:

Model No. RS-35
RD-35
AC input voltage range 85~264VAC, 120~373VDC
AC inrush current (max.) 36A at 230VAC
DC adjustment range

±10% by potentiometer for single output;

CH1 -5%~+10% by potentiometer for multiple output

Overload protection 110%~150% hiccup mode, auto-recovery (150% ~190% for RID-125-1205/2405)
Over voltage protection 115%~135% rated output voltage, hiccup mode, auto-recovery
Withstand voltage I/P - O/P: 3kVAC, I/P - FG: 1.5kVAC, O/P - FG: 0.5kVAC, 1 minute
Working temperature -25~+70°C (refer to the derating curve for different models)
Vibration

10~500Hz, 5G 10min. /1 cycle, period for 60 min.

each along X, Y, Z axes

Safety standards UL60950-1, TUV EN60950-1 approved
EMC standards

EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11,

EN61000-6-2 (EN50082-2) (35~150W)

Connection Terminal block for input and output
Dimension (LxWxH)(mm) 99x 82x 36
Case No. 932A
Packing 45pcs /14.0kg



NOTE:

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 celsius of ambient temperature.

2. Ripple & noise are measured at 20MHz of bandwidth by using a 12'' twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

3. Tolerance: includes set up tolerance, line regulation and load regulation.

4. Line regulation is measured from low line to high line at rated load.

5. Load regulation is measured from 0% to 100% rated load.

6. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, you can refer to "EMC testing of component power supplies" or contact our sales.



35w AC DC LED Power Supply LED Driver 12V RS-35 Constant Voltage 0

35w AC DC LED Power Supply LED Driver 12V RS-35 Constant Voltage 1







Meanwell AC Switching Power Supply of Our Product Range:

G3 Series

NE Series

SE Series

LRS Series



Your inquiries are highly welcome!
