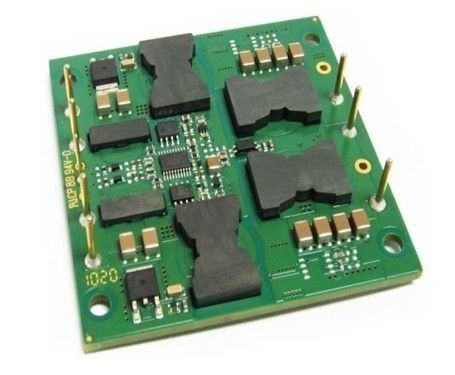

Place of Origin: China
Brand Name: Enargy
Model Number: JS150-24S12-POC
Output Power: 150W
Operating Temperature Range: -20～85℃
Input Voltage Range: 18-36Vdc
Output Voltage: 12Vdc
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Delivery Time: Negotiation
Supply Ability: 1000Pcs/week
· Output power: 150W
· Wide input range: 18-36Vdc
· High conversion efficiency: 88%
· Line regulation to ±0.5%
· Load regulation to ±0.5%
· Fixed operating frequency
· Isolation voltage :1500V
· Enable (ON/OFF) control
· Output over-load protection
· Hiccup mode short circuit protection
· Over-temperature protection
· Input under-voltage lock-out
· Output voltage trim: ±10%
These DC-DC converter modules use advanced power processing, control and packaging technologies to provide the performance, flexibility, reliability and cost effectiveness of a mature power component. High frequency Active Clamp switching provides high power density with low noise and high efficiency.
The JS series is an independently regulated single output converter that uses the industry nonstandard brick package size. The very high efficiency is a result of ENARGY CORP patented topology that uses synchronous rectification and an innovative construction design to minimize heat dissipation and allow extremely high power densities. The power dissipated by the converter is so low that a heat sink is not required, which saves cost, weight, height, and application effort. All of the power and control components are mounted to the multi-layer PCB substrate with highyield surface mount technology, resulting in a more reliable product.
Electrical characteristics apply over the full operating range of input voltage, output load and base plate temperature, unless otherwise specified. All temperatures refer to the operating temperature at the center of the base plate. All data testing at Ta=25oC except especial definition.
|Input Voltage||38||Vdc||Continuous, non-operating|
|38||Vdc||Operating transient protection,<100mS|
|Isolation Voltage||2000||Vdc||Input to Output|
|Enable to Vin-Voltage||-2.0||10||Vdc|
|Input Voltage Range||18||24||36||Vdc||Continuous|
|Under-Voltage Lockout||16.8||17.8||Vdc||Turn-on Threshold|
|Maximum Input Current||11||A||Full Load;18Vdc Input|
Full load, rating input voltage,
|Disabled Input Current||10||mA||Enable pin low|
|Recommend External Input Capacitance||100||µF||Typical ESR 0.1-0.2Ω|
|Output Voltage Set Point||11.88||12.00||12.12||Vdc||Nominal input; No load|
|Output Voltage Range||11.76||12.00||12.24||Vdc|
|Output Current Range||0.1||12.5||A||Subject to thermal derating; Figures 5-8|
|Line Regulation||±0.02||±0.50||%||Low line to high line; full load|
|Load Regulation||±0.02||±0.50||%||Min. load to full load; nominal input|
|Temperature Regulation||±0.03||±0.05||% / °C||Over operating temperature range|
|Current Limit||13.75||15||16.3||A||Output voltage 95% of nominal|
|Short Circuit Current||0.1||15||16.3||A||Output voltage <250 mV|
|Ripple (RMS)||20||mV||Nominal input; full load; 20 MHz bandwidth; Figure 13|
|Maximum Output Cap.||8000||μF||Nominal input; full load|
|Output Voltage Trim||±10||%||Nominal input; full load;|
Change in Output Current
|360||mV||50% to 75% to 50% Iout max; Figure 11|
Change in Output Current
|480||mV||50% to 75% to 50% Iout max; Figure 12|
|Settling Time||200||µS||To within 1% Vout nom.|
|Turn-on Time||10||mS||Full load; Vout=90% nom. Figure 9|
|Shut-down Fall Time||300||µS||Full load; Vout=10% nom. Figure 10|
|Output Voltage Overshoot||3||%|
|Switching Frequency||180||200||220||KHz||Regulation stage and Isolation stage|
|Output Voltage Trim||10||%||Trim Up, Trim Pin to Vout(-).|
|10||%||Trim Down, Trim Pin to Vout(+).|
|Enable(ON/OFF)Control(Pin4)||See part 7.1|
Enable Source Current
|5||Vdc||Enable pin floating|
|Enable (ON/OFF) Control Positive Logic||5||10||Vdc||ON-Control, Logic high or floating|
|-0.5||2.0||Vdc||OFF-Control, Logic low|
|Over-Load Protection||110||120||130||%||Current-Mode, Pulse by Pulse Current Limit Threshold,(%Rated Load)|
|Short-Circuit Protection||80||mΩ||Type: Hiccup Mode, Non-Latching, Auto-Recovery,Threshold,Short-Circuit Resistance|
|Over-Temperature Protection||105||℃||Type: Non-Latching, Auto-Recovery；Threshold, PCB Temperature|
|Isolation Voltage||1500||Vdc||Input to Output|
|1500||Vdc||Input to Base|
|500||Vdc||Output to Base|
|Isolation Resistance||10||MΩ||At 500VDC to test it when atmospheric pressure and R.H. is 90%|
|Weight||3.5(99)||Oz (g)||Open Frame|
|MTBF ( calculated )||1||MHrs||TR-NWT-000332; 80% load,300LFM, 40℃ Ta|
|Operating Temperature||-40||+100||℃||Extended, base PCB temperature|
|Humidity||20||95||%R.H.||Relative Humidity, Non - Condensing|
|Needle Flame Test (IEC 695-2-2)||Test on entire assembly; board & plastic components UL94V-0 compliant|
|Vibration||10-55Hz sweep, 1 min./sweep, 120 sweeps for 3 axis|
|Mechanical Shock||100g min, 2 drops in x and y axis, 1 drop in z axis|
|Cold(in operation)||IEC60068-2-1 Ad|
|Damp heat||IEC60068-2-67 Cy|
|Temperature Cycling||-40°C to 100°C, ramp 15°C/min., 500 cycles|
|Power/Thermal Cycling||Vin = min to max, full load, 100 cycles|
|Design Marginality||Tmin-10°C to Tmax+10°C, 5°C steps, Vin = min to max, 0-105% load|
|Life Test||95% rated Vin and load, units at derating point, 1000 hours|
Figure 1: Efficiency at nominal output voltage vs. load current for minimum, nominal, and maximum input voltage at 25°C.
Figure 2: Efficiency at nominal output voltage and 60% rated power vs. airflow rate for ambient air temperatures of 25°C ,40°C and55°C (nominal input voltage).
Figure 3: Power dissipation at nominal output voltage vs. load current for minimum, nominal, and maximum input voltage at 25°C.
Figure 4: Power dissipation at nominal output voltage and 60% rated power vs. airflow rate for ambient air temperatures of 25°C, 40°C, and 55°C (nominal input voltage).
Figure 5: Maximum output power derating curves vs. ambient air temperature for airflow rates of 0 LFM through 400 LFM with air flowing from pin 1 to pin 5 (nominal input voltage).
Figure 6: Thermal plot of converter at full load current (150W) with 25°C air flowing at the rate of 100 LFM. Air is flowing across the converter from pin 1 to pin 5 (nominal input voltage).
Figure 7: Maximum output power-derating curves vs. ambient air temperature for airflow rates of 0 LFM through 400 LFM with air flowing from input to output (nominal input voltage).
Figure 8: Thermal plot of converter at full load current (150W) with 25°C air flowing at the rate of 100 LFM. Air is flowing across the converter from input to output (nominal input voltage)
Figure 9: Turn-on transient at full load (resistive load) (20 ms/div).Input voltage pre-applied.
Ch 1: Vout (5V/div).Ch 2: ON/OFF input(5V/div)
Figure 10: Shut-down fall time at full load (400 µs/div).
Ch 1: Vout (5V/div).Ch 2: ON/OFF input (5V/div).
Figure 11: Output voltage response to step-change in load current (50%-75%-50% of Iout(max); dI/dt = 0.1A/μs). Load cap: 10μF, 100 mΩ ESR tantalum capacitor and 1μF ceramic capacitor. Ch 1: Vout (100mV/div).
Figure 12: Output voltage response to step-change in load current (50%-75%-50% of Iout(max): dI/dt = 2.5A/μs). Load cap: 470μF, 30 mΩ ESR tantalum capacitor and 1μF ceramic cap. Ch 1: Vout (100mV/div).
Figure 13: Output voltage ripple at nominal input voltage and rated load current (100mV/div). Load capacitance: 1μF ceramic capacitor and 10μF tantalum capacitor. Bandwidth: 20 MHz.
The Enable pin allows the power module to be switched on and off electronically. The Enable (ON/OFF) function is useful for conserving battery power, for pulsed power application or for power up sequencing.
The Enable pin is referenced to the -Vin. It is pulled up internally, so no external voltage source is required. An open collector (or open drain) switch is recommended for the control of the Enable pin.
When using the Enable pin, make sure that the reference is really the -Vin pin, not ahead of EMI filtering or remotely from the unit. Optically coupling the control signal and locating the opto coupler directly at the module will avoid any of these problems. If the Enable pin is not used, it can be left floating (positive logic) or connected to the -Vin pin (negative logic).Figure A details five possible circuits for driving the ON/OFF pin. Figure B is a detailed look of the internal ON/OFF circuitry.
·Input Under-Voltage Lockout: The converter is designed to turn off when the input voltage is too low, helping avoid an input system instability problem, The lockout circuitry is a comparator with DC hysteresis. When the input voltage is rising, it must exceed the typical Turn-On Voltage Threshold value(listed on the specification page) before the converter will turn on. Once the converter is on, the input voltage must fall below the typical Turn-Off Voltage Threshold value before the converter will turn off.
·Output Current Limit: The maximum current limit remains constant as the output voltage drops. However, once the impedance of the short across the output is small enough to make the output voltage drop below the specified Output DC Current-Limit Shutdown Voltage, the converter into hiccup mode indefinite short circuit protection state until the short circuit condition is removed. This prevents excessive heating of the converter or the load board.
·Over-Temperature Shutdown: A temperature sensor on the converter senses the average temperature of the module. The thermal shutdown circuit is designed to turn the converter off when the temperature at the sensed location reaches the Over-Temperature Shutdown value. It will allow the converter to turn on again when the temperature of the sensed location falls by the amount of the Over-Temperature Shutdown Restart Hysteresis value.
The output ripple is composed of fundamental frequency ripple and high frequency switching noise spikes. The fundamental switching frequency ripple (or basic ripple) is in the 100KHz to 1MHz range; the high frequency switching noise spike (or switching noise) is in the 10 MHz to 50MHz range. The switching noise is normally specified with 20 MHz bandwidth to include all significant harmonics for the noise spikes.
The easiest way to measure the output ripple and noise is to use an oscilloscope probe tip and ground ring pressed directly against the power converter output pins, as shown below. This makes the shortest possible connection across the output terminals. The oscilloscope probe ground clip should never be used in the ripple and noise measurement. The ground clip will not only act as an antenna and pickup the radiated high frequency energy, but it will introduce the common-mode noise to the measurement as well.
The standard test setup for ripple & noise measurements is shown in Figure D. A probe socket (Tektronix, P.N. 131.0258-00) is used for the measurements to eliminate noise pickup associated with long ground clip of scope probes.
1. Pins 3 are 0.040” (1.02mm) dia.
2. All other pins are 0.060” (1.52mm) dia.
3. Tolerances: x.xx±0.02 in. (x.x±0.5mm)
x.xxx±0.010 in. (x.xx±0.25mm)
|1||Vin(+)||Positive input voltage|
|2||Vin(+)||Positive input voltage|
|3||Enable||TTL input to turn converter ON and OFF, referenced to Vin(-), with internal pull up.|
|4||Vin(-)||Negative input voltage|
|5||Vin(-)||Negative input voltage|
|6||Vout(-)||Negative output voltage|
|7||Vout(+)||Positive output voltage|
|8||Trim||Output voltage trim. Leave TRIM pin open for nominal output voltage.|
