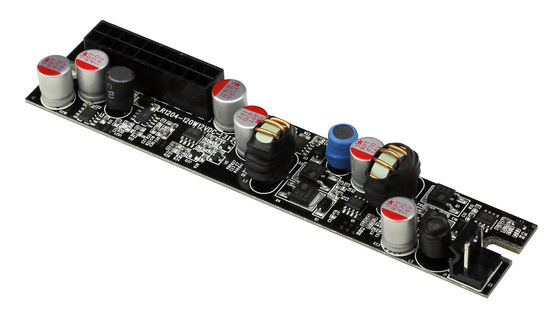

Hardback Version DC-DC Power Module , 120 W Computers DC-DC Board Power Supply

Hardback Version DC-DC Power Module , 120 W Computers DC-DC Board Power Supply

Hardback Version DC-DC Power Module , 120 W Computers DC-DC Board Power Supply

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: e.mini
Certification: CE/RoHS/FCC/PSE
Model Number: LR1204-120W12VDC-Q

Payment & Shipping Terms:

Minimum Order Quantity: 20 Pieces
Packaging Details: Work Bin and Handle Box
Delivery Time: Within 2-7 working days after getting deposit
Payment Terms: T/T, Western Union, Paypal, Credit Card
Supply Ability: 25000 Pieces per Month
Detailed Product Description
Output Power: 120W Size: 153.9*30mm
Version: Hardback Version Input Voltage Range: 11.4VDC - 12.6VDC
Output Voltage: +3.3V, +5VSB, +5V, +12V, -12V Output Current: 10A, 2A, 10A, 4.5A, 0.15A



Hardback Version DC-DC Power Module , 120 W Computers DC-DC Board Power Supply





Competitive Advantages:

1. Over current protection

2. Over voltage protection

3. Thermal protection

4. Short-circuit protection

5. Professional mini itx case manufacturer

6. OEM / ODM welcome



Why Realan:
We are a very professional manufacturer for mini computer cases and power supplies, with the rich experience for over 10 years of developing and producing pc cases. Determination achieves quality, Realan is always keeping the production philosophy that doing by heart, win to win, providing the higher products value cooperation. And our products have been exported to East Asia, Southeast Asia, Middle East, North America, South America, Europe, Africa, Australia and other countries.
Please don't hesitate to contact us if you have any questions or concerns before or after your purchase. We are committed to your 100% satisfaction.



Detailed Specification:



INPUT REQUIRED:

INPUT VOLTAGE RANGE:11.4VDC—12.6VDC

INCOMING CURRENT RANGE:12.0A Max @11.4VDC

INPUT SURGING CURRENT:12.0Vmax@12VDC

WORK EFFICIENCY:≥85%



         OUTPUTREQUIRED: FIVE GROUPS OF POWER OUTPUT                         ☆TESTING EMPHASIS

Item

Output voltage

Output current(A)

min(V)

avg(V)

max(V)

ripplewave(mV)

Sb current

avg

peak

+3.30V

+3.14

+3.30

+3.47

50

0

8.0

10.0

+5.00VSB

+4.75

+5.00

+5.25

50

0.1

1.6

2.0

+5.00V

+4.75

+5.00

+5.25

50

0

8.0

10.0

+12.00V

+11.40

12.00

+12.6

120

0

4.0

4.5

-12.00V

-11.40

-12.00

-12.6

120

0

0.1

0.15





 output:



Defencive function  (for+3.3V,+12V,+5.00V&+5.00VSB power output)

OCP: output shut down when output current reaches the peak point.

Short-circuit protection:output shut down when short-circuit.





Environment description:



Working temperature/humidity       15℃ to 35℃ / 45%-75%

Reposition temperature//humidity   -40℃ to +70℃/ 10%-90%

Atmospheric pressure            86Kpa—106Kpa



Other parameters:

Working frequency:Icbuilt-in oscillator(250-350)kHz@Vcc=12V





Feedback reference voltage:0.8V±2%@12VDC
