| Gaoxin Industrial Park,Guangming New Zone,Shenzhen City, Guangdong Province, China | Angelwang66@126.com |
 |
| Place of Origin: | Shenzhen,China |
| Brand Name: | RAYTOP |
| Certification: | CE, RoHS, FCC |
| Model Number: | RT-WMA-0500100 |
| Minimum Order Quantity: | 100 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | PE Bag, Master Carton, Customer package available. |
| Delivery Time: | 15-20 working days. |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 200,000 Pcs monthly. |
| Product Name: | 5V 1A Wall Mount Power Adapter | Input: | AC10-240V, 50/60Hz, 0.3A |
|---|---|---|---|
| Output: | 5V, 1A / 6V 1A, 12V 0.5A | AC Plug: | EU,US,UK,SAA,CCC |
| AC Cable: | 2x0.5mm2, 1.2M | DC Plug: | AWG24, 1.2M |
| DC Connector: | 5.5x2.1mm, 5.5x2.5mm | Color: | Black |
| Protection: | Short Circuit Protection, Over Voltage Protection, Over Load Protection | ||
| High Light: | Wall Mount Power Supply,ac to dc power converter |
||

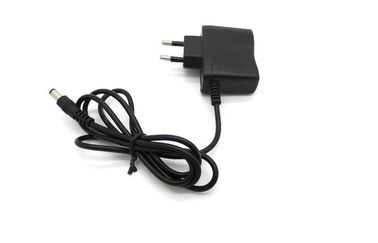

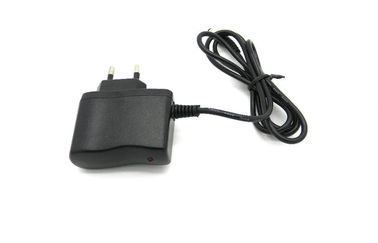

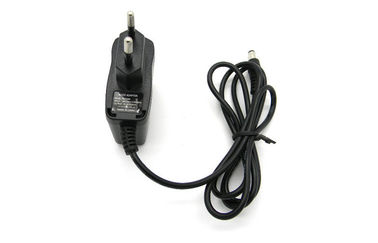

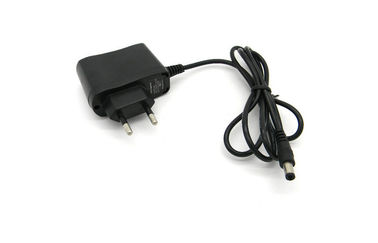

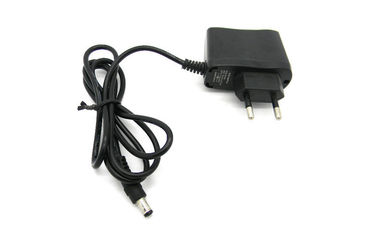

China Supplier High Quality 5V 1000mA Wall Mount Power Supplies DC Tip 5.5x2.1mm
Description:
This is an wallmount style AC/DC power adapter, which convert AC mains into constant low votage 5V output. It has high efficiency as well as steady performance. The tip size and plug type can be changeable.
Input: AC100-240V, 0.3A max.
Frequency: 50/60Hz
Output: DC5V, 1000mA
DC Cable: 24AWG, Copper, length: 1.2M
Plug: EU, UK, US, SAA, CCC
Efficiency: 80%
Features:
-World wide voltage input;
-High efficiency:>80%;
-Protection: Short circuit protection, over voltage protection, over current protection;
-MTBF: 50,000 hours;
-Low ripple and nosie;
-Approval: UL,CSA,CE,CCC,CB,GS,C-tick,PSE,SAA,KC,S-mark,FCC,WEEE,RoHS PAHs REACH
-Warranty: 2 years.
Specifications:
|
Input |
Rated Input Voltage |
AC100~240V |
|
Input Voltage Range |
AC 90~264V |
|
|
Rated Frequency |
50/60 Hz |
|
|
Input Frequency Range |
47~63 Hz |
|
|
Input AC Current |
0.2A |
|
|
Inrush Current |
30A |
|
|
Output |
Rated Output Voltage |
DC5V |
|
Rated Output Current |
1000mA |
|
|
Rated Power |
5W |
|
|
Ripple and Noise |
150mV p-p |
|
|
Standby Power Consumption |
0.3W |
|
|
Turn-on |
5s |
|
|
Hold-up |
20s |
|
|
Over Voltage Protection |
Yes |
|
|
Over Current Protection |
Yes |
|
|
Short Circuit Protection |
Yes, automatically recover after short circuit removed. |
|
|
Reliability |
Hi-pot |
3000Vac |
|
Insulation Resistance |
Input to output at 500Vdc |
|
|
Leakage Current |
5mA |
|
|
EMI Standards |
FCC Part 15B Class B |
|
|
RoHS Compliant |
Yes |
|
|
MTBF |
50,000 hours |
|
|
Burn-in |
40+/-5 ℃, full load, 12 hours |
|
|
Drop Test |
6 direction, each one time from height 1.0M |
|
|
Environmental |
Operating Temperature |
0~40℃ |
|
Operating Humidity |
10~80% |
|
|
Storage Temperature |
-20~65℃ |
|
|
Storage Humidity |
0~90% |
|
|
Safety Approvals |
CE, RoHS, FCC, UL, SAA |
|
|
Warranty |
2 Years |
|
Applications:
used for digital devices, Routers, Massager, Toys, Emergency light, Home appliance electrical products etc.
Competitive Advantage:
-Open private model w/o extra cost for you;
-0.3% free backup of order quantity;
-Direct factory price without middle man.
-High performance-to-price ratio;
-Perfect after-sale service
Tag: Switch mode power adapter, 5V Power adapter, AC/DC Power Supplies
