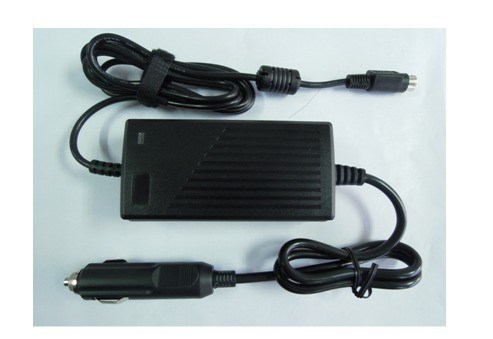

Name: Input 9 ~ 32Vdc Medical Power Supply Single 60W Output DC-DC Adapter MD60-12S24
Brand: Shenzhen YONP Power Co.,Ltd
SKU: MD60-12S24
Availability: InStock

خانه محصولات پزشکی منبع تغذیه

Input 9 ~ 32Vdc Medical Power Supply Single 60W Output DC-DC Adapter MD60-12S24

جزئیات محصول:

Place of Origin:	China
نام تجاری:	Enargy
Model Number:	MD60-12S24

پرداخت:

Minimum Order Quantity:	1pcs
قیمت:	negotiable
Delivery Time:	1-8 Weeks
Payment Terms:	Negotiation
Supply Ability:	15000Pcs/week

مخاطب

توضیحات محصول جزئیات

برجسته کردن:	medical power adapter

Medical Power Supply 60W Single Output DC-DC Adapter MD60-12S24

Key Features

Input voltage range: 9~32Vdc

Output rating: 60W

High efficiency: 86%

Voltage regulation: ≤±1%

Load regulation: ≤±3%

Low ripple&noise:≤240mV

short circuit protection

Output over voltage protection

Output over current protection

Over temperature protection

Natural cool

RoHS compliant

UL94V-0 flame-retarded rating

Product Overview

This DC-DC adapter use advanced power processing, control and packaging technologies to provide the performance, flexibility, reliability and cost effectiveness of a mature power component. High frequency switching provides high power density with low noise and high efficiency.

Electric Characteristics

Input Characteristics

Parameter	Min	Typ	Max	Units	Notes
Input voltage range	9	24	32	Vdc
Max. input current			14	A	12Vdc input voltage output transient 6A
No-load power loss			2	W
Efficiency		86		%	Vin=12Vdc,Io=2.5A,Ta=25℃

Output Characteristics

Parameter	Min	Typ	Max	Units	Notes
Output rating			60	W	Vin=9-32Vdc
Output voltage range	23.52	24	24.48	Vdc	Vin=9-32Vdc
Output current range	0		2.5	A
Voltage regulation			±1	%
Load Regulation			±3	%
Ripple & noise		200	240	mV	Rated input,full load, 20 MHz bandwidth
Turn-on rise time			50	ms	Full load,10%~90% Vout
Output Capacitance			2200	μF
Output voltage overshoot			±5	%

Protection Characteristics

Parameter	Min	Typ	Max	Units	Notes
Over voltage protection	26.4	28.8	31.2	Vdc	Hiccup .
Short – Circuit Protection			10	mΩ	Hiccup
Over temperature protection					Auto- recovery
Output over current protection	6		7.5	A

General Characteristics

Parameter	Min	Typ	Max	Units	Notes
MTBF	500			KHrs	TR-NWT-000332; 80% load,300LFM, 40℃ Ta
Weight		350		g

Environmental Characteristics

Parameter	Min	Typ	Max	Units	Notes
Operating temperature	0		+40	℃
Storage temperature	-40		+85	℃
Relative humidity	0		90	%
Altitude			3000	m
Cooling-down method					Natural cooling
Flame retardant grade					UL94V-0

Mechanical Outline

Length×width×heigth:119×61×35 (mm),4.69×2.4×1.38 (in)

Input 9 ~ 32Vdc Medical Power Supply Single 60W Output DC-DC Adapter MD60-12S24 0

Connector designations

Connector code	Function
CON1	24Vdc output power line
CON1	DC output power line, length 1.5m,16AWG,magnet ring,4pin output,magic stick
CON2	12-32Vdc input power line
CON2	Length 600mm,14AWG, internal 20A fuse
