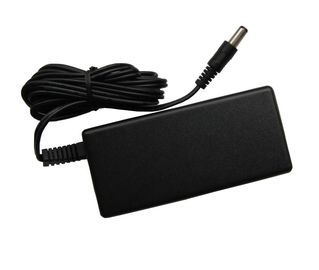

12V 1A Desktop DC Power Adapter For LCD Liquid Crystal Display , High Reliability

Electronics Specification :

Input Voltage Range:

90~264Vac

AC current:

1.0A

Frequency:

50/60Hz

Output Voltage:

12.0Vdc

Output Voltage Range :

11.40Vdc to 12.60Vdc

Maximum Output Current :

3.0A

Line regulation:

±1%

Load regulation:

±5%

Over current protection:

Hiccup mode, Auto recovery

Over voltage protection:

Power shutdown, Auto recover

Environment :

Working Temp.:

0~40℃

Working Humidity:

20%~90% RH non-condensing

Storage Temp. & Humidity:

-20℃~85℃, 10%~95% RH

Reliability :

Hi-Pot Testing Voltage :

I/P to O/P : 3.0 (60Sec.) KVac

Safety Standard :

EN60950

EMI Standard :

EN55022B

Safety Approval :

Certificate

UL, CE, FCC, C-TICK,CB

Mechanical Characteristics

Size:

(L)97*(W)45*(H)28mm

AC connector

IEC8/IEC14

DC Cable:

1.5M

DC connector:

5.5*2.1*12mm, other type connector avaible
