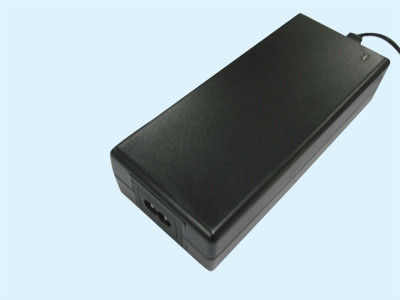

LED Light Desktop Power Adapter 12V 6A , PFC Built in , Over Voltage Protection

LED Light Desktop Power Adapter 12V 6A , PFC Built in , Over Voltage Protection

LED Light Desktop Power Adapter 12V 6A , PFC Built in , Over Voltage Protection
Product Details:
Contact Now
Detailed Product Description
High Light:

external power supply

,

external power supply

LED Light Desktop Power Adapter 12V 6A , PFC Built in , Over Voltage Protection



Feature:



. Input Voltage : 90 ~ 264 Vac

. High Efficiency , Low Temperature

. PFC Function Built in, PF>0.93

. Protection : Over Current , Short Circuit , Over Voltage

. Warranty : 2 years

. Approved By :  UL CE CB C-TICK FCC



Description:



Electronics Specification :

Input Voltage Range:

90~264Vac

AC current:

1.5A

PF

>0.93

Frequency:

50/60Hz

Inrush Current:

30A/230Vac

Leakage Current:

0.25mA/240Vac

Output Voltage:

12.0Vdc

Output Voltage Range :

11.4~ 12.6Vdc

Max Output Current :

6.0A

Efficiency :

 > 85%

Line regulation:

±1%

Load regulation:

±5%

Over current protection:

Hiccup mode, Auto recovery

Over voltage protection:

Power shutdown, Auto recover

Environment :

Working Temp.:

0~40℃

Working Humidity:

20%~90% RH non-condensing

Storage Temp. & Humidity:

-20℃~85℃, 10%~95% RH

Reliability :

Hi-Pot Testing Voltage :

I/P to O/P : 3.0 (60Sec.) KVac

Safety Standard :

EN60950

EMI Standard :

EN55022B

Safety Approval :

Certificate

UL, CE, FCC, C-TICK,CB

Mechanical Characteristics

Size:

(L)150*(W)65*(H)35.5mm

AC connector

IEC8/IEC14

DC Cable:

1.5M

DC connector:

5.5*2.1*12mm, other type connector avaible



LED Light Desktop Power Adapter 12V 6A , PFC Built in , Over Voltage Protection 0





Certificate:



LED Light Desktop Power Adapter 12V 6A , PFC Built in , Over Voltage Protection 1





Applications:



widely used in household appliances, IT digital products,  medical equipments, communication equipments, instrumentations, bank data equipment, computer peripheral products, security monitoring system, industrial and light field equipment and other products.
