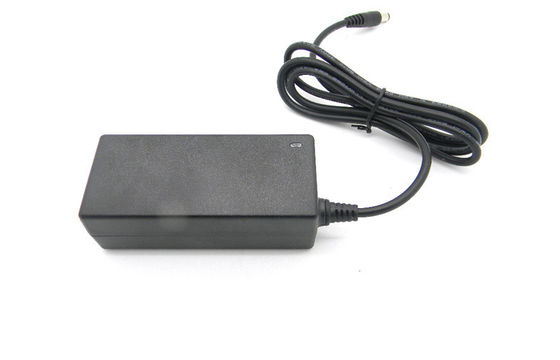

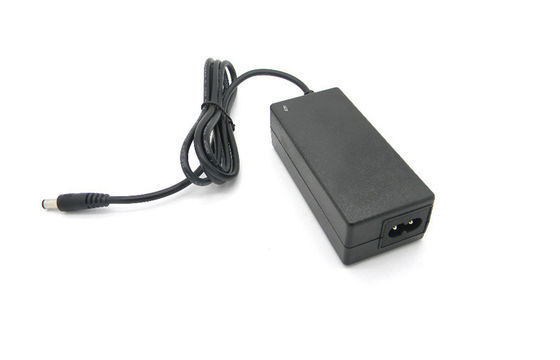

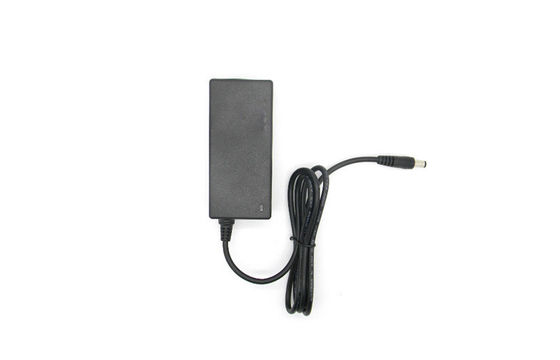

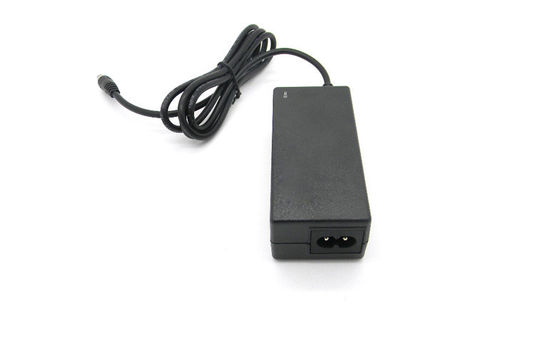

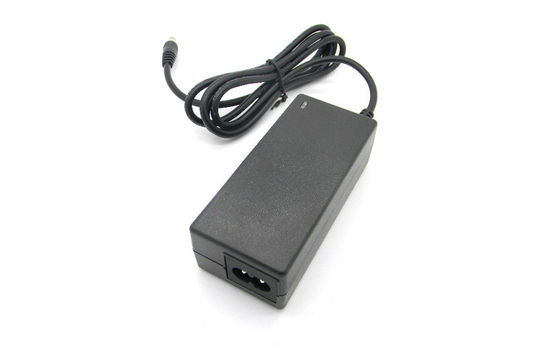

Over Voltage AC To DC Power Adapter Desktop 36W 12V UK Plug For LCD TV

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	RAYTOP
Certification:	CE, RoHS, FCC
Model Number:	ETZ12003000A

Payment & Shipping Terms:

Minimum Order Quantity:	1K
Price:	Negotiable
Packaging Details:	White box/Master Carton
Delivery Time:	15-20 work days.
Payment Terms:	T/T, L/C
Supply Ability:	200,000 Pcs monthly.

Contact Now

Detailed Product Description

AC Cable:	1.2M	Application:	Camera, LCD TV
Approval:	CE, RoHS, FCC, UL, SAA	Cable Material:	Copper
DC Cable:	1.2M	EMI Standards:	FCC Part 15 Class B
Feature:	High Efficency	Input:	AC100-240V
Output:	12V 3A	Output Power:	36W
Plug:	EU, UK, US, CCC, SAA	Product Name:	AC To DC Power Adapter
Protection:	Short Circuit, Over Voltage, Over Current	Operating Temperature:	0~40℃
High Light:	external power supply , ac power adapters

Over Voltage AC To DC Power Adapter Desktop 36W 12V UK Plug For LCD TV

Quick Detail:

Switching mode power adapter, DC 12V 3A, desktop style in conformity with CE, RoHS, FCC certification.

Specs:

Input: AC100-240V, 0.2A max.

Frequency: 50/60Hz

Output: DC12V, 3.0A

DC Cable: 22AWG, Copper, length: 1.2M

Plug: EU, UK, US, SAA, CCC

Features:

- Worldwide input voltage 100-240Vac;

- High efficiency:>83%;

- Protection: Short circuit protection, over voltage protection, over current protection.

- MTBF: 50,000 hours.

Approval: CE, RoHS, FCC

Warranty: 2 years

Description:

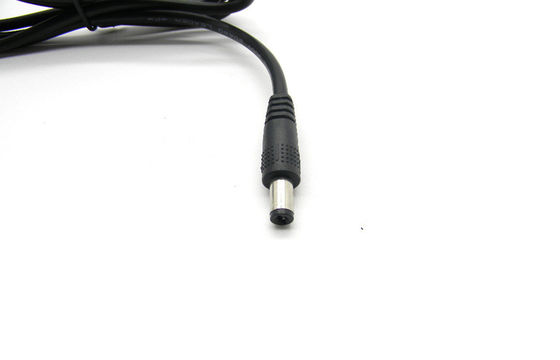

This is an AC power adapter, desktop adapter, come with single output tip 5.5x2.1x10mm. It has high efficiency as well as steady performance. The tip size and plug type can be changeable.

Note: indoor use only.

Applications:

used for LCD TV, LCD Display, Stereo, LED, LED Strip Lights, Security and Protection Products, POS system, Tax Printer, Telecom equipment etc.

Specifications:

Input	Rated Input Voltage	AC100~240V
	Input Voltage Range	AC 90~264V
	Rated Frequency	50/60 Hz
	Input Frequency Range	47~63 Hz
	Input AC Current	0.2A
	Inrush Current	30A
Output	Rated Output Voltage	DC12V
	Rated Output Current	3000mA
	Rated Power	36W
	Ripple and Noise	150mV p-p
	Standby Power Consumption	0.5W
	Turn-on	5s
	Hold-up	20s
	Over Voltage Protection	Yes
	Over Current Protection	Yes
	Short Circuit Protection	Yes, automatically recover after short circuit removed.
Reliability	Hi-pot	3000Vac
	Insulation Resistance	Input to output at 500Vdc
	Leakage Current	5mA
	EMI Standards	FCC Part 15B Class B
	RoHS Compliant	Yes
	MTBF	50,000 hours
	Burn-in	40+/-5 ℃, full load, 4 hours
	Drop Test	6 direction, each one time from height 1.0M
Environmental	Operating Temperature	0~40℃
	Operating Humidity	10~80%
	Storage Temperature	-20~65℃
	Storage Humidity	0~90%
Safety Approvals	CE, RoHS, FCC, UL, SAA
Warranty	2 Years
