Gaoxin Industrial Park,Guangming New Zone,Shenzhen City, Guangdong Province, China | Angelwang66@126.com |
Place of Origin: | Shenzhen,China |
Brand Name: | RAYTOP |
Certification: | CE, RoHS, FCC |
Model Number: | ETR190342 |
Minimum Order Quantity: | 3K |
---|---|
Price: | Negotiable |
Packaging Details: | Gift box or blister package,20 pcs per carton, customer package available. |
Delivery Time: | 15-20 work days. |
Payment Terms: | T/T, L/C |
Supply Ability: | 30000 Pcs monthly. |
AC Cable: | 1.2M | Application: | Acer, Asus, Delta, Gateway |
---|---|---|---|
Approval: | CE, FCC, RoHS, UL, SAA | Cable Material: | Copper |
DC Cable: | 1.2M | EMI Standards: | FCC Part 15 Class B |
Input: | AC100-240V | Output Power: | 65W |
Plug: | EU, US, BR, SAA, UK | Product Name: | Universal Laptop Power Adapter |
Protection: | Short Circuit, Over Voltage, Over Current | Operating Temperature: | 0~40℃ |
High Light: | replacement laptop power supply,Laptop AC Power Adapter |
Quick Detail:

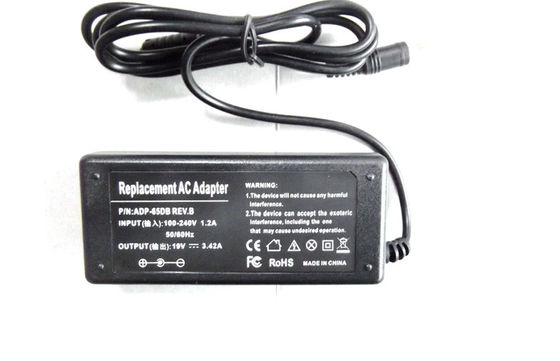

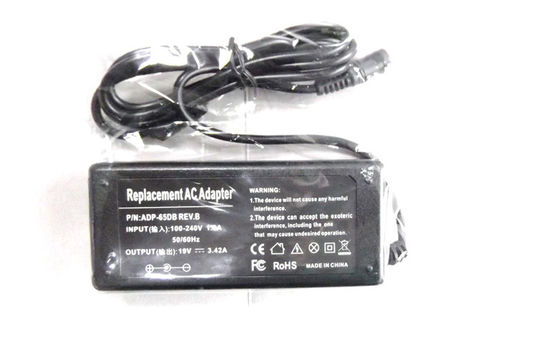

Replacement laptop AC adapter 19.0V, 3.42A, Tip 5.5x2.5mm for different notebooks like Acer, Asus, Delta, Gateway.
Specs:
Input: AC100-240V, 1.2A max.
Output: 19.0V 3.42A
Tip size: 5.5x2.5mm.
Rated output power: 65W
AC Cable: EU, UK,US, SAA, BR for optional
DC Cable: 20AWG, Copper, length: 1.2M
Features:
- High efficiency, up to 80%;
- Protection: Short circuit protection, over voltage protection, over current protection.
- MTBF: 50,000 hours.
Approval: CE, RoHS, FCC
Warranty: 1 years
Contents: 1 Adapter + 1 AC Cable
Description:
This is a replacement laptop adapter, with single output 19.0V, 3.42A, power 65Watt. The connector size is 5.5x2.5mm. This adapter has equivalent quality with the original adapters, but much cheaper than the later one. It is an idea choice when the original laptop adapter is broken.
Applications:
replacement laptop adapter to substitute original adapter when it stop work as normal, compatible with Acer, Asus, Delta, Gateway laptops etc.
Specifications:
Input |
Rated Input Voltage |
AC100~240V |
Input Voltage Range |
AC 90~264V |
|
Rated Frequency |
50/60 Hz |
|
Input Frequency Range |
47~63 Hz |
|
Input AC Current |
1.2A |
|
Inrush Current |
30A |
|
Output |
Rated Output Voltage |
DC19.0V |
Output Voltage |
DC19.0V+/-0.5V |
|
Rated Output Current |
3.42A |
|
Rated Power |
65W |
|
Ripple and Noise |
120mV p-p |
|
Standby Power Consumption |
0.5W |
|
Turn-on |
5s |
|
Hold-up |
20s |
|
Over Voltage Protection |
Yes |
|
Over Current Protection |
Yes |
|
Short Circuit Protection |
Yes, automatically recover after short circuit removed. |
|
Reliability |
Hi-pot |
3000Vac |
Insulation Resistance |
Input to output at 500Vdc |
|
Leakage Current |
5mA |
|
EMI Standards |
FCC Part 15B Class B |
|
RoHS Compliant |
Yes |
|
MTBF |
50,000 hours |
|
Burn-in |
40+/-5 ℃, full load, 12 hours |
|
Drop Test |
6 direction, each one time from height 1.0M |
|
Environmental |
Operating Temperature |
0~40℃ |
Operating Humidity |
10~80% |
|
Storage Temperature |
-20~65℃ |
|
Storage Humidity |
0~90% |
|
Safety Approvals |
CE, RoHS, FCC |
|
Warranty |
1 Years |
Competitive Advantage:
- Open private model w/o extra cost for you;
- 0.3% free backup of order quantity;
- Direct factory price without middle man;
- High performance-to-price ratio;
- Perfect after-sale service;
- OEM service.
