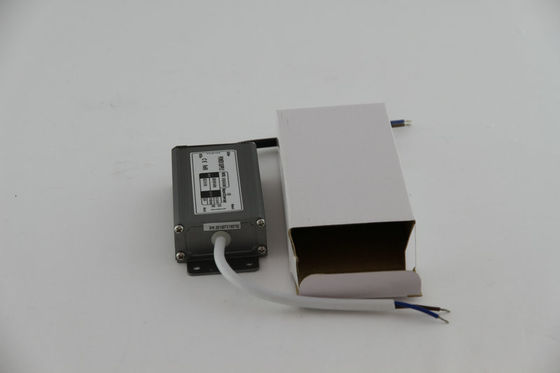

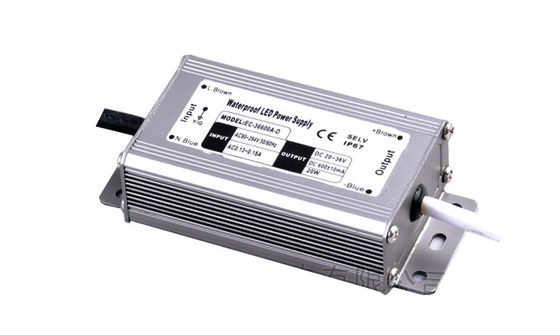

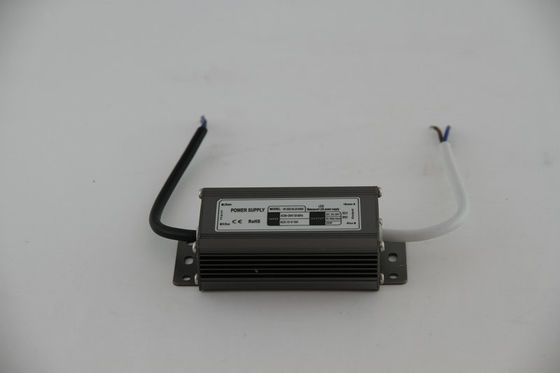

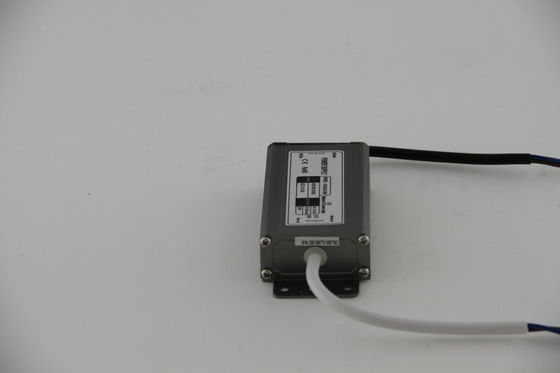

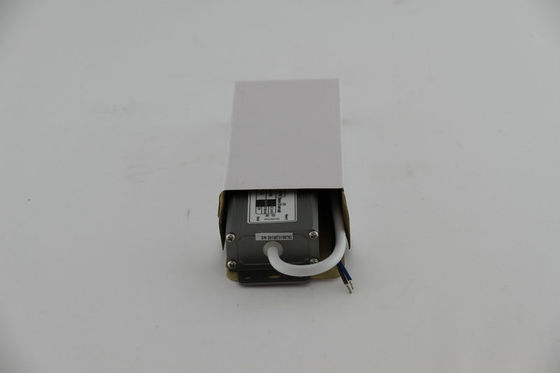

50Hz Switching Power Constant Current Outdoor LED Driver 600mA 20W , Single Output

50Hz Switching Power Constant Current Outdoor LED Driver 600mA 20W , Single Output

  • 50Hz Switching Power Constant Current Outdoor LED Driver 600mA 20W , Single Output
  • 50Hz Switching Power Constant Current Outdoor LED Driver 600mA 20W , Single Output
  • 50Hz Switching Power Constant Current Outdoor LED Driver 600mA 20W , Single Output
  • 50Hz Switching Power Constant Current Outdoor LED Driver 600mA 20W , Single Output
  • 50Hz Switching Power Constant Current Outdoor LED Driver 600mA 20W , Single Output
50Hz Switching Power Constant Current Outdoor LED Driver 600mA 20W , Single Output
Product Details:
Place of Origin: China
Brand Name: DongDaHua
Certification: CE RoHS
Model Number: HF-020-36-20-0A60
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: /
Packaging Details: as per your request
Delivery Time: 3-7 days on averange
Payment Terms: TT;Paypal
Supply Ability: 3000pcs/Day
Contact Now
Detailed Product Description
Product Name: Constant Current LED Driver Output Dc Voltage: 20~36V
Output Rated Current: 600mA Output Rated Power: 23.4W
Input Frequency Range: 47~60Hz IP: IP67
High Light:

constant current Source led driver

,

led light driver

Indoor and Outdoor Constant Current LED Driver 600mA 20W



Features:


Universal AC input/Full range
Protections: Short circuit/OLP/OVP
Meet EMC standards
100% full load burn-in test
High efficiency,long life and high reliability
IP67 design for indoor and outdoor


50Hz Switching Power Constant Current Outdoor LED Driver 600mA 20W , Single Output




Specifications:


Model HF-020-36-20-OA60
Output Dc Voltage 20~36V±5%
Rated Current 600mA
Rated Power 23.4W
Ripple&Noise(Max) 180mV
Current Tolerance ±20mA
Setup,Rise Time 100ms/220VAC
Hold Up Time(Typ.) 80ms/220VAC
Input Voltage Range 90~264VAC
Frequency Range 47~60Hz
Power Factor(Typ) PF>0.5/220VAC
Efficiency(Typ) 82%
Ac Current(Typ) 0.26A/235V
Inrush Current(Typ) Cold-start current 0.9A/235V
Protection Short Circuit Protection type:recovers automatically after fault conditions is removed
Overlaod Overload protection@145~160%above peak rating
Over Temperature protection typer:shut down o/p voltage.re-power on to recover
Environment Working Temp -30~ +60℃(Refer to output load derating curve)
Working Humidity 20~90%RH no-condensing (Waterproof)
Storage Temp Humidity -40~ +80℃,10~90%RH
Safety&Emc Safety Standards CE Mark(LVD),IP67
Withstand Voltage I/P-O/P:1.5KVAC IP-GND:1.5KVAC
Emc Test Standards EN 55015:2006; EN 61547:1995+A1:2000 ;EN 61000-3-2:2006; EN61000-3-2:1995+A2:2005
EN 61347-1:2008 EN 61347-2-13:2006
NOTE 1.All parameters NOT specially mentioned are measured at 220VAC input,rated laod and 25℃ of ambient temperature.
2.Ripple&noise are measured at 20MHz of bandwidth by using a12''twisted pair-wire terminated with a 0.1uf&10uf parallel capacitor.
3.Tolerance:includes set up tolerance,line regulation and load regulation.



Application:


It’s suitable for an extremely wide range of applications, including:
LED, CCTV camera;
Communications and security products;
LED Strip Lighting/ LED lamp / LED Light, LED / LCD display.
