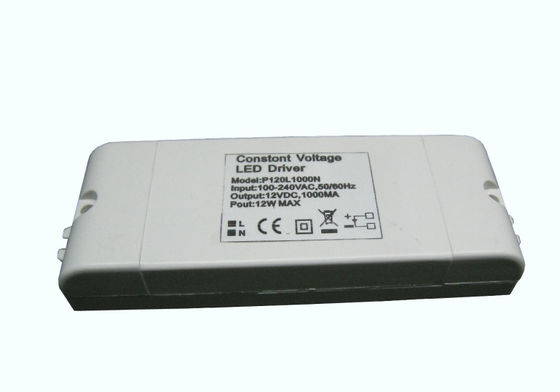

Portable Constant Voltage LED Driver For LED Lights , Outdoor LED Driver

Portable Constant Voltage LED Driver For LED Lights , Outdoor LED Driver

Portable Constant Voltage LED Driver For LED Lights , Outdoor LED Driver
Product Details:
Contact Now
Detailed Product Description
High Light:

Constant Voltage Led power supply

,

Led Downlight Driver

Portable Constant Voltage LED Driver For LED Lights , Outdoor LED Driver



Feature:



. Universal AC Input

. Power Factor Built In , PF > 0.9

. Protections: Overload, Short Circuit

. Screw terminal connection

. 2 Years Warranty



Description:



AC to DC 12V1.0A 12W Constant Voltage LED Driver PFC Built In

Electronic Specifications :

Input Voltage Range :

90~264Vac; 120~370Vdc

Input Frequency :

50/60Hz

Power Factor :

> 0.9

AC Input Current (Max.) :

0.45A/100Vac

Normal Output Voltage :

12.0Vdc

Output Current :

1000mA

Power (Max) :

12.0W

Efficiency :

>80%

Output Short Circuit Protection :

Can be Shorted without damage and auto recovery.

Environment :

Working Temp.:

0~40℃

Working Humidity:

20%~90% RH non-condensing

Storage Temp. & Humidity:

-20℃~85℃, 10%~95% RH

Reliability :

Hi-Pot Testing Voltage :

I/P to O/P : 3.0 (60Sec.) KVac

Safety Standard :

EN60335-2-29

EMI Standard :

EN55022B

Mechanic :



Case Size :



118 * 43 * 21 mm ( L * W * H)





Applications:



Widely Used LED Lights
