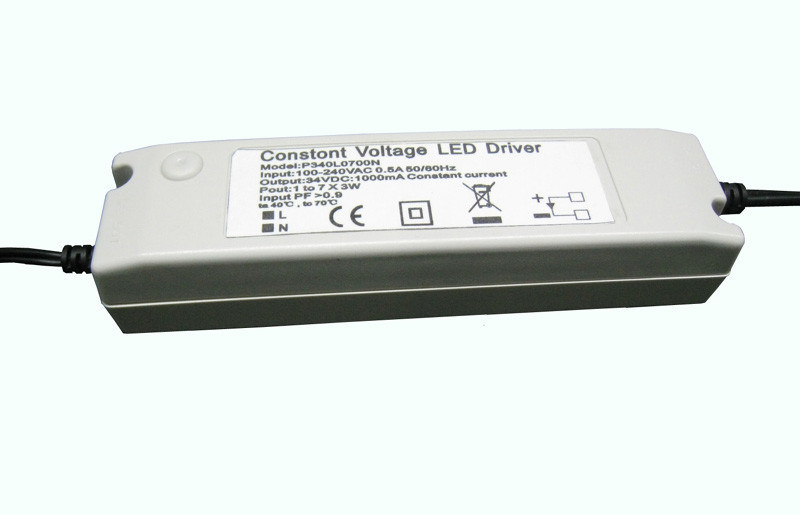

800ma Waterproof LED Constant Voltage Driver , EN55022B Power Factor > 0.9

Electronic Specifications :

Input Voltage Range :

90~264Vac; 120~370Vdc

Input Frequency :

50/60Hz

Power Factor :

AC Input Current (Max.) :

0.28A/230Vac

Normal Output Voltage :

24.0Vdc

Output Current :

0.8A

Power (Max) :

19.2W

Efficiency :

＞80%

Output Short Circuit Protection :

Can be Shorted without damage and auto recovery.

Environment :

Working Temp.:

0~40℃

Working Humidity:

20%~90% RH non-condensing

Storage Temp. & Humidity:

-20℃~85℃, 10%~95% RH

Reliability :

Hi-Pot Testing Voltage :

I/P to O/P : 3.0 (60Sec.) KVac

Safety Standard :

EN60335-2-29

EMI Standard :

EN55022B

Mechanic :

Case Size :

140 * 38 * 28 mm ( L * W * H)
