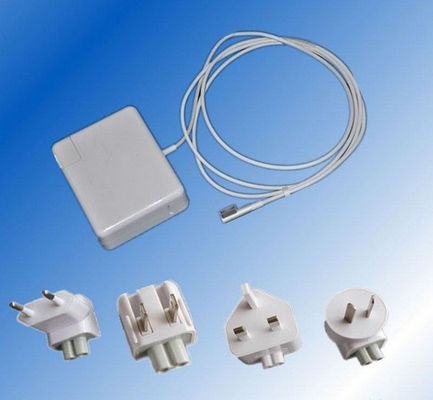

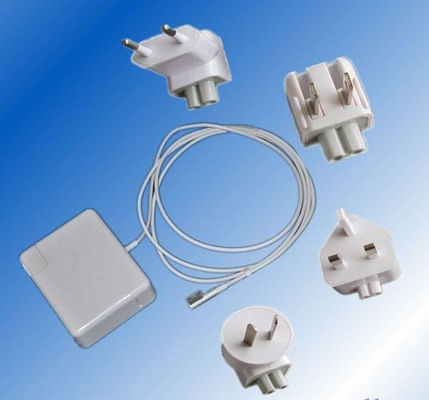

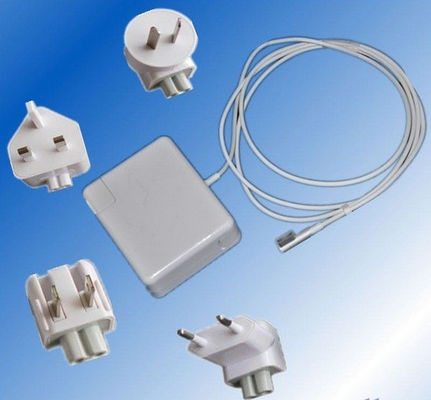

White Apple Macbook 85W Laptop Power Adapter EN60950-1 18.5V 4.6A
Feature:
> Input voltage range: 100~240VAC
> Output: 18.5V 4.6A
> Power:85W
> Effiency: 85% minimum
> Ripple and Noise: 100mV maximum
> Material: plastic case
> Output cable length: 1.8 meters
> DC jack: F30 / Flat type
> Net Weight: 400g
> Dimensiont: 74(H)*74(W)*30(H)mm
> Certificate: UL,CE,FCC,GS, SAA,C-TICK,CB,KC certificates.
> Safety protection: over load, over voltage, short ciruict, open load protection.
Specifications
|
Input Rated Voltage :
|
100Vac~240Vac
|
|
Input Frequency Range:
|
47Hz~63Hz
|
|
Input Inrush Current :
|
0.8A max
|
|
Efficiency :
|
85%(MIN)at Rated Voltage
|
|
Output:
|
18.5V 4.6A
|
|
Output power :
|
85W
|
|
Ripple and Noise :
|
<150Mv at full road with 20MHz bandwidth
|
|
Turn On Delay Time:
|
<3S (AC:110V and full load)
|
|
Safety protection :
|
over voltage and current protection.
|
|
Leakage Current:
|
<5mA
|
|
Operating Temperature:
|
0°C----+60°C
|
|
Storage Temperature:
|
-20°C----+85°C
|
|
Certificate:
|
CE GS TUV UL/CUL FCC ROHS,SAA,PSE,C-TICK
|
|
Safety Standard :
|
EN60950-1 UL60950-1 ESD (EN61000 3-3)
CAS (60950 ITE/TE) FCC Part 15 subpart B Class B
AN/NZS CISPR 22:2006
|
Applications:
MacBook 13.3-inch 2.0GHz MB061LL/B
MacBook 13.3-inch 2.2GHz MB062LL/B
MacBook 13.3-inch 2.2GHz MB063LL/B
MacBook 13.3-inch 2.0GHz MB061LL/A
MacBook 13.3-inch 2.2GHz MB062LL/A
MacBook 13.3-inch 2.2GHz MB063LL/A
MacBook 13.3-inch 2.0GHz MA700LL/A
MacBook 13.3-inch 1.83GHz MA699LL/A
MacBook 13.3-inch 2.0GHz MA701LL/A
MacBook 13.3-inch 1.83GHz MA254LL/A
MacBook 13.3-inch 2GHz MA472LL/A
MacBook 13.3-inch 2GHz MA255LL/A
MacBook 13.3-inch Core Duo
MacBook 13.3-inch Late 2006 Core 2 Duo
MacBook 13.3-inch Santa Rosa Late 2007
MacBook 13.3-inch Core 2 Duo Mid 2007
INSTRUCTION:
- The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids,
such as vases, shall be placed on the apparatus.
- The mains plug is used as the disconnect device, the disconnect device shall be readily operable.
- The socket-outlet shall be installed near the equipment and shall be easily accessible.
- No naked flame source, such as lighted candles, should be placed on the apparatus.
- Maximum operating ambient for the equipment is 40℃.
- The apparatus should not be used in a confined space such as a bookcase.
- This appliance is not intended for use by persons (including children) with reduced physical,
sensory, or mental capacities, or lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a person responsible for their Safety.
- Children should be supervised to ensure that they do not play with the appliance.
Package information :
1. carton box dimension: 480*450*180mm
2. QTY: 50 pcs/carton
3. G.W: 11.5 KG
